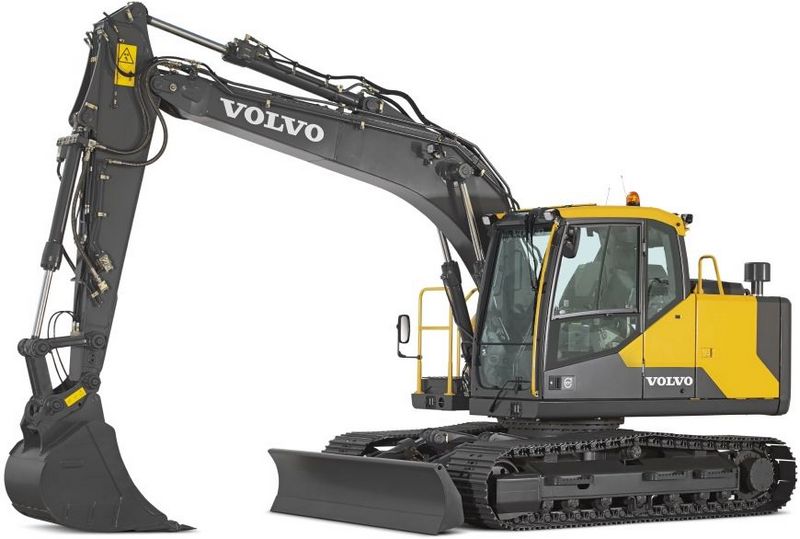

Volvo EC140E
Browse All Volvo or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Max Cutting Height | 26.65 ft in (8120 mm) |
| Max Vertical Wall Digging Depth | 13.03 ft in (3970 mm) |
| Max Digging Depth | 16.93 ft in (5160 mm) |
| Max.Dumping Height | 18.77 ft in (5720 mm) |
| Boom/Stick Option (Hex) 1 | Mono Boom - 4.6 m, 15.1 ft in / Arm - 2.1 m, 6.11 ft in |
| Max Digging Reach | 26.19 ft in (7980 mm) |
| Min.Front Swing Radius | 8.44 ft in (2570 mm) |
| Max Digging Reach On Ground | 25.73 ft in (7840 mm) |
Boom/Stick Option (Hex) 2
| Max Cutting Height | 27.43 ft in (8360 mm) |
| Max Vertical Wall Digging Depth | 14.21 ft in (4330 mm) |
| Max Digging Depth | 18.25 ft in (5560 mm) |
| Max Digging Reach On Ground | 26.97 ft in (8220 mm) |
| Boom/Stick Option (Hex) 2 | Mono Boom - 4.6 m, 15.1 ft in / Arm - 2.5 m, 8.2 ft in |
| Min.Front Swing Radius | 8.63 ft in (2630 mm) |
| Max.Dumping Height | 19.53 ft in (5950 mm) |
| Max Digging Reach | 27.43 ft in (8360 mm) |
Boom/Stick Option (Hex) 3
| Max Cutting Height | 28.58 ft in (8710 mm) |
| Max Vertical Wall Digging Depth | 15.98 ft in (4870 mm) |
| Max Digging Depth | 19.89 ft in (6060 mm) |
| Min.Front Swing Radius | 8.99 ft in (2740 mm) |
| Max Digging Reach On Ground | 28.61 ft in (8720 mm) |
| Boom/Stick Option (Hex) 3 | Mono Boom - 4.6 m, 15.1 ft in / Arm - 3.0 m, 9.10 ft in |
| Max.Dumping Height | 20.64 ft in (6290 mm) |
| Max Digging Reach | 29.04 ft in (8850 mm) |
Boom/Stick Option (Hex) 4
| Max Cutting Height | 30.42 ft in (9270 mm) |
| Max Digging Depth | 16.67 ft in (5080 mm) |
| Max.Dumping Height | 22.09 ft in (6730 mm) |
| Boom/Stick Option (Hex) 4 | 2- piece Boom - 4.6 m, 15.1 ft in / Arm - 2.1 m, 6.11 ft in |
| Min.Front Swing Radius | 5.71 ft in (1740 mm) |
| Max Digging Reach | 26.51 ft in (8080 mm) |
| Max Vertical Wall Dig Depth | 13.03 ft in (3970 mm) |
| Max Digging Reach On Ground | 26.02 ft in (7930 mm) |
Boom/Stick Option (Hex) 5
| Max Cutting Height | 31.6 ft in (9630 mm) |
| Max Digging Depth | 17.98 ft in (5480 mm) |
| Max - Dumping Height | 23.3 ft in (7100 mm) |
| Boom/Stick Option (Hex) 5 | 2- piece Boom - 4.6 m, 15.1 ft in / Arm - 2.5 m, 8.2 ft in |
| Max - Digging Reach | 27.76 ft in (8460 mm) |
| Max - Digging Reach On Ground | 27.3 ft in (8320 mm) |
| Max Vertical Wall Dig Depth | 14.24 ft in (4340 mm) |
| Min - Front Swing Radius | 6.53 ft in (1990 mm) |
Boom/Stick Option (Hex) 6
| Max Cutting Height | 33.17 ft in (10110 mm) |
| Max Digging Depth | 19.62 ft in (5980 mm) |
| Max - Digging Reach On Ground | 28.97 ft in (8830 mm) |
| Max - Digging Reach | 29.4 ft in (8960 mm) |
| Min - Front Swing Radius | 7.91 ft in (2410 mm) |
| Max Vertical Wall Dig Depth | 15.85 ft in (4830 mm) |
| Max - Dumping Height | 24.84 ft in (7570 mm) |
| Boom/Stick Option (Hex) 6 | 2- piece Boom - 4.6 m, 15.1 ft in / Arm - 3.0 m, 9.10 ft in |
Dimensions
| Tail Swing Radius | 7.22 ft in (2200 mm) |
| Counterweight Clearance | 3.02 ft in (920 mm) |
| Ground Clearance (Minimum) | 1.44 ft in (436 mm) |
| Track Length | 148.04 in (3760 mm) |
| Overall Length | 25.33 ft in (7720 mm) |
| Overall Width | 101.97 in (2590 mm) |
| Overall Width -Upper Structure | 8.17 ft in (2490 mm) |
| Shoe Width | 1.97 ft in (600 mm) |
| Overall Height (To Top Of Boom) | 8.93 ft in (2720 mm) |
| Overall Height (To Top Of Cab) | 9.19 ft in (2800 mm) |
Undercarriage
| Number Of Top Rollers Per Side | 2 x 2 |
| Shoe Width (Standard) | 35.44 in (900 mm) |
| Number Of Bottom Rollers Per Side | 2 x 7 |
| Link Pitch | 7.49 in (190 mm) |
Electrical System
| Alternator | 28/80 (V/Ah) |
| Voltage | 24 V V (deletedelete) |
| Batteries | 2 x 12 |
| Battery | 100 (Ah) |
Swing System
| Max - Slew Speed | 12.5 rpm |
| Max - Slew Torque | 38130 lb ft (51697.4 Nm) |
| Swing Reduction | 3.9 L,1 gal |
Engine
| Max Power | 2000 rpm |
| Number Of Cylinders | 4 |
| Rated Engine Speed | 1500 rpm |
| Engine Model | Volvo D4J |
| Gross Power | 120.7 hp (90 kw) |
| Net Power | 119.4 hp (89 kw) |
| Displacement | 246.6 cu in (4.1 L) |
| Bore | 4 in (101 mm) |
| Stroke | 5 in (126 mm) |
Capacities
| Travel Reduction | 1.2 gal (4.4 L) |
| Fuel Tank | 66.1 gal (250 L) |
| Hydraulic Tank | 22.5 gal (85 L) |
| Diesel Exhaust Fluid (Def) Tank | 22.5 gal (85 L) |
| Hydraulic System | 60.8 gal (230 L) |
| Engine Oil | 4.3 gal (16 L) |
| Engine Coolant | 7.4 gal (28 L) |
Performance
| Gradeability | 35 % |
| Travel Speed (Maximum) | 3.5 mph (5.6 km/h) |
| Drawbar Pull Force | 34171 lb (152 kN) |
Hydraulic System
| Power Boost | 5260 psi (36266.4 kPa) |
| Slew Circuit | 3840 psi (26475.9 kPa) |
| Main Pump - Maximum Flow | 80.4 gal/min (304 L/min) |
| Pilot Pump - Maximum Flow | 5.3 gal/min (20 L/min) |
| Implement | 4980 psi (34335.9 kPa) |
| Travel Circuit | 4980 psi (34335.9 kPa) |
| Main Pump Type | 2 x variable displacement axial piston pumps |
| Pilot Circuit | 570 psi (3930.1 kPa) |
