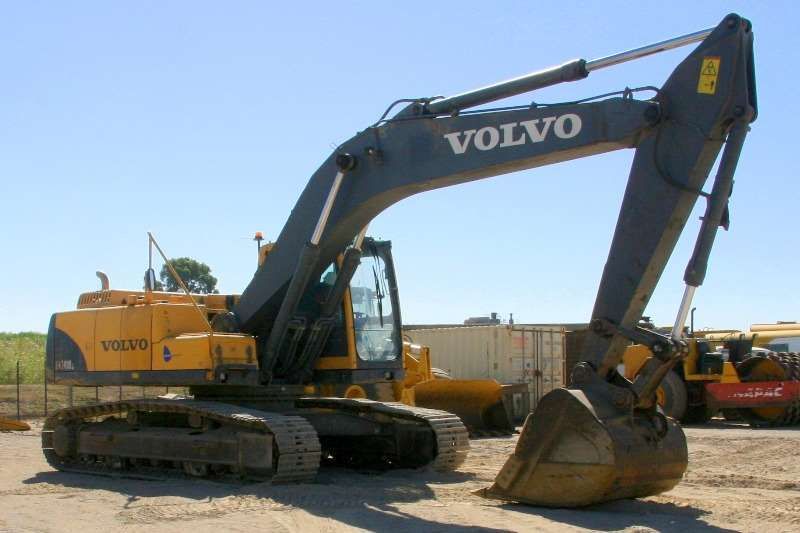

Volvo EC240B
Browse All Volvo or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 33.17 ft in (10110 mm) |
| Max Loading Height | 26.28 ft in (8010 mm) |
| Max Reach Along Ground | 31.86 ft in (9710 mm) |
| Max Digging Depth | 19.82 ft in (6040 mm) |
| Boom/Stick Option (Hex) 1 | standard |
Dimensions
| Ground Clearance | 1.55 ft in (470 mm) |
| Length Of Track On Ground | 12.64 ft in (3850 mm) |
| Tail Swing Radius | 9.65 ft in (2940 mm) |
Undercarriage
| Shoe Size | 23.63 in (600 mm) |
Engine
| Engine Make | 2244 |
| Gross Power | 179.7 hp (134 kw) |
Operational
| Operating Weight | 53351.9 lb (24200 kg) |
| Hydraulic System Relief Valve Pressure | 4974.8 psi (34300 kPa) |
| Hydraulic Pump Flow Capacity | 121.6 gal/min (460 L/min) |
