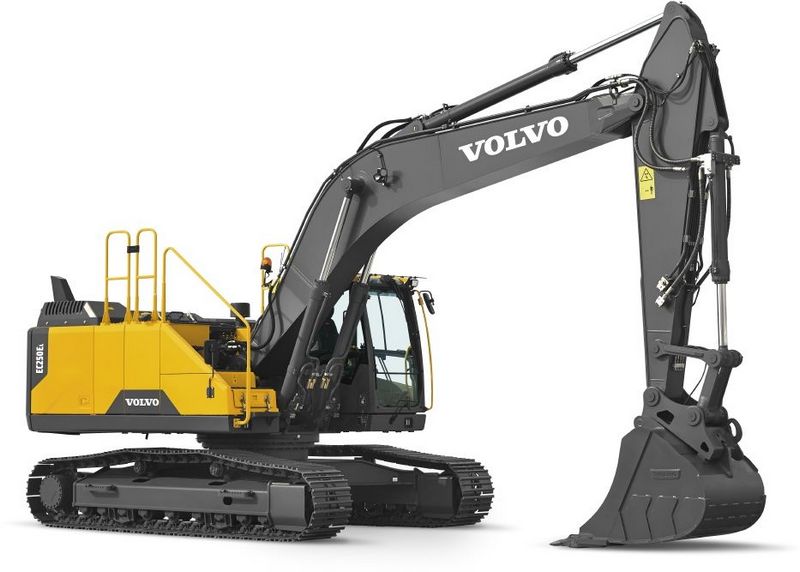

Volvo EC250E
Browse All Volvo or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Max Cutting Height | 31.57 ft in (9620 mm) |
| Max Vertical Wall Digging Depth | 19.03 ft in (5800 mm) |
| Max Digging Depth | 21.63 ft in (6590 mm) |
| Max.Dumping Height | 21.69 ft in (6610 mm) |
| Boom/Stick Option (Hex) 1 | Boom - 6.0 m, 19.8 ft in / Arm - 2.5 m, 8.2 ft in |
| Max Digging Reach On Ground | 32.06 ft in (9770 mm) |
| Max Digging Reach | 32.68 ft in (9960 mm) |
| Min.Front Swing Radius | 12.83 ft in (3910 mm) |
Boom/Stick Option (Hex) 2
| Max Cutting Height | 31.8 ft in (9690 mm) |
| Max Vertical Wall Digging Depth | 19.92 ft in (6070 mm) |
| Max Digging Depth | 23.17 ft in (7060 mm) |
| Boom/Stick Option (Hex) 2 | Boom - 6.0 m, 19.8 ft in / Arm - 2.97 m, 9.9 ft in |
| Max Digging Reach | 33.93 ft in (10340 mm) |
| Max Digging Reach On Ground | 33.34 ft in (10160 mm) |
| Max.Dumping Height | 22.02 ft in (6710 mm) |
| Min.Front Swing Radius | 12.77 ft in (3890 mm) |
Boom/Stick Option (Hex) 3
| Max Cutting Height | 31.67 ft in (9650 mm) |
| Max Vertical Wall Digging Depth | 20.97 ft in (6390 mm) |
| Max Digging Depth | 25.23 ft in (7690 mm) |
| Boom/Stick Option (Hex) 3 | Boom - 6.0 m, 19.8 ft in / Arm - 2.973.6 m, 11.10 ft in |
| Max Digging Reach | 35.47 ft in (10810 mm) |
| Max Digging Reach On Ground | 34.91 ft in (10640 mm) |
| Max.Dumping Height | 22.09 ft in (6730 mm) |
| Min.Front Swing Radius | 12.77 ft in (3890 mm) |
Dimensions
| Tail Swing Radius | 10.08 ft in (3070 mm) |
| Counterweight Clearance | 3.42 ft in (1040 mm) |
| Track Length | 183.08 in (4650 mm) |
| Shoe Width | 1.97 ft in (600 mm) |
| Ground Clearance (Minimum) | 1.55 ft in (470 mm) |
| Overall Height (To Top Of Boom) | 10.93 ft in (3330 mm) |
| Overall Height (To Top Of Cab) | 10.01 ft in (3050 mm) |
| Overall Length | 33.83 ft in (10310 mm) |
| Overall Width | 125.6 in (3190 mm) |
| Overall Width -Upper Structure | 9.49 ft in (2890 mm) |
Undercarriage
| Number Of Bottom Rollers Per Side | 2 x 9 |
| Link Pitch | 7.49 in (190 mm) |
| Shoe Width (Standard) | 27.56 in (700 mm) |
| Number Of Top Rollers Per Side | 2 x 2 |
Electrical System
| Alternator | 28/80 (V/A) |
| Voltage | 24 V V (deletedelete) |
| Batteries | 2 |
| Battery | 200 (Ah) |
Swing System
| Max - Slew Speed | 11.9 rpm |
| Max - Slew Torque | 67630 lb ft (91694 Nm) |
| Swing Reduction | 5.9 L, 1.6 gal |
Engine
| Max Power | 1800 rpm |
| Number Of Cylinders | 6 |
| Engine Model | Volvo D8J |
| Net Power | 213.3 hp (159 kw) |
| Gross Power | 214.6 hp (160 kw) |
| Max Torque | 819 lb ft (1110.5 Nm) |
| Displacement | 476 cu in (7.8 L) |
| Bore | 4.4 in (110 mm) |
| Stroke | 5.4 in (136 mm) |
Capacities
| Travel Reduction | 2.7 gal (10 L) |
| Fuel Tank | 124.2 gal (470 L) |
| Hydraulic Tank | 54.7 gal (207 L) |
| Diesel Exhaust Fluid (Def) Tank | 14.1 gal (53 L) |
| Hydraulic System | 84.6 gal (320 L) |
| Engine Oil | 8.5 gal (32 L) |
| Engine Coolant | 10.9 gal (41 L) |
Performance
| Gradeability | 35 % |
| Travel Speed (Maximum) | 3.5 mph (5.5 km/h) |
| Drawbar Pull Force | 48783.6 lb (217 kN) |
Hydraulic System
| Slew Circuit | 4050 psi (27923.8 kPa) |
| Main Pump - Maximum Flow | 126.9 gal/min (480 L/min) |
| Pilot Pump - Maximum Flow | 4.8 gal/min (18 L/min) |
| Implement | 5260 psi (36266.4 kPa) |
| Travel Circuit | 5260 psi (36266.4 kPa) |
| Pilot Circuit | 570 psi (3930.1 kPa) |
