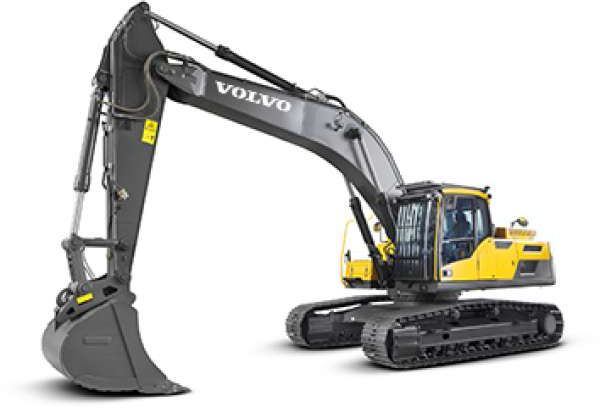

Volvo EC340D
Browse All Volvo or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 36.98 ft in (11270 mm) |
| Shipping Height Of Unit | 11.36 ft in (3460 mm) |
| Max Cutting Height | 33.37 ft in (10170 mm) |
| Max Loading Height | 23.27 ft in (7090 mm) |
| Max Reach Along Ground | 33.9 ft in (10330 mm) |
| Max Vertical Wall Digging Depth | 17.82 ft in (5430 mm) |
| Max Digging Depth | 22.48 ft in (6850 mm) |
| Boom/Stick Option (Hex) 1 | 21'2" (6450mm) boom / 8'6" (2600mm) stick |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 36.72 ft in (11190 mm) |
| Max Cutting Height | 33.93 ft in (10340 mm) |
| Shipping Height Of Unit | 10.54 ft in (3210 mm) |
| Max Loading Height | 23.89 ft in (7280 mm) |
| Max Reach Along Ground | 35.63 ft in (10860 mm) |
| Max Vertical Wall Digging Depth | 19.26 ft in (5870 mm) |
| Max Digging Depth | 24.45 ft in (7450 mm) |
| Boom/Stick Option (Hex) 2 | 21'2" (6450mm) Boom / 10'6" (3200mm) stick |
Boom/Stick Option (Hex) 3
| Shipping Length Of Unit | 36.88 ft in (11240 mm) |
| Max Cutting Height | 34.81 ft in (10610 mm) |
| Max Loading Height | 24.81 ft in (7560 mm) |
| Shipping Height Of Unit | 11.42 ft in (3480 mm) |
| Max Reach Along Ground | 37.8 ft in (11520 mm) |
| Max Vertical Wall Digging Depth | 21.33 ft in (6500 mm) |
| Max Digging Depth | 26.74 ft in (8150 mm) |
| Boom/Stick Option (Hex) 3 | 21'2" (6450mm) Boom / 12'10" (3900mm) stick |
Dimensions
| Ground Clearance | 1.76 ft in (536 mm) |
| Height To Top Of Cab | 10.59 ft in (3225 mm) |
| Width To Outside Of Tracks | 11.13 ft in (3390 mm) |
| Length Of Track On Ground | 13.92 ft in (4240 mm) |
| Tail Swing Radius | 11.68 ft in (3560 mm) |
| Removal Counterweight Clearance | 3.97 ft in (1210 mm) |
Undercarriage
| Track Gauge | 8.5 ft in (2590 mm) |
| Shoe Size | 23.63 in (600 mm) |
| Max Travel Speed | 3.3 mph (5.32 km/h) |
| Ground Pressure | 9.31 psi (64.13 kPa) |
| Number Of Shoes Per Side | 48 |
| Number Of Carrier Rollers Per Side | 2 |
| Number Of Track Rollers Per Side | 8 |
| Drawbar Pull | 62181 lb (276.6 kN) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2244 |
| Engine Model | D13H |
| Net Power | 283 hp (211.1 kw) |
| Gross Power | 293 hp (218.5 kw) |
| Power Measured @ | 1700 rpm |
| Max Torque | 1165.4 lb ft (1580 Nm) |
| Displacement | 781 cu in (12.8 L) |
| Aspiration | Turbocharged and Intercooled |
| Torque Measured @ | 1300 rpm |
Operational
| Operating Weight | 75260 lb (34137.4 kg) |
| Fuel Capacity | 163.8 gal (620 L) |
| Cooling System Fluid Capacity | 15.9 gal (60 L) |
| Hydraulic System Fluid Capacity | 132.1 gal (500 L) |
| Operating Voltage | 24 V |
| Engine Oil Capacity | 11.1 gal (42 L) |
| Alternator Supplied Amperage | 80 amps |
| Hydraulic System Relief Valve Pressure | 5120 psi (35301.2 kPa) |
| Hydraulic Pump Flow Capacity | 158.6 gal/min (600 L/min) |
Swing Mechanism
| Swing Speed | 10.2 rpm |
| Swing Torque | 87774 lb ft (119005.6 Nm) |
Buckets
| Reference Bucket Capacity | 2.8 yd3 (2.2 m3) |
| Maximum Bucket Capacity | 3.2 yd3 (2.5 m3) |
