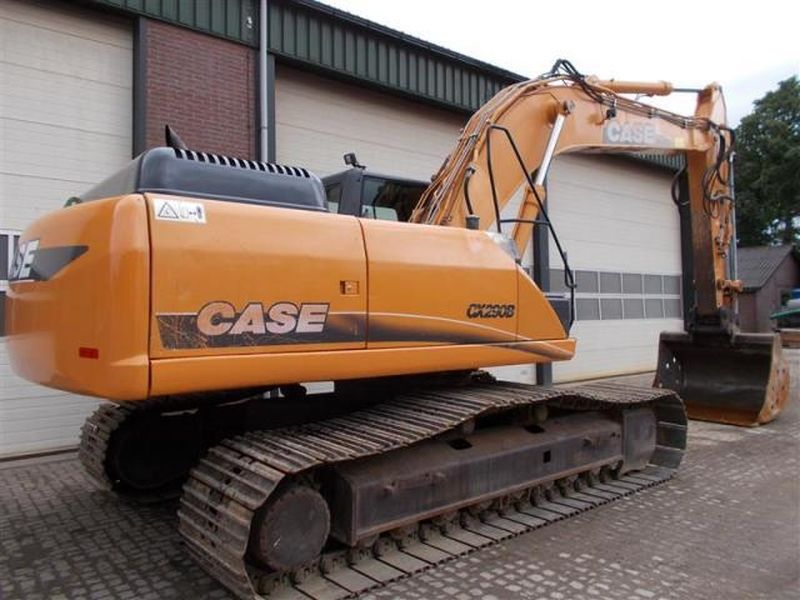

Case CX290B
Browse All Case or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 34.42 ft in (10470 mm) |
| Shipping Height Of Unit | 11.36 ft in (3460 mm) |
| Max Cutting Height | 34.08 ft in (10390 mm) |
| Max Loading Height | 24.17 ft in (7390 mm) |
| Max Reach Along Ground | 36.08 ft in (10990 mm) |
| Max Vertical Wall Digging Depth | 22 ft in (6720 mm) |
| Max Digging Depth | 24.92 ft in (7580 mm) |
| Boom/Stick Option (Hex) 1 | Boom 20'2" (6150mm)/ Stick 11'10" (3600 mm) |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 34.33 ft in (10450 mm) |
| Max Cutting Height | 33 ft in (10060 mm) |
| Shipping Height Of Unit | 10.7 ft in (3260 mm) |
| Max Loading Height | 23.25 ft in (7090 mm) |
| Max Reach Along Ground | 34.42 ft in (10500 mm) |
| Max Vertical Wall Digging Depth | 20.08 ft in (6120 mm) |
| Max Digging Depth | 23.33 ft in (7100 mm) |
| Boom/Stick Option (Hex) 2 | Boom 20'2" (6150mm)/ Stick 10'5" (31800 mm) |
Boom/Stick Option (Hex) 3
| Shipping Length Of Unit | 34.42 ft in (10480 mm) |
| Max Cutting Height | 32.58 ft in (9930 mm) |
| Max Loading Height | 22.83 ft in (6940 mm) |
| Shipping Height Of Unit | 10.96 ft in (3340 mm) |
| Max Reach Along Ground | 21.92 ft in (10040 mm) |
| Max Vertical Wall Digging Depth | 18.93 ft in (5760 mm) |
| Max Digging Depth | 21.58 ft in (6570 mm) |
| Boom/Stick Option (Hex) 3 | Boom 20'2" (6150mm)/ Stick 8'8" (2650 mm) |
Dimensions
| Ground Clearance | 19 ft in (470 mm) |
| Height To Top Of Cab | 10.08 ft in (3070 mm) |
| Width To Outside Of Tracks | 11.17 ft in (3400 mm) |
| Length Of Track On Ground | 13.08 ft in (3980 mm) |
| Tail Swing Radius | 10.33 ft in (3150 mm) |
| Removal Counterweight Clearance | 47 ft in (1190 mm) |
Undercarriage
| Track Gauge | 8.5 ft in (2590 mm) |
| Shoe Size | 31.5 in (800 mm) |
| Max Travel Speed | 3.5 mph (5.6 km/h) |
| Ground Pressure | 6.2 psi (42.75 kPa) |
| Number Of Shoes Per Side | 50 |
| Number Of Carrier Rollers Per Side | 2 |
| Number Of Track Rollers Per Side | 9 |
| Drawbar Pull | 52425 lb (233 kN) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2353 |
| Engine Model | 6HK1YSS, Tier III certified |
| Net Power | 207 hp (154 kw) |
| Power Measured @ | 1800 rpm |
| Max Torque | 627 lb ft (850.1 Nm) |
| Displacement | 475 cu in (7.8 L) |
| Aspiration | turbocharged |
| Torque Measured @ | 1500 rpm |
Operational
| Operating Weight | 65697 lb (29800 kg) |
| Fuel Capacity | 118.9 gal (450 L) |
| Cooling System Fluid Capacity | 7.7 gal (29 L) |
| Hydraulic System Fluid Capacity | 79.3 gal (300 L) |
| Operating Voltage | 24 V |
| Engine Oil Capacity | 10.1 gal (38 L) |
| Swing Drive Fluid Capacity | 1.6 gal (6 L) |
| Alternator Supplied Amperage | 50 amps |
| Hydraulic System Relief Valve Pressure | 4975 psi (34301.4 kPa) |
| Hydraulic Pump Flow Capacity | 64.2 gal/min (243 L/min) |
Swing Mechanism
| Swing Speed | 10.2 rpm |
Buckets
| Minimum Bucket Capacity | 0.8 yd3 (0.6 m3) |
| Maximum Bucket Capacity | 2.2 yd3 (1.7 m3) |
