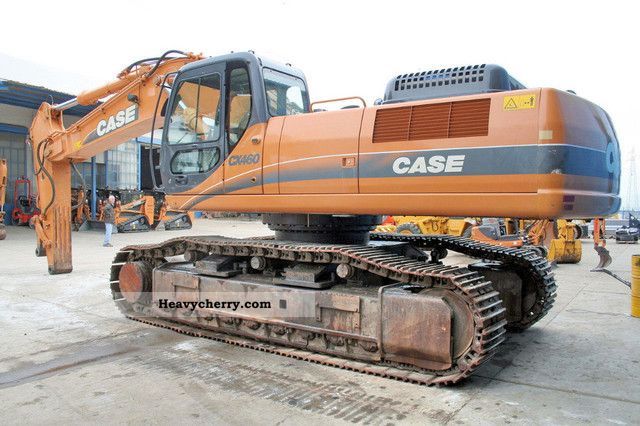

Case CX460
Browse All Case or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 39.08 ft in (11920 mm) |
| Shipping Height Of Unit | 11.82 ft in (3600 mm) |
| Max Cutting Height | 37.17 ft in (11340 mm) |
| Max Loading Height | 26.08 ft in (7940 mm) |
| Max Reach Along Ground | 40.42 ft in (12330 mm) |
| Max Vertical Wall Digging Depth | 23.5 ft in (7160 mm) |
| Max Digging Depth | 27.33 ft in (8340 mm) |
| Boom/Stick Option (Hex) 1 | Boom 22'11" (6980mm)/ Stick 13'1" (4000 mm) |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 39.16 ft in (11940 mm) |
| Max Cutting Height | 36.58 ft in (11140 mm) |
| Shipping Height Of Unit | 11.82 ft in (3600 mm) |
| Max Loading Height | 25.42 ft in (7740 mm) |
| Max Reach Along Ground | 38.58 ft in (11770 mm) |
| Max Vertical Wall Digging Depth | 24.58 ft in (6570 mm) |
| Max Digging Depth | 25.33 ft in (7720 mm) |
| Boom/Stick Option (Hex) 2 | Boom 22'11" (6980mm)/ Stick 11'1" (3380 mm) |
Boom/Stick Option (Hex) 3
| Shipping Length Of Unit | 39.33 ft in (11990 mm) |
| Max Cutting Height | 35.5 ft in (10820 mm) |
| Max Loading Height | 24.33 ft in (7420 mm) |
| Shipping Height Of Unit | 12.05 ft in (3670 mm) |
| Max Reach Along Ground | 36.08 ft in (10990 mm) |
| Max Vertical Wall Digging Depth | 18.58 ft in (5670 mm) |
| Max Digging Depth | 22.5 ft in (6870 mm) |
| Boom/Stick Option (Hex) 3 | Boom 22'11" (6980mm)/ Stick 8'4" (2530 mm) |
Dimensions
| Ground Clearance | 21 ft in (540 mm) |
| Height To Top Of Cab | 10.75 ft in (3270 mm) |
| Width To Outside Of Tracks | 12 ft in (3650 mm) |
| Length Of Track On Ground | 14.42 ft in (4400 mm) |
| Tail Swing Radius | 11.92 ft in (3620 mm) |
| Removal Counterweight Clearance | 52 ft in (1330 mm) |
Undercarriage
| Track Gauge | 9.03 ft in (2750 mm) |
| Shoe Size | 35.44 in (900 mm) |
| Max Travel Speed | 3.3 mph (5.3 km/h) |
| Ground Pressure | 7.8 psi (53.78 kPa) |
| Number Of Shoes Per Side | 50 |
| Number Of Carrier Rollers Per Side | 2 |
| Number Of Track Rollers Per Side | 9 |
| Drawbar Pull | 78908 lb (351 kN) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2353 |
| Engine Model | AH-6UZ1XYSS, Tier III certified |
| Net Power | 362 hp (270 kw) |
| Power Measured @ | 1950 rpm |
| Max Torque | 1058 lb ft (1434.5 Nm) |
| Displacement | 600 cu in (9.9 L) |
| Aspiration | turbocharged |
| Torque Measured @ | 1500 rpm |
Operational
| Operating Weight | 102974 lb (46708 kg) |
| Fuel Capacity | 161 gal (610 L) |
| Cooling System Fluid Capacity | 10 gal (38 L) |
| Hydraulic System Fluid Capacity | 122 gal (460 L) |
| Operating Voltage | 24 V |
| Engine Oil Capacity | 9.5 gal (36 L) |
| Swing Drive Fluid Capacity | 2.8 gal (10.5 L) |
| Alternator Supplied Amperage | 50 amps |
| Hydraulic System Relief Valve Pressure | 4554 psi (31398.7 kPa) |
| Hydraulic Pump Flow Capacity | 190.3 gal/min (720 L/min) |
Swing Mechanism
| Swing Speed | 9 rpm |
Buckets
| Reference Bucket Capacity | 2.9 yd3 (2.2 m3) |
| Minimum Bucket Capacity | 1.8 yd3 (1.4 m3) |
| Maximum Bucket Capacity | 4.1 yd3 (3.1 m3) |
