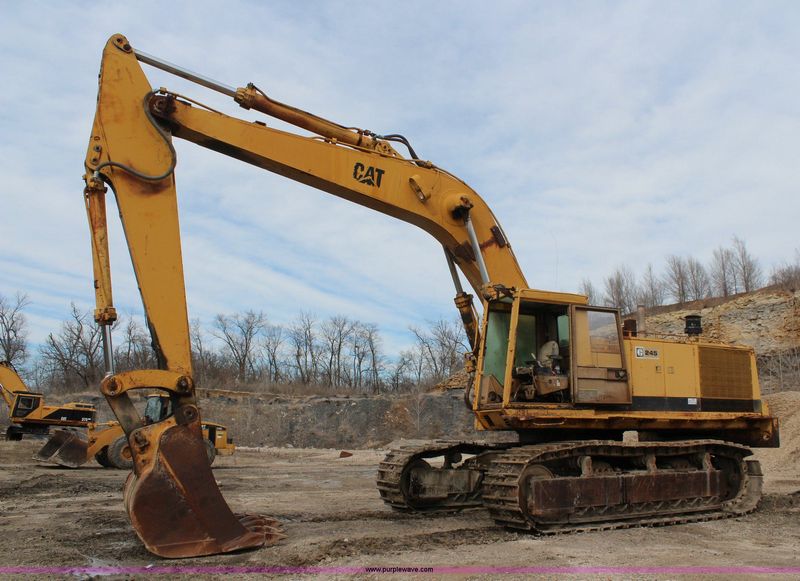

Caterpillar 245
Browse All Caterpillar or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 44.33 ft in (13510 mm) |
| Shipping Height Of Unit | 15.09 ft in (4597 mm) |
| Max Loading Height | 26.34 ft in (8026 mm) |
| Max Reach Along Ground | 40.92 ft in (12471 mm) |
| Max Vertical Wall Digging Depth | 17.42 ft in (5309 mm) |
| Max Digging Depth | 25.84 ft in (7874 mm) |
| Boom/Stick Option (Hex) 1 | boom w/ stick 2591mm |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 43.25 ft in (13180 mm) |
| Shipping Height Of Unit | 15.09 ft in (4597 mm) |
| Max Loading Height | 23.84 ft in (7264 mm) |
| Max Reach Along Ground | 41.84 ft in (12751 mm) |
| Max Vertical Wall Digging Depth | 14.76 ft in (4496 mm) |
| Max Digging Depth | 27.84 ft in (8484 mm) |
| Boom/Stick Option (Hex) 2 | boom w/ stick 3200mm |
Boom/Stick Option (Hex) 3
| Shipping Length Of Unit | 42.1 ft in (12830 mm) |
| Max Loading Height | 26.09 ft in (7950 mm) |
| Shipping Height Of Unit | 18 ft in (5486 mm) |
| Max Reach Along Ground | 46.01 ft in (14021 mm) |
| Max Vertical Wall Digging Depth | 21.42 ft in (6528 mm) |
| Max Digging Depth | 31.84 ft in (9703 mm) |
| Boom/Stick Option (Hex) 3 | boom w/ stick 4420mm |
Dimensions
| Ground Clearance | 2.5 ft in (762 mm) |
| Height To Top Of Cab | 11.84 ft in (3607 mm) |
| Width To Outside Of Tracks | 11.84 ft in (3607 mm) |
| Removal Counterweight Clearance | 3.51 ft in (1067 mm) |
Undercarriage
| Track Gauge | 9.32 ft in (2840 mm) |
| Shoe Size | 30 in (762 mm) |
| Ground Pressure | 11.9 psi (82.05 kPa) |
| Max Travel Speed | 1.9 mph (3.06 km/h) |
| Number Of Shoes Per Side | 45 |
| Drawbar Pull | 98600 lb (438.6 kN) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2236 |
| Engine Model | 3406 |
| Net Power | 325 hp (242.4 kw) |
| Power Measured @ | 2100 rpm |
| Displacement | 891 cu in (14.6 L) |
| Aspiration | turbocharged |
Operational
| Operating Weight | 133485.5 lb (60548 kg) |
| Fuel Capacity | 157.8 gal (597 L) |
| Cooling System Fluid Capacity | 20.5 gal (77.6 L) |
| Hydraulic System Fluid Capacity | 192.6 gal (729 L) |
| Engine Oil Capacity | 9.6 gal (36 L) |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 9.3 gal (35 L) |
| Alternator Supplied Amperage | 35 amps |
| Hydraulic System Relief Valve Pressure | 4500 psi (31026.4 kPa) |
| Hydraulic Pump Flow Capacity | 236.2 gal/min (894 L/min) |
Swing Mechanism
| Swing Speed | 4.8 rpm |
Buckets
| Reference Bucket Capacity | 2.5 yd3 (2 m3) |
| Minimum Bucket Capacity | 2 yd3 (1.6 m3) |
| Maximum Bucket Capacity | 3.8 yd3 (2.9 m3) |
