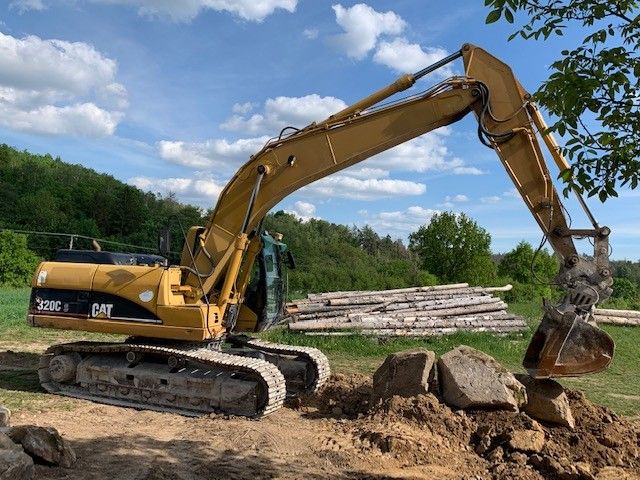

Caterpillar 320C S
Browse All Caterpillar or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 33.1 ft in (10087 mm) |
| Shipping Height Of Unit | 10.13 ft in (3087 mm) |
| Max Cutting Height | 35.86 ft in (10930 mm) |
| Max Loading Height | 25.46 ft in (7760 mm) |
| Max Reach Along Ground | 30.65 ft in (9340 mm) |
| Max Vertical Wall Digging Depth | 10.54 ft in (3210 mm) |
| Max Digging Depth | 13.42 ft in (4090 mm) |
| Boom/Stick Option (Hex) 1 | boom w/ stick R1.9C 1900mm |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 31.89 ft in (9719 mm) |
| Max Cutting Height | 37.18 ft in (11330 mm) |
| Shipping Height Of Unit | 10.13 ft in (3087 mm) |
| Max Loading Height | 28.22 ft in (8600 mm) |
| Max Reach Along Ground | 32.19 ft in (9810 mm) |
| Max Vertical Wall Digging Depth | 12.11 ft in (3690 mm) |
| Max Digging Depth | 14.87 ft in (4530 mm) |
| Boom/Stick Option (Hex) 2 | boom w/ stick R2.5B 2500mm |
Boom/Stick Option (Hex) 3
| Shipping Length Of Unit | 31.85 ft in (9706 mm) |
| Max Cutting Height | 38.36 ft in (11690 mm) |
| Max Loading Height | 29.37 ft in (8950 mm) |
| Shipping Height Of Unit | 29.82 ft in (9087 mm) |
| Max Reach Along Ground | 33.54 ft in (10220 mm) |
| Max Vertical Wall Digging Depth | 13.42 ft in (4090 mm) |
| Max Digging Depth | 16.25 ft in (4950 mm) |
| Boom/Stick Option (Hex) 3 | boom w/ stick R2.9B 2900mm |
Boom/Stick Option (Hex) 4
| Shipping Length Of Unit | 30.88 ft in (9410 mm) |
| Shipping Height Of Unit | 13.13 ft in (4000 mm) |
| Max Cutting Height | 40.88 ft in (12460 mm) |
| Max Loading Height | 31.8 ft in (9690 mm) |
| Max Reach Along Ground | 36.52 ft in (11130 mm) |
| Max Digging Depth | 19.33 ft in (5890 mm) |
| Boom/Stick Option (Hex) 4 | boom w/ stick R3.9B 3900mm |
| Max Vertical Wall Dig Depth | 16.38 ft in (4990 mm) |
Dimensions
| Ground Clearance | 1.51 ft in (460 mm) |
| Height To Top Of Cab | 9.68 ft in (2950 mm) |
| Width To Outside Of Tracks | 8.21 ft in (2500 mm) |
| Length Of Track On Ground | 11.46 ft in (3490 mm) |
| Tail Swing Radius | 9.09 ft in (2770 mm) |
Undercarriage
| Track Gauge | 6.24 ft in (1900 mm) |
| Shoe Size | 21.66 in (550 mm) |
| Drawbar Pull | 44062.56 lb (196 kN) |
Engine
| Engine Make | 2236 |
| Engine Model | ATAAC engine 3066 |
| Gross Power | 138 hp (103 kw) |
Operational
| Operating Weight | 50794.6 lb (23040 kg) |
Buckets
| Reference Bucket Capacity | 1.1 yd3 (0.8 m3) |
| Minimum Bucket Capacity | 0.6 yd3 (0.5 m3) |
| Maximum Bucket Capacity | 0.8 yd3 (0.7 m3) |
