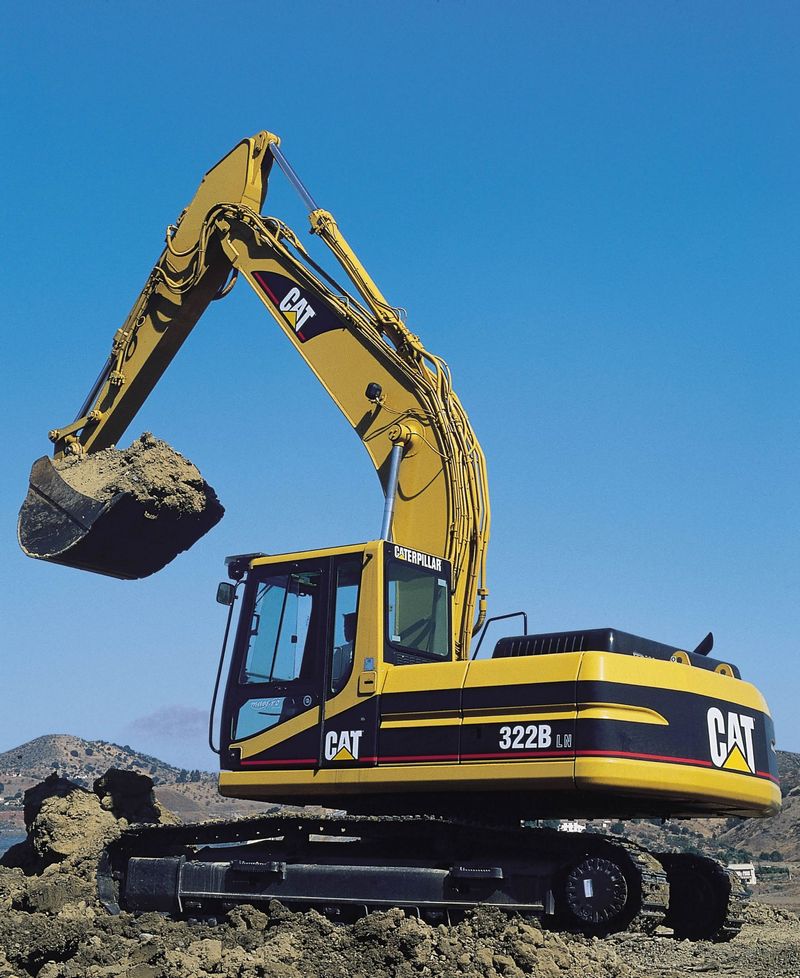

Caterpillar 322B L
Browse All Caterpillar or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 32.68 ft in (9960 mm) |
| Shipping Height Of Unit | 10.24 ft in (3120 mm) |
| Max Cutting Height | 31.76 ft in (9680 mm) |
| Max Loading Height | 22.09 ft in (6730 mm) |
| Max Reach Along Ground | 32.85 ft in (10010 mm) |
| Max Vertical Wall Digging Depth | 18.71 ft in (5700 mm) |
| Max Digging Depth | 22.02 ft in (6710 mm) |
| Boom/Stick Option (Hex) 1 | Boom 19'4" (5900mm) / Stick 9'8" (2950mm) |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 32.85 ft in (10010 mm) |
| Max Cutting Height | 31.11 ft in (9480 mm) |
| Shipping Height Of Unit | 10.77 ft in (3280 mm) |
| Max Loading Height | 21.46 ft in (6540 mm) |
| Max Reach Along Ground | 31.47 ft in (9590 mm) |
| Max Vertical Wall Digging Depth | 17.26 ft in (5260 mm) |
| Max Digging Depth | 20.54 ft in (6260 mm) |
| Boom/Stick Option (Hex) 2 | Boom 19'4" (5900mm) / Stick 8'2" (2500mm) |
Boom/Stick Option (Hex) 3
| Shipping Length Of Unit | 30.84 ft in (9400 mm) |
| Max Cutting Height | 30.06 ft in (9160 mm) |
| Max Loading Height | 19.62 ft in (5980 mm) |
| Shipping Height Of Unit | 11.32 ft in (3450 mm) |
| Max Reach Along Ground | 29.93 ft in (9120 mm) |
| Max Vertical Wall Digging Depth | 17 ft in (5180 mm) |
| Max Digging Depth | 19.39 ft in (5910 mm) |
| Boom/Stick Option (Hex) 3 | Mass Boom 17'5" (5300mm) / Stick 8'2" (2500mm) |
Dimensions
| Ground Clearance | 1.55 ft in (470 mm) |
| Height To Top Of Cab | 9.78 ft in (2980 mm) |
| Width To Outside Of Tracks | 10.47 ft in (3190 mm) |
| Length Of Track On Ground | 12.57 ft in (3830 mm) |
| Tail Swing Radius | 9.52 ft in (2900 mm) |
| Removal Counterweight Clearance | 3.58 ft in (1090 mm) |
Undercarriage
| Track Gauge | 8.5 ft in (2590 mm) |
| Shoe Size | 31.5 in (800 mm) |
| Drawbar Pull | 43612.94 lb (194 kN) |
| Max Travel Speed | 3.42 mph (5.5 km/h) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2236 |
| Engine Model | 3116TA |
| Net Power | 153 hp (114.1 kw) |
| Gross Power | 161 hp (120.1 kw) |
| Power Measured @ | 1950 rpm |
| Aspiration | Turbocharged and Aftercooled |
| Displacement | 403 cu in (6.7 L) |
| Bore | 4.2 in (105 mm) |
| Stroke | 5 in (127 mm) |
| Net Power - Iso 9249 | 153 hp (114.1 kw) |
| Net Power - Sae J1349 | 153 hp (114.1 kw) |
| Engine Model | Cat 3116TA |
| Net Power - Eec 80/1269 | 153 hp (114.1 kw) |
| Net Flywheel Power | 153 hp (114.1 kw) |
Operational
| Operating Weight | 50177.3 lb (22760 kg) |
| Fuel Capacity | 89.9 gal (340 L) |
| Cooling System Fluid Capacity | 8.4 gal (31.5 L) |
| Hydraulic System Fluid Capacity | 70.1 gal (265 L) |
| Engine Oil Capacity | 5.7 gal (21.5 L) |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 2.2 gal (8 L) |
| Alternator Supplied Amperage | 55 amps |
| Hydraulic System Relief Valve Pressure | 4980 psi (34335.9 kPa) |
| Hydraulic Pump Flow Capacity | 108.4 gal/min (410 L/min) |
Swing Mechanism
| Swing Torque | 51850 lb ft (70299.2 Nm) |
Weights
| Operating Weight - Standard Undercarriage | 50160 lb (22752.2 kg) |
Buckets
| Reference Bucket Capacity | 1.4 yd3 (1.1 m3) |
| Minimum Bucket Capacity | 1.3 yd3 (1 m3) |
| Maximum Bucket Capacity | 2 yd3 (1.6 m3) |
Hydraulic System
| Pilot System - Maximum Flow | 10.3 gal/min |
| Pilot System - Maximum Pressure | 600 psi |
| Maximum Pressure - Travel | 4980 psi |
| Maximum Pressure - Swing | 3980 psi |
| Main Implement System - Maximum Flow (2x) | 54.2 gal/min |
| Boom Cylinder - Bore | 5.1 in (129.6 mm) |
| Boom Cylinder - Stroke | 51.4 in (1305.6 mm) |
| Maximum Pressure - Equipment | 4980 psi |
| B1 Family Bucket Cylinder - Bore | 4.7 in (119.4 mm) |
| B1 Family Bucket Cylinder - Stroke | 40.6 in (1031.3 mm) |
Service Refill Capacities
| Cooling System | 8.3 gal (31.5 L) |
| Final Drive - Each | 2.6 gal (9.9 L) |
| Hydraulic System - Including Tank | 70 gal (265 L) |
| Engine Oil | 5.7 gal (21.6 L) |
| Fuel Tank Capacity | 90 gal (340.7 L) |
| Swing Drive | 2.6 gal (9.9 L) |
Track
| Standard With Standard Undercarriage | 24 in (609.6 mm) |
| Optional (1) | 24 in (609.6 mm) |
| Optional (2) | 28 in (711.2 mm) |
| Optional (3) | 32 in (812.8 mm) |
| Standard With Long Undercarriage - Triple Grouser | 32 in (812.8 mm) |
Drive
| Maximum Travel Speed | 3.4 mph (5.5 km/h) |
| Maximum Drawbar Pull | 43612 lb (19782.1 kg) |
