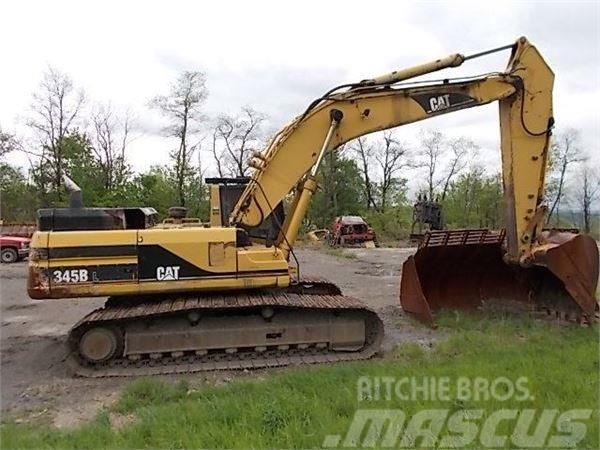

Caterpillar 345B
Browse All Caterpillar or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 38.49 ft in (11730 mm) |
| Shipping Height Of Unit | 11.42 ft in (3480 mm) |
| Max Cutting Height | 35.5 ft in (10820 mm) |
| Max Loading Height | 6.96 ft in (2120 mm) |
| Max Reach Along Ground | 40.03 ft in (12200 mm) |
| Max Vertical Wall Digging Depth | 21.4 ft in (6520 mm) |
| Max Digging Depth | 27.17 ft in (8280 mm) |
| Boom/Stick Option (Hex) 1 | reach boom w/ stick 3900mm |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 38.49 ft in (11730 mm) |
| Max Cutting Height | 35.37 ft in (10780 mm) |
| Shipping Height Of Unit | 11.42 ft in (3480 mm) |
| Max Loading Height | 9.13 ft in (2780 mm) |
| Max Reach Along Ground | 38.26 ft in (11660 mm) |
| Max Vertical Wall Digging Depth | 21.53 ft in (6560 mm) |
| Max Digging Depth | 25.04 ft in (7630 mm) |
| Boom/Stick Option (Hex) 2 | reach boom w/ stick 3350mm |
Boom/Stick Option (Hex) 3
| Shipping Length Of Unit | 38.49 ft in (11730 mm) |
| Max Cutting Height | 34.78 ft in (10600 mm) |
| Max Loading Height | 10.44 ft in (3180 mm) |
| Shipping Height Of Unit | 11.42 ft in (3480 mm) |
| Max Reach Along Ground | 37.05 ft in (11290 mm) |
| Max Vertical Wall Digging Depth | 18.8 ft in (5730 mm) |
| Max Digging Depth | 23.73 ft in (7230 mm) |
| Boom/Stick Option (Hex) 3 | reach boom w/ stick 2900mm |
Boom/Stick Option (Hex) 4
| Shipping Length Of Unit | 37.34 ft in (11380 mm) |
| Shipping Height Of Unit | 12.08 ft in (3680 mm) |
| Max Cutting Height | 33.7 ft in (10270 mm) |
| Max Loading Height | 9.16 ft in (2790 mm) |
| Max Reach Along Ground | 36.16 ft in (11020 mm) |
| Max Digging Depth | 23.23 ft in (7080 mm) |
| Max Vertical Wall Dig Depth | 18.48 ft in (5630 mm) |
| Boom/Stick Option (Hex) 4 | mass boom w/ stick 3000mm |
Boom/Stick Option (Hex) 5
| Shipping Length Of Unit | 37.34 ft in (11380 mm) |
| Shipping Height Of Unit | 12.08 ft in (3680 mm) |
| Max Cutting Height | 33.34 ft in (10160 mm) |
| Max Loading Height | 10.47 ft in (3190 mm) |
| Max Reach Along Ground | 34.98 ft in (10660 mm) |
| Max Digging Depth | 21.92 ft in (6680 mm) |
| Max Vertical Wall Dig Depth | 16.38 ft in (4990 mm) |
| Boom/Stick Option (Hex) 5 | mass bomo w/ stick 2500mm |
Dimensions
| Ground Clearance | 1.68 ft in (510 mm) |
| Height To Top Of Cab | 10.44 ft in (3180 mm) |
| Width To Outside Of Tracks | 10.96 ft in (3340 mm) |
| Length Of Track On Ground | 13.23 ft in (4030 mm) |
| Tail Swing Radius | 11.85 ft in (3610 mm) |
| Removal Counterweight Clearance | 4.24 ft in (1290 mm) |
Undercarriage
| Track Gauge | 8.99 ft in (2740 mm) |
| Shoe Size | 23.63 in (600 mm) |
| Drawbar Pull | 72400 lb (322.06 kN) |
| Max Travel Speed | 2.74 mph (4.41 km/h) |
Engine
| Engine Make | 2236 |
| Engine Model | 3176CATAAC |
| Gross Power | 290 hp (216.3 kw) |
| Displacement | 628.6 cu in (10.3 L) |
Operational
| Operating Weight | 94798.8 lb (43000 kg) |
| Fuel Capacity | 158.6 gal (600 L) |
| Hydraulic System Relief Valve Pressure | 4980 psi (34335.9 kPa) |
| Hydraulic Pump Flow Capacity | 169.1 gal/min (640 L/min) |
