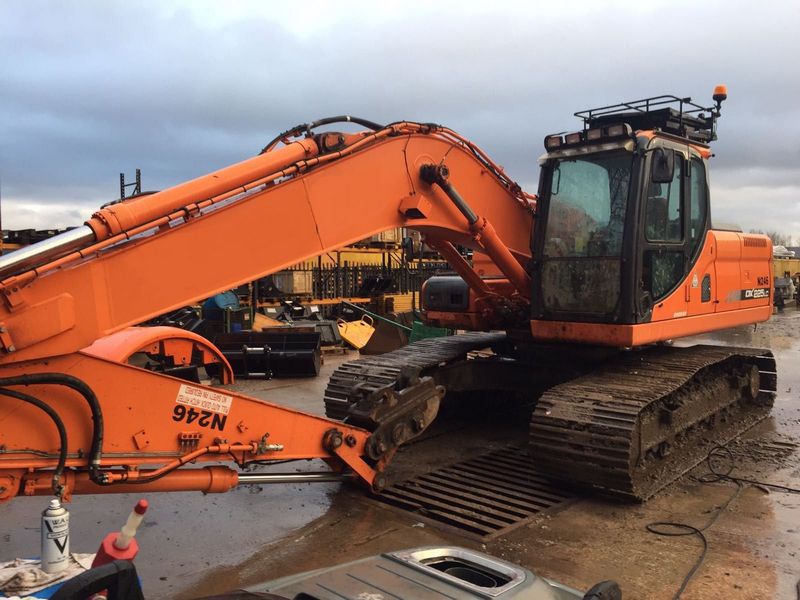

Doosan DX225LC
Browse All Doosan or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 10 ft in (3045 mm) |
| Shipping Height Of Unit | 10.21 ft in (3110 mm) |
| Max Cutting Height | 31.6 ft in (9630 mm) |
| Max Loading Height | 22.41 ft in (6830 mm) |
| Max Reach Along Ground | 30.52 ft in (9300 mm) |
| Max Vertical Wall Digging Depth | 17.69 ft in (5390 mm) |
| Max Digging Depth | 20.05 ft in (6110 mm) |
| Boom/Stick Option (Hex) 1 | Boom 18'8" (5700mm)/Stick 7'10" (2400mm) |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 31.12 ft in (9485 mm) |
| Max Cutting Height | 31.99 ft in (9750 mm) |
| Shipping Height Of Unit | 9.86 ft in (3005 mm) |
| Max Loading Height | 22.94 ft in (6990 mm) |
| Max Reach Along Ground | 31.93 ft in (9730 mm) |
| Max Vertical Wall Digging Depth | 18.51 ft in (5640 mm) |
| Max Digging Depth | 21.72 ft in (6620 mm) |
| Boom/Stick Option (Hex) 2 | Boom 18'8" (5700mm)/Stick 9'6" (2900mm) |
Boom/Stick Option (Hex) 3
| Shipping Length Of Unit | 31.17 ft in (9500 mm) |
| Max Cutting Height | 32.39 ft in (9870 mm) |
| Max Loading Height | 23.46 ft in (7150 mm) |
| Shipping Height Of Unit | 10.8 ft in (3290 mm) |
| Max Reach Along Ground | 33.57 ft in (10230 mm) |
| Max Vertical Wall Digging Depth | 19.72 ft in (6010 mm) |
| Max Digging Depth | 23.69 ft in (7220 mm) |
| Boom/Stick Option (Hex) 3 | Boom 18'8" (5700mm)/Stick 11'6" (3500mm) |
Boom/Stick Option (Hex) 4
| Shipping Length Of Unit | 29.79 ft in (9080 mm) |
| Shipping Height Of Unit | 10.54 ft in (3210 mm) |
| Max Cutting Height | 29.02 ft in (8845 mm) |
| Max Loading Height | 19.97 ft in (6085 mm) |
| Max Reach Along Ground | 27.5 ft in (8380 mm) |
| Max Digging Depth | 17.57 ft in (5355 mm) |
| Max Vertical Wall Dig Depth | 14.56 ft in (4435 mm) |
| Boom/Stick Option (Hex) 4 | Boom 17'1" (5200mm)/Stick 6'7" (2000mm) |
Boom/Stick Option (Hex) 5
| Shipping Length Of Unit | 29.5 ft in (8990 mm) |
| Shipping Height Of Unit | 10.01 ft in (3050 mm) |
| Max Cutting Height | 29.75 ft in (9065 mm) |
| Max Loading Height | 20.67 ft in (6300 mm) |
| Max Reach Along Ground | 28.75 ft in (8760 mm) |
| Max Digging Depth | 18.89 ft in (5755 mm) |
| Max Vertical Wall Dig Depth | 16.02 ft in (4880 mm) |
| Boom/Stick Option (Hex) 5 | Boom 17'1" (5200mm)/Stick 7'11" (2400mm) |
Dimensions
| Ground Clearance | 1.58 ft in (480 mm) |
| Height To Top Of Cab | 9.77 ft in (2975 mm) |
| Width To Outside Of Tracks | 9.81 ft in (2990 mm) |
| Length Of Track On Ground | 11.98 ft in (3650 mm) |
| Tail Swing Radius | 9.03 ft in (2750 mm) |
| Removal Counterweight Clearance | 3.47 ft in (1055 mm) |
Undercarriage
| Shoe Size | 23.63 in (600 mm) |
| Ground Pressure | 6.4 psi (44.13 kPa) |
| Max Travel Speed | 3.4 mph (5.48 km/h) |
| Number Of Track Rollers Per Side | 9 |
| Number Of Shoes Per Side | 49 |
| Number Of Carrier Rollers Per Side | 2 |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2252 |
| Engine Model | DL06 |
| Gross Power | 155 hp (115.6 kw) |
| Net Power | 148 hp (110.4 kw) |
| Power Measured @ | 1900 rpm |
| Max Torque | 492 lb ft (667 Nm) |
| Displacement | 359 cu in (5.9 L) |
| Aspiration | turbo charged with air to air intercooler |
| Torque Measured @ | 1400 rpm |
Operational
| Operating Weight | 47399.4 lb (21500 kg) |
| Fuel Capacity | 105.7 gal (400 L) |
| Cooling System Fluid Capacity | 6.4 gal (24 L) |
| Hydraulic System Fluid Capacity | 87.2 gal (330 L) |
| Operating Voltage | 24 V |
| Engine Oil Capacity | 7.2 gal (27 L) |
| Swing Drive Fluid Capacity | 1.4 gal (5 L) |
| Alternator Supplied Amperage | 50 amps |
| Hydraulic System Relief Valve Pressure | 4699.3 psi (32400 kPa) |
| Hydraulic Pump Flow Capacity | 109.2 gal/min (413 L/min) |
Swing Mechanism
| Swing Speed | 11 rpm |
Buckets
| Reference Bucket Capacity | 1.3 yd3 (1 m3) |
| Minimum Bucket Capacity | 0.7 yd3 (0.6 m3) |
| Maximum Bucket Capacity | 1.7 yd3 (1.3 m3) |
