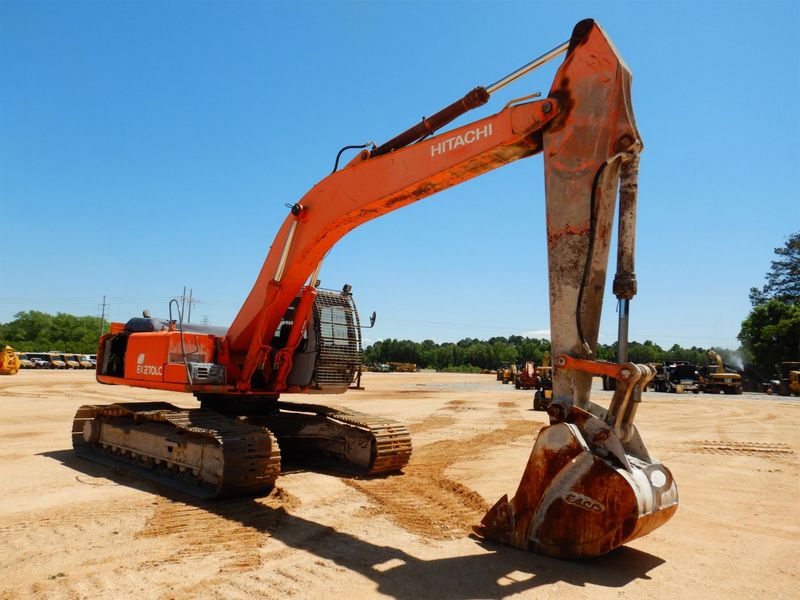

Hitachi EX270LC-5
Browse All Hitachi or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 34.03 ft in (10370 mm) |
| Shipping Height Of Unit | 11.23 ft in (3420 mm) |
| Max Cutting Height | 31.63 ft in (9640 mm) |
| Max Loading Height | 22.15 ft in (6750 mm) |
| Max Reach Along Ground | 32.35 ft in (9860 mm) |
| Max Vertical Wall Digging Depth | 17.33 ft in (5280 mm) |
| Max Digging Depth | 21.46 ft in (6540 mm) |
| Boom/Stick Option (Hex) 1 | Boom 20'4" (6200mm) / Stick 7'10" (2400mm) |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 33.76 ft in (10290 mm) |
| Max Cutting Height | 32.75 ft in (9980 mm) |
| Shipping Height Of Unit | 10.41 ft in (3170 mm) |
| Max Loading Height | 23.2 ft in (7070 mm) |
| Max Reach Along Ground | 34.52 ft in (10520 mm) |
| Max Vertical Wall Digging Depth | 20.05 ft in (6110 mm) |
| Max Digging Depth | 23.73 ft in (7230 mm) |
| Boom/Stick Option (Hex) 2 | Boom 20'4" (6200mm) / Stick 10'2" (3100mm) |
Boom/Stick Option (Hex) 3
| Shipping Length Of Unit | 33.83 ft in (10310 mm) |
| Max Cutting Height | 33.6 ft in (10240 mm) |
| Max Loading Height | 24.05 ft in (7330 mm) |
| Shipping Height Of Unit | 11 ft in (3350 mm) |
| Max Reach Along Ground | 36.49 ft in (11120 mm) |
| Max Vertical Wall Digging Depth | 22.22 ft in (6770 mm) |
| Max Digging Depth | 25.86 ft in (7880 mm) |
| Boom/Stick Option (Hex) 3 | Boom 20'4" (6200mm) / Stick 12'4" (3750mm) |
Dimensions
| Ground Clearance | 1.65 ft in (500 mm) |
| Height To Top Of Cab | 9.95 ft in (3030 mm) |
| Width To Outside Of Tracks | 10.47 ft in (3190 mm) |
| Length Of Track On Ground | 13.16 ft in (4010 mm) |
| Tail Swing Radius | 9.65 ft in (2940 mm) |
| Removal Counterweight Clearance | 3.81 ft in (1160 mm) |
Undercarriage
| Track Gauge | 8.5 ft in (2590 mm) |
| Shoe Size | 23.63 in (600 mm) |
| Number Of Track Rollers Per Side | 9 |
| Number Of Carrier Rollers Per Side | 2 |
| Max Travel Speed | 3.17 mph (5.1 km/h) |
| Ground Pressure | 7.39 psi (50.96 kPa) |
| Number Of Shoes Per Side | 50 |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2511 |
| Engine Model | H07C-TD |
| Net Power | 168 hp (125.3 kw) |
| Power Measured @ | 2050 rpm |
| Max Torque | 484.6 lb ft (657 Nm) |
| Aspiration | Turbocharged |
| Displacement | 411 cu in (6.8 L) |
| Torque Measured @ | 1600 rpm |
Operational
| Operating Weight | 58870 lb (26703 kg) |
| Fuel Capacity | 100.4 gal (380 L) |
| Cooling System Fluid Capacity | 6.1 gal (23 L) |
| Hydraulic System Fluid Capacity | 60.8 gal (230 L) |
| Engine Oil Capacity | 6.9 gal (26 L) |
| Swing Drive Fluid Capacity | 4.5 gal (17 L) |
| Alternator Supplied Amperage | 50 amps |
| Hydraulic System Relief Valve Pressure | 4980 psi (34335.9 kPa) |
| Hydraulic Pump Flow Capacity | 110.5 gal/min (418 L/min) |
Swing Mechanism
| Swing Speed | 10.6 rpm |
Buckets
| Reference Bucket Capacity | 1.5 yd3 (1.1 m3) |
| Minimum Bucket Capacity | 1.3 yd3 (1 m3) |
| Maximum Bucket Capacity | 2.2 yd3 (1.7 m3) |
