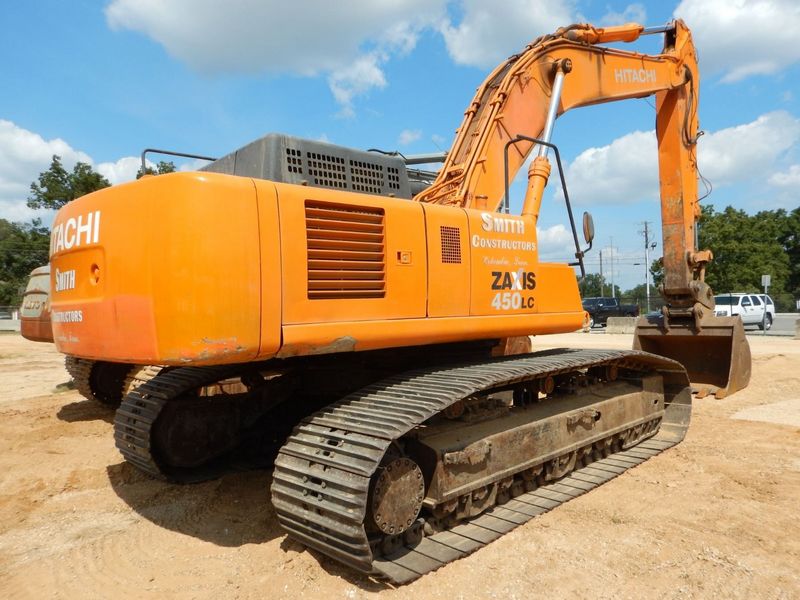

Hitachi ZX450LC
Browse All Hitachi or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 38.78 ft in (11820 mm) |
| Shipping Height Of Unit | 11.09 ft in (3380 mm) |
| Max Cutting Height | 35.27 ft in (10750 mm) |
| Max Loading Height | 23.69 ft in (7220 mm) |
| Max Reach Along Ground | 33.83 ft in (10310 mm) |
| Max Vertical Wall Digging Depth | 16.05 ft in (4890 mm) |
| Max Digging Depth | 18.74 ft in (5710 mm) |
| Boom/Stick Option (Hex) 1 | Boom 6300mm (20\' 8\'\') / Stick 2500mm (8\' 2\'\') |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 38.78 ft in (11820 mm) |
| Max Cutting Height | 33.7 ft in (10270 mm) |
| Shipping Height Of Unit | 11.09 ft in (3380 mm) |
| Max Loading Height | 23.1 ft in (7040 mm) |
| Max Reach Along Ground | 36.72 ft in (11190 mm) |
| Max Vertical Wall Digging Depth | 15.69 ft in (4780 mm) |
| Max Digging Depth | 23.96 ft in (7300 mm) |
| Boom/Stick Option (Hex) 2 | Boom 7000mm (23\' 0\'\') / Stick 2900mm (9\' 6\'\') |
Boom/Stick Option (Hex) 3
| Shipping Length Of Unit | 38.78 ft in (11820 mm) |
| Max Cutting Height | 36.36 ft in (11080 mm) |
| Max Loading Height | 25.14 ft in (7660 mm) |
| Shipping Height Of Unit | 11.42 ft in (3480 mm) |
| Max Reach Along Ground | 38.75 ft in (11810 mm) |
| Max Vertical Wall Digging Depth | 21.86 ft in (6660 mm) |
| Max Digging Depth | 25.46 ft in (7760 mm) |
| Boom/Stick Option (Hex) 3 | Boom 7000mm (23\' 0\'\') / Stick 3400mm (11\' 2\'\') |
Boom/Stick Option (Hex) 4
| Shipping Length Of Unit | 38.78 ft in (11820 mm) |
| Shipping Height Of Unit | 11.09 ft in (3380 mm) |
| Max Cutting Height | 36.68 ft in (11180 mm) |
| Max Loading Height | 25.53 ft in (7780 mm) |
| Max Reach Along Ground | 39.6 ft in (12070 mm) |
| Max Digging Depth | 27.1 ft in (8260 mm) |
| Max Vertical Wall Dig Depth | 23.1 ft in (7040 mm) |
| Boom/Stick Option (Hex) 4 | Boom 7000mm (23\' 0\'\') / Stick 3900mm (12\' 10\'\') |
Boom/Stick Option (Hex) 5
| Shipping Length Of Unit | 38.78 ft in (11820 mm) |
| Shipping Height Of Unit | 11.09 ft in (3380 mm) |
| Max Cutting Height | 38.88 ft in (11850 mm) |
| Max Loading Height | 28.78 ft in (8770 mm) |
| Max Reach Along Ground | 43.25 ft in (13180 mm) |
| Max Digging Depth | 29.89 ft in (9110 mm) |
| Max Vertical Wall Dig Depth | 27.73 ft in (8450 mm) |
| Boom/Stick Option (Hex) 5 | Boom 7000mm (23\' 0\'\') / Stick 4900mm (16\' 1\'\') |
Boom/Stick Option (Hex) 6
| Max Cutting Height | 40.13 ft in (12230 mm) |
| Max Loading Height | 30.22 ft in (9210 mm) |
| Shipping Length Of Unit | 38.78 ft in (11820 mm) |
| Max Reach Along Ground | 46.86 ft in (14280 mm) |
| Shipping Height Of Unit | 11.09 ft in (3380 mm) |
| Max Digging Depth | 33.57 ft in (10230 mm) |
| Boom/Stick Option (Hex) 6 | Boom 8200mm (26\' 11\'\') / Stick 4900mm (16\' 1\'\') |
| Max Vertical Wall Dig Depth | 30.98 ft in (9440 mm) |
Dimensions
| Ground Clearance | 2.43 ft in (738 mm) |
| Height To Top Of Cab | 11.09 ft in (3380 mm) |
| Width To Outside Of Tracks | 11.46 ft in (3490 mm) |
| Length Of Track On Ground | 14.67 ft in (4470 mm) |
| Tail Swing Radius | 11.49 ft in (3500 mm) |
| Removal Counterweight Clearance | 4.43 ft in (1350 mm) |
Undercarriage
| Track Gauge | 9.49 ft in (2890 mm) |
| Shoe Size | 23.63 in (600 mm) |
| Max Travel Speed | 3.42 mph (5.5 km/h) |
| Number Of Track Rollers Per Side | 9 |
| Number Of Shoes Per Side | 53 |
| Number Of Carrier Rollers Per Side | 3 |
| Ground Pressure | 11.03 psi (76 kPa) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2353 |
| Engine Model | AA-6WG1TQA |
| Net Power | 314 hp (234.2 kw) |
| Power Measured @ | 1800 rpm |
| Max Torque | 940.4 lb ft (1275 Nm) |
| Displacement | 957 cu in (15.7 L) |
| Aspiration | turbocharged |
| Torque Measured @ | 1500 rpm |
Operational
| Operating Weight | 98767.1 lb (44800 kg) |
| Fuel Capacity | 171.8 gal (650 L) |
| Cooling System Fluid Capacity | 16.2 gal (61 L) |
| Hydraulic System Fluid Capacity | 134.8 gal (510 L) |
| Operating Voltage | 12 V |
| Engine Oil Capacity | 14.6 gal (55 L) |
| Swing Drive Fluid Capacity | 1.8 gal (6.5 L) |
| Hydraulic System Relief Valve Pressure | 4980 psi (34335.9 kPa) |
| Hydraulic Pump Flow Capacity | 95.2 gal/min (360 L/min) |
Swing Mechanism
| Swing Speed | 9 rpm |
Buckets
| Reference Bucket Capacity | 2.8 yd3 (2.1 m3) |
| Minimum Bucket Capacity | 1.6 yd3 (1.2 m3) |
| Maximum Bucket Capacity | 3.5 yd3 (2.7 m3) |
