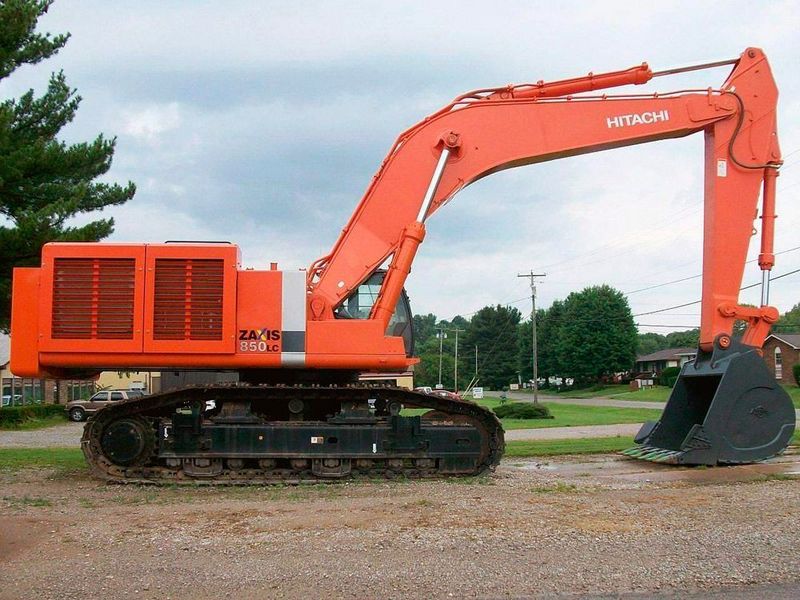

Hitachi ZX850-3
Browse All Hitachi or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Max Cutting Height | 39.41 ft in (12010 mm) |
| Max Loading Height | 26.68 ft in (8130 mm) |
| Max Reach Along Ground | 39.44 ft in (12020 mm) |
| Max Vertical Wall Digging Depth | 13.46 ft in (4100 mm) |
| Max Digging Depth | 23.43 ft in (7140 mm) |
| Boom/Stick Option (Hex) 1 | Boom 7100mm/Stick 2950mm |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 48.46 ft in (14770 mm) |
| Max Cutting Height | 42.75 ft in (13030 mm) |
| Shipping Height Of Unit | 15 ft in (4570 mm) |
| Max Loading Height | 29.79 ft in (9080 mm) |
| Max Reach Along Ground | 45.35 ft in (13820 mm) |
| Max Vertical Wall Digging Depth | 23.53 ft in (7170 mm) |
| Max Digging Depth | 29.11 ft in (8870 mm) |
| Boom/Stick Option (Hex) 2 | Boom 8400mm/Stick 3700mm |
Boom/Stick Option (Hex) 3
| Max Cutting Height | 45.35 ft in (13820 mm) |
| Max Loading Height | 31.96 ft in (9740 mm) |
| Max Reach Along Ground | 48.04 ft in (14640 mm) |
| Max Vertical Wall Digging Depth | 27.83 ft in (8480 mm) |
| Max Digging Depth | 31.4 ft in (9570 mm) |
| Boom/Stick Option (Hex) 3 | Boom 8400mm/Stick 4400mm |
Dimensions
| Ground Clearance | 2.92 ft in (890 mm) |
| Height To Top Of Cab | 11.91 ft in (3630 mm) |
| Width To Outside Of Tracks | 13.46 ft in (4100 mm) |
| Length Of Track On Ground | 15.06 ft in (4590 mm) |
| Tail Swing Radius | 15.1 ft in (4600 mm) |
| Removal Counterweight Clearance | 5.52 ft in (1680 mm) |
Undercarriage
| Track Gauge | 11.32 ft in (3450 mm) |
| Shoe Size | 25.6 in (650 mm) |
| Max Travel Speed | 2.55 mph (4.1 km/h) |
| Number Of Shoes Per Side | 47 |
| Number Of Track Rollers Per Side | 8 |
| Ground Pressure | 17.55 psi (121 kPa) |
| Number Of Carrier Rollers Per Side | 3 |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2353 |
| Engine Model | AH-6WG1XYSA-03 |
| Net Power | 460 hp (343.1 kw) |
| Power Measured @ | 1800 rpm |
| Max Torque | 1374.1 lb ft (1863 Nm) |
| Displacement | 957 cu in (15.7 L) |
| Aspiration | Turbocharged |
| Torque Measured @ | 1600 rpm |
Operational
| Operating Weight | 177472.2 lb (80500 kg) |
| Fuel Capacity | 295.9 gal (1120 L) |
| Cooling System Fluid Capacity | 30.7 gal (116 L) |
| Hydraulic System Fluid Capacity | 208.7 gal (790 L) |
| Engine Oil Capacity | 15.1 gal (57 L) |
| Swing Drive Fluid Capacity | 4 gal (15 L) |
| Hydraulic System Relief Valve Pressure | 4974.8 psi (34300 kPa) |
| Hydraulic Pump Flow Capacity | 279 gal/min (1056 L/min) |
Swing Mechanism
| Swing Speed | 7.3 rpm |
Buckets
| Reference Bucket Capacity | 4.6 yd3 (3.5 m3) |
| Minimum Bucket Capacity | 3.8 yd3 (2.9 m3) |
| Maximum Bucket Capacity | 5.9 yd3 (4.5 m3) |
