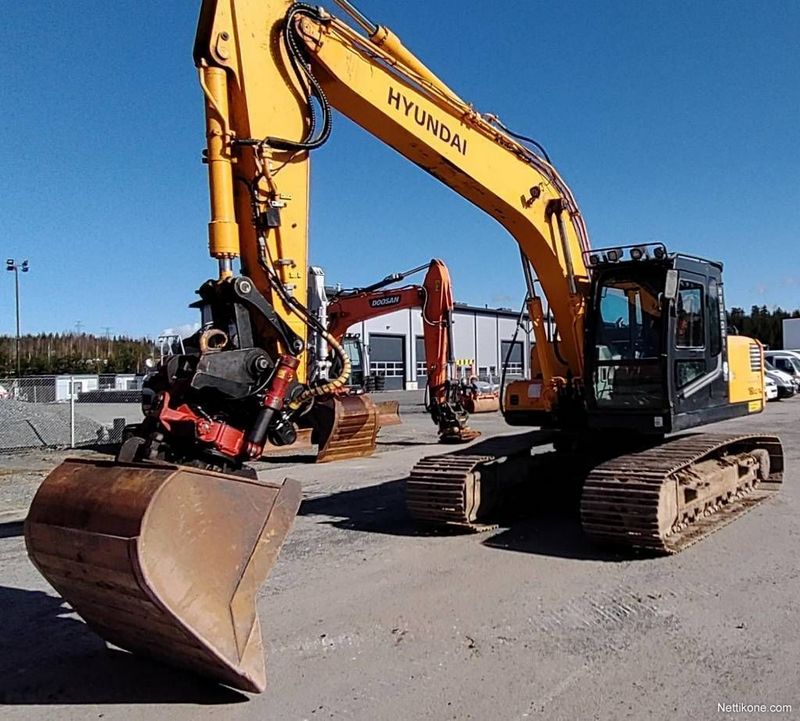

Hyundai R180LC-7
Browse All Hyundai or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 28.29 ft in (8620 mm) |
| Shipping Height Of Unit | 9.72 ft in (2960 mm) |
| Max Cutting Height | 28.68 ft in (8740 mm) |
| Max Loading Height | 20.02 ft in (6100 mm) |
| Max Reach Along Ground | 27.99 ft in (8530 mm) |
| Max Vertical Wall Digging Depth | 16.87 ft in (5140 mm) |
| Max Digging Depth | 18.57 ft in (5660 mm) |
| Boom/Stick Option (Hex) 1 | 15'1 (4600mm) Boom / 7'3 (2200mm) Stick |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 28.22 ft in (8600 mm) |
| Max Cutting Height | 29.11 ft in (8870 mm) |
| Shipping Height Of Unit | 9.55 ft in (2910 mm) |
| Max Loading Height | 20.48 ft in (6240 mm) |
| Max Reach Along Ground | 29.11 ft in (8870 mm) |
| Max Vertical Wall Digging Depth | 17.85 ft in (5440 mm) |
| Max Digging Depth | 19.89 ft in (6060 mm) |
| Boom/Stick Option (Hex) 2 | 15'1 (4600mm) Boom / 8'6 (2600mm) Stick |
Boom/Stick Option (Hex) 3
| Shipping Length Of Unit | 28.22 ft in (8600 mm) |
| Max Cutting Height | 29.43 ft in (8970 mm) |
| Max Loading Height | 20.94 ft in (6380 mm) |
| Shipping Height Of Unit | 10.14 ft in (3090 mm) |
| Max Reach Along Ground | 30.52 ft in (9300 mm) |
| Max Vertical Wall Digging Depth | 18.8 ft in (5730 mm) |
| Max Digging Depth | 21.53 ft in (6560 mm) |
| Boom/Stick Option (Hex) 3 | 15'1 (4600mm) Boom / 10'2 (3100mm) Stick |
Boom/Stick Option (Hex) 4
| Shipping Length Of Unit | 28.15 ft in (8580 mm) |
| Shipping Height Of Unit | 9.98 ft in (3040 mm) |
| Max Cutting Height | 30.81 ft in (9390 mm) |
| Max Loading Height | 21.92 ft in (6680 mm) |
| Max Reach Along Ground | 28.22 ft in (8600 mm) |
| Max Digging Depth | 17.92 ft in (5460 mm) |
| Max Vertical Wall Dig Depth | 15.33 ft in (4670 mm) |
| Boom/Stick Option (Hex) 4 | 15'1 (4600mm) Boom / 7'3 (2200mm) Stick |
Boom/Stick Option (Hex) 5
| Shipping Length Of Unit | 28.12 ft in (8570 mm) |
| Shipping Height Of Unit | 10.01 ft in (3050 mm) |
| Max Cutting Height | 31.5 ft in (9600 mm) |
| Max Loading Height | 22.64 ft in (6900 mm) |
| Max Reach Along Ground | 29.4 ft in (8960 mm) |
| Max Digging Depth | 19.13 ft in (5830 mm) |
| Max Vertical Wall Dig Depth | 16.51 ft in (5030 mm) |
| Boom/Stick Option (Hex) 5 | 15'1 (4600mm) Boom / 8'6 (2600mm) Stick |
Dimensions
| Ground Clearance | 1.51 ft in (460 mm) |
| Height To Top Of Cab | 9.57 ft in (2915 mm) |
| Width To Outside Of Tracks | 9.36 ft in (2850 mm) |
| Length Of Track On Ground | 11.03 ft in (3360 mm) |
| Tail Swing Radius | 8.31 ft in (2530 mm) |
| Removal Counterweight Clearance | 3.45 ft in (1050 mm) |
Undercarriage
| Track Gauge | 7.39 ft in (2250 mm) |
| Shoe Size | 23.63 in (600 mm) |
| Ground Pressure | 5.97 psi (0.29 kPa) |
| Max Travel Speed | 3.2 mph (5.15 km/h) |
| Drawbar Pull | 37500 lb (166.81 kN) |
| Number Of Track Rollers Per Side | 8 |
| Number Of Shoes Per Side | 51 |
| Number Of Carrier Rollers Per Side | 2 |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2251 |
| Engine Model | S6S-DT |
| Gross Power | 126 hp (94 kw) |
| Net Power | 116 hp (86.6 kw) |
| Power Measured @ | 2100 rpm |
| Max Torque | 307 lb ft (416.3 Nm) |
| Displacement | 305 cu in (5 L) |
| Aspiration | Turbocharged and Charge air cooled |
| Torque Measured @ | 1500 rpm |
Operational
| Operating Weight | 40124.2 lb (18200 kg) |
| Fuel Capacity | 68.7 gal (260 L) |
| Cooling System Fluid Capacity | 8 gal (30 L) |
| Hydraulic System Fluid Capacity | 63.5 gal (240 L) |
| Operating Voltage | 24 V |
| Engine Oil Capacity | 4.4 gal (16.5 L) |
| Swing Drive Fluid Capacity | 1.4 gal (5 L) |
| Alternator Supplied Amperage | 50 amps |
| Hydraulic System Relief Valve Pressure | 4690 psi (224.6 kPa) |
| Hydraulic Pump Flow Capacity | 88.8 gal/min (336.2 L/min) |
Swing Mechanism
| Swing Speed | 12 rpm |
Buckets
| Reference Bucket Capacity | 1 yd3 (0.8 m3) |
| Minimum Bucket Capacity | 0.6 yd3 (0.4 m3) |
| Maximum Bucket Capacity | 1.4 yd3 (1.1 m3) |
