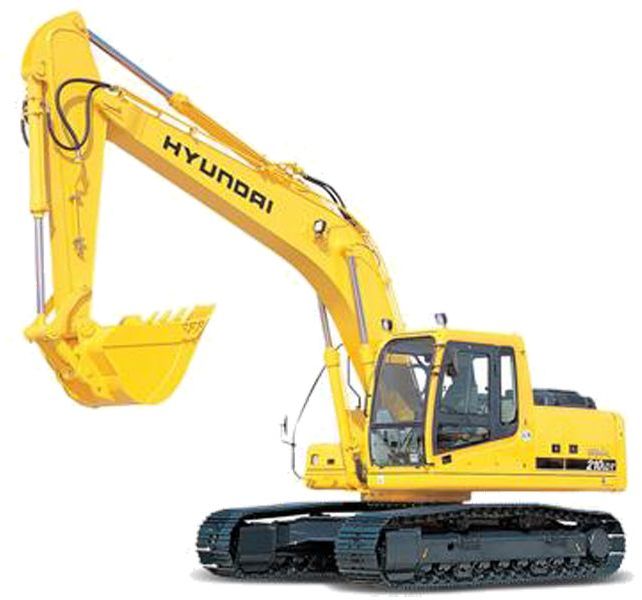

Hyundai R210LC-7 LR
Browse All Hyundai or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 16.38 ft in (4990 mm) |
| Max Cutting Height | 41.18 ft in (12550 mm) |
| Max Loading Height | 33.73 ft in (10280 mm) |
| Max Reach Along Ground | 49.61 ft in (15120 mm) |
| Max Vertical Wall Digging Depth | 31.53 ft in (9610 mm) |
| Max Digging Depth | 38.59 ft in (11760 mm) |
| Boom/Stick Option (Hex) 1 | Boom 26'11" (8200mm)/Stick 20'8" (6300mm) |
Dimensions
| Ground Clearance | 1.58 ft in (480 mm) |
| Height To Top Of Cab | 9.59 ft in (2920 mm) |
| Width To Outside Of Tracks | 10.47 ft in (3190 mm) |
| Tail Swing Radius | 9.29 ft in (2830 mm) |
| Removal Counterweight Clearance | 3.48 ft in (1060 mm) |
Undercarriage
| Track Gauge | 7.85 ft in (2390 mm) |
| Shoe Size | 31.5 in (800 mm) |
| Max Travel Speed | 3.3 mph (5.3 km/h) |
| Ground Pressure | 5.55 psi (38.27 kPa) |
Engine
| Engine Make | 2347 |
| Engine Model | B5.9-C |
| Net Power | 150 hp (111.9 kw) |
Operational
| Operating Weight | 54000 lb (24494 kg) |
| Hydraulic System Relief Valve Pressure | 4690 psi (32336.4 kPa) |
Buckets
| Reference Bucket Capacity | 0.7 yd3 (0.6 m3) |
| Minimum Bucket Capacity | 0.3 yd3 (0.3 m3) |
| Maximum Bucket Capacity | 0.7 yd3 (0.6 m3) |
