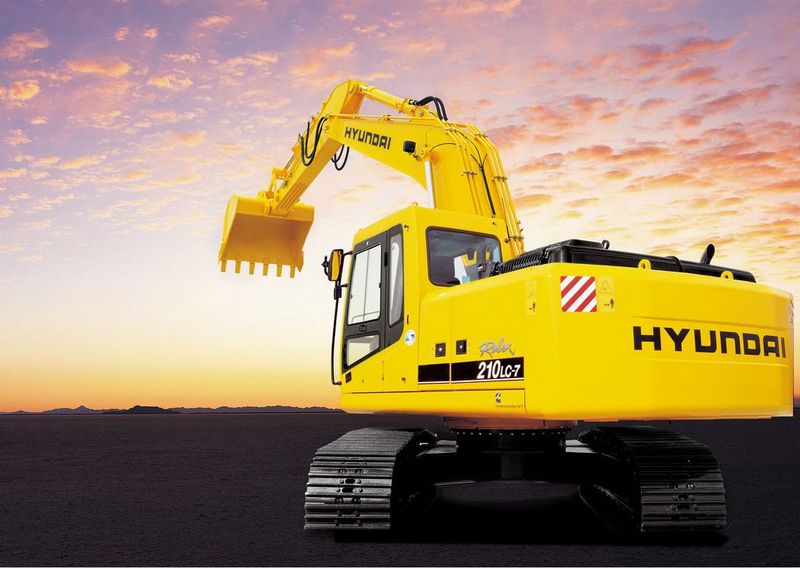

Hyundai R210LC-7H
Browse All Hyundai or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 31.24 ft in (9520 mm) |
| Shipping Height Of Unit | 9.81 ft in (2990 mm) |
| Max Cutting Height | 31.07 ft in (9470 mm) |
| Max Loading Height | 21.89 ft in (6670 mm) |
| Max Reach Along Ground | 32.09 ft in (9780 mm) |
| Max Vertical Wall Digging Depth | 20.08 ft in (6120 mm) |
| Max Digging Depth | 22.12 ft in (6740 mm) |
Dimensions
| Ground Clearance | 1.58 ft in (480 mm) |
| Height To Top Of Cab | 9.59 ft in (2920 mm) |
| Width To Outside Of Tracks | 9.81 ft in (2990 mm) |
| Length Of Track On Ground | 11.98 ft in (3650 mm) |
| Tail Swing Radius | 9.09 ft in (2770 mm) |
| Removal Counterweight Clearance | 3.48 ft in (1060 mm) |
Undercarriage
| Track Gauge | 7.85 ft in (2390 mm) |
| Shoe Size | 23.63 in (600 mm) |
| Drawbar Pull | 42200 lb (187.72 kN) |
| Number Of Carrier Rollers Per Side | 2 |
| Number Of Track Rollers Per Side | 9 |
| Ground Pressure | 667.18 psi (4600 kPa) |
| Max Travel Speed | 3.3 mph (5.3 km/h) |
Engine
| Engine Make | 2247 |
| Engine Model | D6BT-C |
| Net Power | 157 hp (117.1 kw) |
| Power Measured @ | 1950 rpm |
| Max Torque | 412.1 lb ft (558.6 Nm) |
| Torque Measured @ | 1600 rpm |
Operational
| Operating Weight | 47399.4 lb (21500 kg) |
| Fuel Capacity | 89.9 gal (340 L) |
| Hydraulic System Fluid Capacity | 47.6 gal (180 L) |
| Engine Oil Capacity | 47.6 gal (180 L) |
| Hydraulic System Relief Valve Pressure | 52.3 psi (360 kPa) |
| Hydraulic Pump Flow Capacity | 116.3 gal/min (440 L/min) |
Swing Mechanism
| Swing Speed | 12.5 rpm |
Buckets
| Reference Bucket Capacity | 1.3 yd3 (1 m3) |
