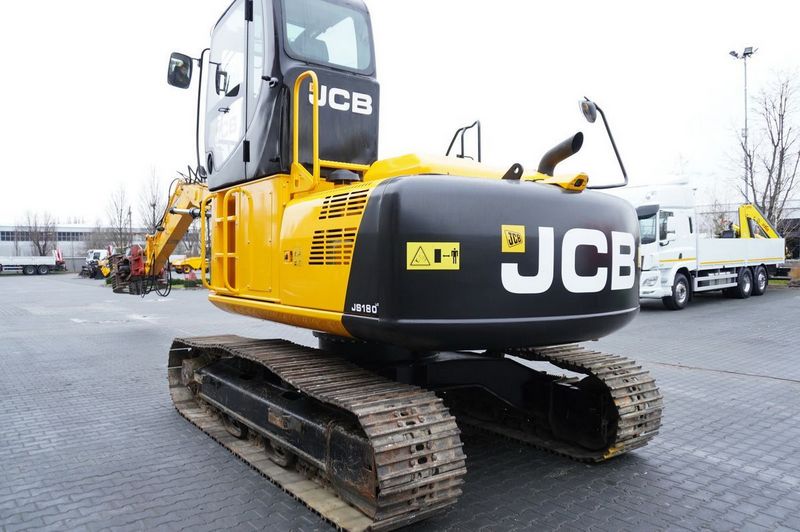

JCB JS180LC
Browse All JCB or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Max Cutting Height | 33.55 ft in (10226 mm) |
| Max Loading Height | 26.17 ft in (7976 mm) |
| Max Reach Along Ground | 28.39 ft in (8652 mm) |
| Max Vertical Wall Digging Depth | 145.2 ft in (44254 mm) |
| Max Digging Depth | 17.64 ft in (5376 mm) |
| Boom/Stick Option (Hex) 1 | T.A. boom 5350 mm with arm 2250 mm |
| Max Digging Reach On Ground | 27.46 ft in (8368 mm) |
| Minimum Swing Radius | 118.12 in (3000 mm) |
| Max Digging Reach | 27.94 ft in (8514 mm) |
Boom/Stick Option (Hex) 2
| Max Cutting Height | 34.95 ft in (10652 mm) |
| Max Loading Height | 27.45 ft in (8366 mm) |
| Max Reach Along Ground | 29.84 ft in (9094 mm) |
| Max Vertical Wall Digging Depth | 15.49 ft in (4721 mm) |
| Max Digging Depth | 19.06 ft in (5808 mm) |
| Max Digging Reach | 29.23 ft in (8908 mm) |
| Max Digging Reach On Ground | 28.77 ft in (8769 mm) |
| Minimum Swing Radius | 118.12 in (3000 mm) |
| Boom/Stick Option (Hex) 2 | T.A. boom 5350 mm with arm 2700 mm |
Boom/Stick Option (Hex) 3
| Max Cutting Height | 35.44 ft in (10800 mm) |
| Max Loading Height | 28.44 ft in (8667 mm) |
| Max Reach Along Ground | 31.05 ft in (9463 mm) |
| Max Vertical Wall Digging Depth | 17.17 ft in (5233 mm) |
| Max Digging Depth | 20.12 ft in (6130 mm) |
| Minimum Swing Radius | 118.12 in (3000 mm) |
| Max Digging Reach | 30.26 ft in (9223 mm) |
| Max Digging Reach On Ground | 29.82 ft in (9088 mm) |
| Boom/Stick Option (Hex) 3 | T.A. boom 5350 mm with arm 2700 mm |
Dimensions
| Ground Clearance | 1.6 ft in (486 mm) |
| Height To Top Of Cab | 9.8 ft in (2987 mm) |
| Width To Outside Of Tracks | 9.19 ft in (2800 mm) |
| Length Of Track On Ground | 11.06 ft in (3370 mm) |
| Tail Swing Radius | 7.68 ft in (2338 mm) |
| Transport Height | 10.38 ft in (3162 mm) |
| Transport Length | 27.45 ft in (8366 mm) |
| Undercarriage Overall Length | 13.69 ft in (4170 mm) |
| Removal Counterweight Clearance | 3.52 ft in (1072 mm) |
Undercarriage
| Track Gauge | 7.12 ft in (2170 mm) |
| Shoe Size | 23.63 in (600 mm) |
| Max Travel Speed | 1.93 mph (3.1 km/h) |
| Number Of Carrier Rollers Per Side | 2 |
| Number Of Shoes Per Side | 46 |
| Number Of Track Rollers Per Side | 7 |
| Track Adjustment | Grease cylinder type |
| Ground Pressure | 5.97 psi (41.17 kPa) |
Engine
| Battery | 2 x 12 V |
| Number Of Cylinders | 4 |
| Engine Make | 2353 |
| Engine Model | JCB EcoMAX 444 TCA EU Stage IV, EPA Tier 4 Final compliant |
| Net Power | 124.8 hp (93 kw) |
| Power Measured @ | 2200 rpm |
| Displacement | 268.6 cu in (4.4 L) |
| Alternator | 55 amps |
Capacities
| Def Tank | 14.3 gal (54 L) |
| Engine Oil | 0.6 gal (2.1 L) |
| Engine Coolant | 5.2 gal (19.7 L) |
Operational
| Operating Weight | 40424 lb (18336 kg) |
| Fuel Capacity | 66.9 gal (253 L) |
| Cooling System Fluid Capacity | 4.4 gal (16.4 L) |
| Hydraulic System Fluid Capacity | 37.6 gal (142 L) |
| Engine Oil Capacity | 3.5 gal (13.2 L) |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 1.6 gal (6 L) |
| Alternator Supplied Amperage | 50 amps |
| Hydraulic System Relief Valve Pressure | 4975 psi (34301.4 kPa) |
| Hydraulic Pump Flow Capacity | 73 gal/min (276 L/min) |
| Travel Speed | 3.5 mph (5.5 km/h) |
Swing Mechanism
| Swing Gear | Large diameter, internally toothed fully sealed grease bath lubricated |
| Swing Motor | Axial piston type |
| Swing Brake | Hydraulic braking plus automatic spring applied disc type parking brake |
| Swing Torque | 2581.5 lb ft (3500 Nm) |
| Swing Speed | 10 rpm |
Buckets
| Reference Bucket Capacity | 1.2 yd3 (0.9 m3) |
| Minimum Bucket Capacity | 0.5 yd3 (0.4 m3) |
| Maximum Bucket Capacity | 1.2 yd3 (0.9 m3) |
Hydraulic System
| Power Boost | 23.5 psi (162 kPa) |
| Main Pump - Maximum Flow | 86.7 gal/min (328 L/min) |
| Maximum Flow -Servo Pump, Low Noise Gear Pump | 5.5 gal/min (20.5 L/min) |
| Travel Circuit | 23.5 psi (162 kPa) |
| Swing Circuit | 19.3 psi (132.7 kPa) |
| Pilot Circuit | 2.8 psi (19.1 kPa) |
| Control Valve | A combined ten spool control valve with auxiliary service spool as standard |
Brakes
| Park Brake | Disc type, spring applied, automatic hydraulic release |
| Service Brake | Hydraulic counter balance valve |
| Gradeability | 70 % |
