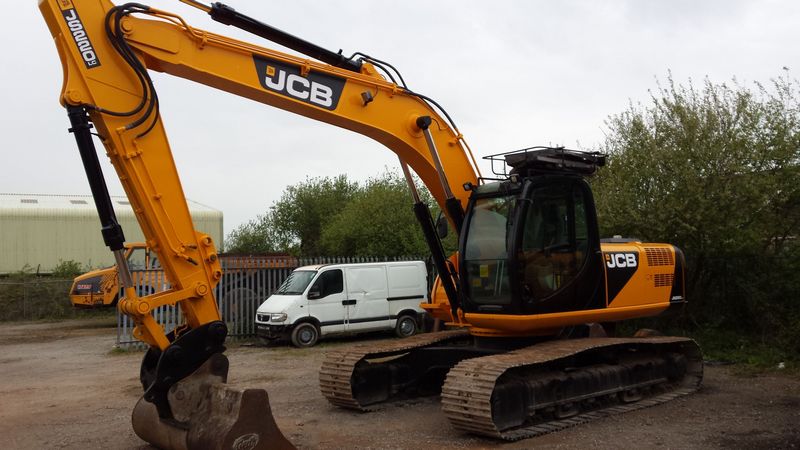

JCB JS220LC
Browse All JCB or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 31.42 ft in (9570 mm) |
| Shipping Height Of Unit | 10 ft in (3055 mm) |
| Max Cutting Height | 29.33 ft in (8939.79 mm) |
| Max Loading Height | 20.67 ft in (6300.22 mm) |
| Max Reach Along Ground | 28.58 ft in (8711.19 mm) |
| Max Vertical Wall Digging Depth | 16.08 ft in (4901.19 mm) |
| Max Digging Depth | 18.18 ft in (5538.22 mm) |
| Boom/Stick Option (Hex) 1 | Arm Length 6ft 2in. (1.91m ) Boom 18ft 8in.(5.70m ) |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 31.33 ft in (9560 mm) |
| Max Cutting Height | 30.17 ft in (9195.82 mm) |
| Shipping Height Of Unit | 10 ft in (3060 mm) |
| Max Loading Height | 31.42 ft in (9576.82 mm) |
| Max Reach Along Ground | 30.08 ft in (9168.39 mm) |
| Max Vertical Wall Digging Depth | 17.93 ft in (5462.02 mm) |
| Max Digging Depth | 19.75 ft in (6019.8 mm) |
| Boom/Stick Option (Hex) 2 | Arm Length 7ft.10in.(2.40m)Boom 18ft. 8in.(5.70m ) |
Boom/Stick Option (Hex) 3
| Shipping Length Of Unit | 31 ft in (9440 mm) |
| Max Cutting Height | 30.83 ft in (9396.99 mm) |
| Max Loading Height | 22.17 ft in (6757.42 mm) |
| Shipping Height Of Unit | 9.92 ft in (3025 mm) |
| Max Reach Along Ground | 31.83 ft in (9701.79 mm) |
| Max Vertical Wall Digging Depth | 19.93 ft in (6071.62 mm) |
| Max Digging Depth | 21.67 ft in (6605.02 mm) |
| Boom/Stick Option (Hex) 3 | Arm Length 9ft.10in.(3.00m ) Boom 18ft. 8in. (5.70m ) |
Dimensions
| Ground Clearance | 1.58 ft in (485 mm) |
| Height To Top Of Cab | 9.67 ft in (2946 mm) |
| Width To Outside Of Tracks | 9.83 ft in (2990 mm) |
| Length Of Track On Ground | 12 ft in (3660 mm) |
| Tail Swing Radius | 9.25 ft in (2825 mm) |
| Removal Counterweight Clearance | 3.5 ft in (1066 mm) |
Undercarriage
| Track Gauge | 7.83 ft in (2390 mm) |
| Shoe Size | 24 in (600 mm) |
| Max Travel Speed | 3.4 mph (5.6 km/h) |
| Ground Pressure | 4.99 psi (34.34 kPa) |
| Number Of Shoes Per Side | 49 |
| Number Of Carrier Rollers Per Side | 8 |
| Number Of Track Rollers Per Side | 2 |
| Drawbar Pull | 43144 lb (191.9 kN) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2353 |
| Engine Model | 4HKIX |
| Net Power | 172 hp (128 kw) |
| Power Measured @ | 2000 rpm |
| Displacement | 317 cu in (5.2 L) |
| Aspiration | Turbocharged |
Operational
| Operating Weight | 48290 lb (21904 kg) |
| Fuel Capacity | 91 gal (343 L) |
| Cooling System Fluid Capacity | 6.7 gal (25.5 L) |
| Hydraulic System Fluid Capacity | 53 gal (200 L) |
| Engine Oil Capacity | 5.7 gal (21.5 L) |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 1.3 gal (5 L) |
| Alternator Supplied Amperage | 40 amps |
| Hydraulic System Relief Valve Pressure | 4975 psi (34301.4 kPa) |
| Hydraulic Pump Flow Capacity | 56.6 gal/min (214 L/min) |
Swing Mechanism
| Swing Speed | 12.9 rpm |
Buckets
| Reference Bucket Capacity | 1.5 yd3 (1.2 m3) |
| Minimum Bucket Capacity | 0.6 yd3 (0.4 m3) |
| Maximum Bucket Capacity | 1.6 yd3 (1.2 m3) |
