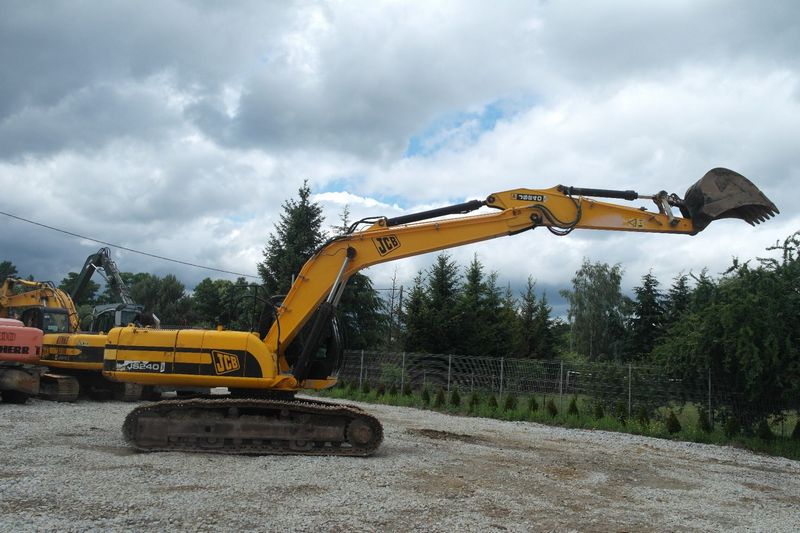

JCB JS240NC
Browse All JCB or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 33.09 ft in (10083 mm) |
| Shipping Height Of Unit | 10.42 ft in (3173 mm) |
| Max Cutting Height | 29.01 ft in (8840 mm) |
| Max Loading Height | 20.18 ft in (6150 mm) |
| Max Reach Along Ground | 29.5 ft in (8990 mm) |
| Max Vertical Wall Digging Depth | 14.8 ft in (4510 mm) |
| Max Digging Depth | 18.77 ft in (5720 mm) |
| Boom/Stick Option (Hex) 1 | Monoboom 5.850mm w/ arm 2000mm |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 33.01 ft in (10060 mm) |
| Max Cutting Height | 30.29 ft in (9230 mm) |
| Shipping Height Of Unit | 10.6 ft in (3230 mm) |
| Max Loading Height | 21.23 ft in (6470 mm) |
| Max Reach Along Ground | 31.01 ft in (9450 mm) |
| Max Vertical Wall Digging Depth | 17.56 ft in (5350 mm) |
| Max Digging Depth | 20.15 ft in (6140 mm) |
| Boom/Stick Option (Hex) 2 | Monoboom 5.850mm w/ arm 2440mm |
Boom/Stick Option (Hex) 3
| Shipping Length Of Unit | 32.68 ft in (9960 mm) |
| Max Cutting Height | 31.57 ft in (9620 mm) |
| Max Loading Height | 22.41 ft in (6830 mm) |
| Shipping Height Of Unit | 10.01 ft in (3050 mm) |
| Max Reach Along Ground | 32.85 ft in (10010 mm) |
| Max Vertical Wall Digging Depth | 20.38 ft in (6210 mm) |
| Max Digging Depth | 22.28 ft in (6790 mm) |
| Boom/Stick Option (Hex) 3 | Monoboom 5.850mm w/ arm 3090mm |
Boom/Stick Option (Hex) 4
| Shipping Length Of Unit | 32.85 ft in (10010 mm) |
| Shipping Height Of Unit | 10.57 ft in (3220 mm) |
| Max Cutting Height | 32.32 ft in (9850 mm) |
| Max Loading Height | 23.13 ft in (7050 mm) |
| Max Reach Along Ground | 34.52 ft in (10520 mm) |
| Max Digging Depth | 23.73 ft in (7230 mm) |
| Max Vertical Wall Dig Depth | 21.89 ft in (6670 mm) |
| Boom/Stick Option (Hex) 4 | Monoboom 5.850mm w/ arm 3530mm |
Dimensions
| Ground Clearance | 1.6 ft in (486 mm) |
| Height To Top Of Cab | 9.78 ft in (2980 mm) |
| Width To Outside Of Tracks | 9.81 ft in (2990 mm) |
| Length Of Track On Ground | 12.6 ft in (3840 mm) |
| Tail Swing Radius | 9.85 ft in (3000 mm) |
| Removal Counterweight Clearance | 3.7 ft in (1125 mm) |
Undercarriage
| Track Gauge | 7.85 ft in (2390 mm) |
| Shoe Size | 23.63 in (600 mm) |
| Max Travel Speed | 3.48 mph (5.6 km/h) |
| Number Of Track Rollers Per Side | 9 |
| Number Of Shoes Per Side | 51 |
| Number Of Carrier Rollers Per Side | 2 |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2353 |
| Engine Model | BB-6BGITR8-06 |
| Net Power | 160 hp (119.4 kw) |
| Power Measured @ | 2150 rpm |
| Displacement | 396.3 cu in (6.5 L) |
| Aspiration | turbocharged |
Operational
| Operating Weight | 55556.5 lb (25200 kg) |
| Fuel Capacity | 90.7 gal (343 L) |
| Cooling System Fluid Capacity | 7.1 gal (26.8 L) |
| Hydraulic System Fluid Capacity | 63.7 gal (241 L) |
| Engine Oil Capacity | 5.7 gal (21.5 L) |
| Swing Drive Fluid Capacity | 1.6 gal (6 L) |
| Hydraulic System Relief Valve Pressure | 4975 psi (34301.4 kPa) |
| Hydraulic Pump Flow Capacity | 114.2 gal/min (432 L/min) |
Swing Mechanism
| Swing Speed | 10.6 rpm |
Buckets
| Reference Bucket Capacity | 1.5 yd3 (1.2 m3) |
| Minimum Bucket Capacity | 1.1 yd3 (0.8 m3) |
| Maximum Bucket Capacity | 2 yd3 (1.5 m3) |
