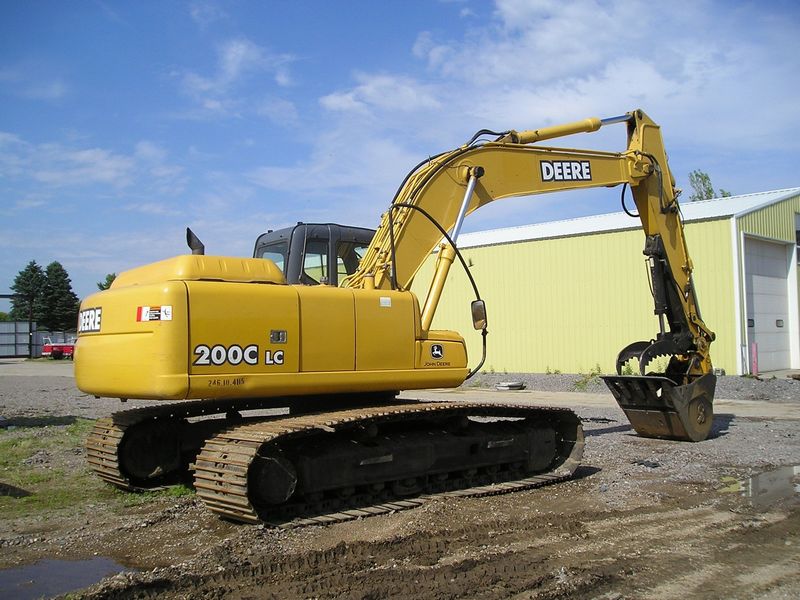

John Deere 200 LC
Browse All John Deere or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 31.57 ft in (9620 mm) |
| Shipping Height Of Unit | 10.14 ft in (3090 mm) |
| Max Cutting Height | 30.08 ft in (9168.39 mm) |
| Max Loading Height | 21 ft in (6400.8 mm) |
| Max Reach Along Ground | 29.75 ft in (9067.8 mm) |
| Max Vertical Wall Digging Depth | 16.83 ft in (5129.79 mm) |
| Max Digging Depth | 19.58 ft in (5967.99 mm) |
| Boom/Stick Option (Hex) 1 | Arm Length 7ft. 3in. ( 2.22m ) |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 31.17 ft in (9500 mm) |
| Max Cutting Height | 31.5 ft in (9601.21 mm) |
| Shipping Height Of Unit | 9.75 ft in (2970 mm) |
| Max Loading Height | 22.25 ft in (6781.8 mm) |
| Max Reach Along Ground | 32 ft in (9753.6 mm) |
| Max Vertical Wall Digging Depth | 19.83 ft in (6044.19 mm) |
| Max Digging Depth | 21.92 ft in (6681.22 mm) |
| Boom/Stick Option (Hex) 2 | Arm Length 9ft. 7in. (2.91m ) |
Dimensions
| Ground Clearance | 1.48 ft in (450 mm) |
| Height To Top Of Cab | 8.9 ft in (2710 mm) |
| Width To Outside Of Tracks | 10.47 ft in (3190 mm) |
| Length Of Track On Ground | 12.01 ft in (3660 mm) |
| Tail Swing Radius | 8.9 ft in (2710 mm) |
| Removal Counterweight Clearance | 3.38 ft in (1030 mm) |
Undercarriage
| Track Gauge | 7.85 ft in (2390 mm) |
| Shoe Size | 32 in (800 mm) |
| Number Of Shoes Per Side | 49 |
| Drawbar Pull | 42420 lb (188.7 kN) |
| Number Of Track Rollers Per Side | 8 |
| Number Of Carrier Rollers Per Side | 2 |
| Max Travel Speed | 3.2 mph (5.15 km/h) |
| Ground Pressure | 4.58 psi (31.6 kPa) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2240 |
| Engine Model | 6068T |
| Net Power | 140 hp (104.4 kw) |
| Power Measured @ | 2150 rpm |
| Max Torque | 427 lb ft (579 Nm) |
| Displacement | 414 cu in (6.8 L) |
| Aspiration | Turbocharger |
| Torque Measured @ | 1300 rpm |
Operational
| Operating Weight | 44750 lb (20298.3 kg) |
| Fuel Capacity | 80 gal (302.9 L) |
| Cooling System Fluid Capacity | 7.6 gal (28.4 L) |
| Hydraulic System Fluid Capacity | 52.8 gal (199.9 L) |
| Engine Oil Capacity | 5.1 gal (19 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 45 amps |
| Hydraulic System Relief Valve Pressure | 4980 psi (34335.9 kPa) |
| Hydraulic Pump Flow Capacity | 52.6 gal/min (199.2 L/min) |
Swing Mechanism
| Swing Speed | 13.9 rpm |
| Swing Torque | 41250 lb ft (55927.5 Nm) |
Buckets
| Reference Bucket Capacity | 1.2 yd3 (0.9 m3) |
