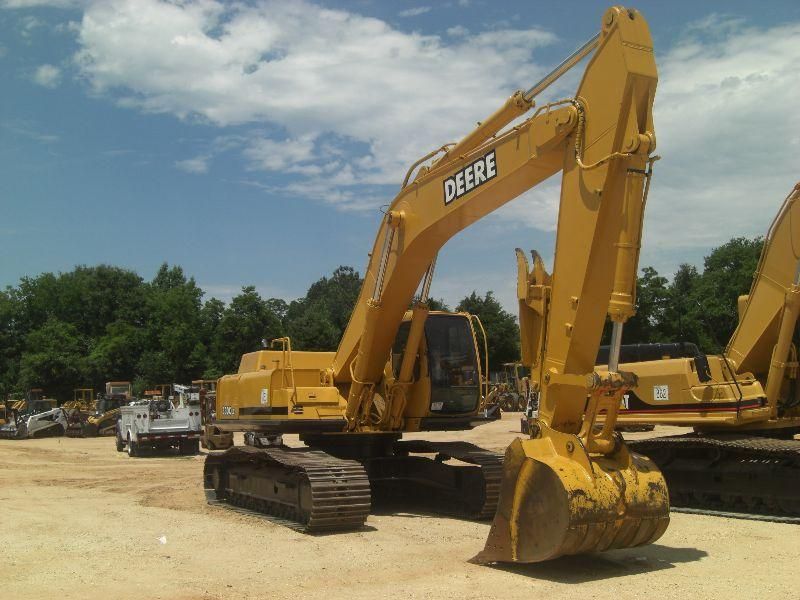

John Deere 330 LC
Browse All John Deere or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 36.32 ft in (11070 mm) |
| Shipping Height Of Unit | 11.36 ft in (3460 mm) |
| Max Cutting Height | 32.26 ft in (9830 mm) |
| Max Loading Height | 22.68 ft in (6910 mm) |
| Max Reach Along Ground | 33.8 ft in (10300 mm) |
| Max Vertical Wall Digging Depth | 18.18 ft in (5540 mm) |
| Max Digging Depth | 22.22 ft in (6770 mm) |
| Boom/Stick Option (Hex) 1 | Arm Length 8ft. 9in. (2.66m ) |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 35.93 ft in (10950 mm) |
| Max Cutting Height | 33.42 ft in (10186.42 mm) |
| Shipping Height Of Unit | 10.63 ft in (3240 mm) |
| Max Loading Height | 23.67 ft in (7214.62 mm) |
| Max Reach Along Ground | 35.58 ft in (10844.79 mm) |
| Max Vertical Wall Digging Depth | 21 ft in (6400.8 mm) |
| Max Digging Depth | 23.92 ft in (7290.82 mm) |
| Boom/Stick Option (Hex) 2 | Arm Length 10ft.6in. (3.2m ) |
Boom/Stick Option (Hex) 3
| Shipping Length Of Unit | 36.19 ft in (11030 mm) |
| Max Cutting Height | 34.67 ft in (10567.42 mm) |
| Max Loading Height | 24.83 ft in (7568.19 mm) |
| Shipping Height Of Unit | 11.62 ft in (3540 mm) |
| Max Reach Along Ground | 30.08 ft in (9168.39 mm) |
| Max Vertical Wall Digging Depth | 23.92 ft in (7290.82 mm) |
| Max Digging Depth | 26.58 ft in (8101.59 mm) |
| Boom/Stick Option (Hex) 3 | Arm Length 13ft.1in. (4.0m) |
Dimensions
| Ground Clearance | 1.67 ft in (509.02 mm) |
| Height To Top Of Cab | 10.31 ft in (3140 mm) |
| Width To Outside Of Tracks | 11.13 ft in (3390 mm) |
| Length Of Track On Ground | 13.29 ft in (4050 mm) |
| Tail Swing Radius | 10.83 ft in (3300 mm) |
| Removal Counterweight Clearance | 3.81 ft in (1160 mm) |
Undercarriage
| Track Gauge | 8.5 ft in (2590 mm) |
| Shoe Size | 31.5 in (800 mm) |
| Max Travel Speed | 3.4 mph (5.48 km/h) |
| Ground Pressure | 6.74 psi (46.48 kPa) |
| Number Of Shoes Per Side | 48 |
| Number Of Carrier Rollers Per Side | 2 |
| Number Of Track Rollers Per Side | 9 |
| Drawbar Pull | 56086 lb (249.49 kN) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2240 |
| Engine Model | 6081H |
| Net Power | 235 hp (175.3 kw) |
| Power Measured @ | 2000 rpm |
| Max Torque | 940 lb ft (1274.5 Nm) |
| Displacement | 494 cu in (8.1 L) |
| Aspiration | Turbocharger |
| Torque Measured @ | 1100 rpm |
Operational
| Operating Weight | 72800 lb (33021.6 kg) |
| Fuel Capacity | 148 gal (560.3 L) |
| Cooling System Fluid Capacity | 14.6 gal (55 L) |
| Hydraulic System Fluid Capacity | 85 gal (321.8 L) |
| Engine Oil Capacity | 7.4 gal (28.1 L) |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 4.5 gal (17 L) |
| Alternator Supplied Amperage | 45 amps |
| Hydraulic System Relief Valve Pressure | 4624 psi (31881.4 kPa) |
| Hydraulic Pump Flow Capacity | 77 gal/min (291.5 L/min) |
Swing Mechanism
| Swing Speed | 10.9 rpm |
| Swing Torque | 67700 lb ft (91788.9 Nm) |
Buckets
| Reference Bucket Capacity | 2.4 yd3 (1.8 m3) |
