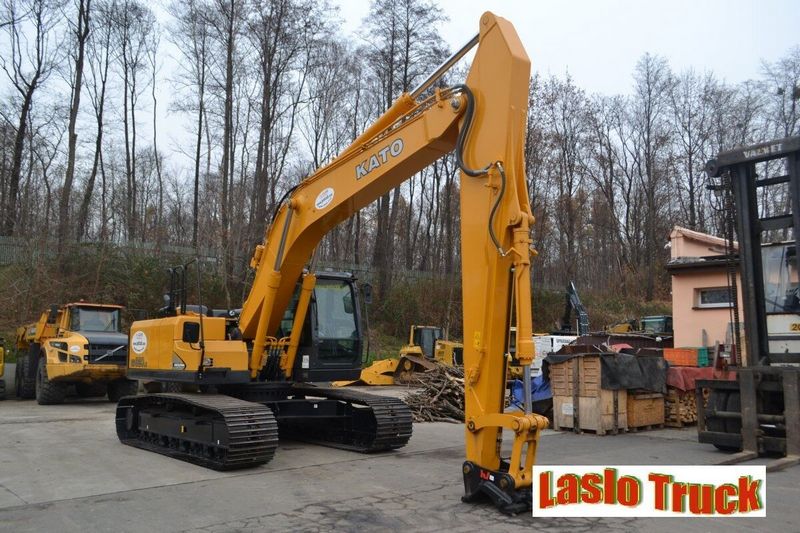

Kato HD820LC
Browse All Kato or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 31.14 ft in (9490 mm) |
| Shipping Height Of Unit | 9.55 ft in (2910 mm) |
| Max Cutting Height | 31.34 ft in (9550 mm) |
| Max Loading Height | 9.42 ft in (2870 mm) |
| Max Reach Along Ground | 30.48 ft in (9290 mm) |
| Max Vertical Wall Digging Depth | 18.51 ft in (5640 mm) |
| Max Digging Depth | 20.38 ft in (6210 mm) |
| Boom/Stick Option (Hex) 1 | Boom 5630mm (18' 06'') / Stick 2430mm (8' 00'') |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 31.14 ft in (9490 mm) |
| Max Cutting Height | 32.03 ft in (9760 mm) |
| Shipping Height Of Unit | 9.55 ft in (2910 mm) |
| Max Loading Height | 7.78 ft in (2370 mm) |
| Max Reach Along Ground | 31.96 ft in (9740 mm) |
| Max Vertical Wall Digging Depth | 20.08 ft in (6120 mm) |
| Max Digging Depth | 21.99 ft in (6700 mm) |
| Boom/Stick Option (Hex) 2 | Boom 5630mm (18' 06'') / Stick 2930mm (9' 07'') |
Boom/Stick Option (Hex) 3
| Shipping Length Of Unit | 31.14 ft in (9490 mm) |
| Max Cutting Height | 33.5 ft in (10210 mm) |
| Max Loading Height | 23.82 ft in (7260 mm) |
| Shipping Height Of Unit | 9.55 ft in (2910 mm) |
| Max Reach Along Ground | 34.98 ft in (10660 mm) |
| Max Vertical Wall Digging Depth | 23.53 ft in (7170 mm) |
| Max Digging Depth | 25.27 ft in (7700 mm) |
| Boom/Stick Option (Hex) 3 | Boom 5630mm (18' 06'') / Stick 3920mm (12' 10'') |
Dimensions
| Ground Clearance | 1.53 ft in (465 mm) |
| Height To Top Of Cab | 9.39 ft in (2860 mm) |
| Width To Outside Of Tracks | 9.81 ft in (2990 mm) |
| Length Of Track On Ground | 12.01 ft in (3660 mm) |
| Tail Swing Radius | 9.19 ft in (2800 mm) |
| Removal Counterweight Clearance | 3.38 ft in (1030 mm) |
Undercarriage
| Track Gauge | 7.85 ft in (2390 mm) |
| Shoe Size | 23.63 in (600 mm) |
| Max Travel Speed | 3.42 mph (5.5 km/h) |
| Ground Pressure | 6.11 psi (42.13 kPa) |
| Number Of Shoes Per Side | 49 |
| Number Of Carrier Rollers Per Side | 2 |
| Number Of Track Rollers Per Side | 8 |
| Drawbar Pull | 39251.64 lb (174.6 kN) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2251 |
| Engine Model | 6D31T |
| Net Power | 133 hp (99.2 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 340 lb ft (461 Nm) |
| Displacement | 302 cu in (5 L) |
| Aspiration | turbocharged |
| Torque Measured @ | 1700 rpm |
Operational
| Operating Weight | 44753.9 lb (20300 kg) |
| Fuel Capacity | 84.6 gal (320 L) |
| Cooling System Fluid Capacity | 6.3 gal (23.5 L) |
| Hydraulic System Fluid Capacity | 74 gal (280 L) |
| Operating Voltage | 24 V |
| Engine Oil Capacity | 5.9 gal (22 L) |
| Swing Drive Fluid Capacity | 1.4 gal (5 L) |
| Alternator Supplied Amperage | 30 amps |
| Hydraulic System Relief Valve Pressure | 4270 psi (29440.6 kPa) |
| Hydraulic Pump Flow Capacity | 121.6 gal/min (460 L/min) |
Swing Mechanism
| Swing Speed | 13.5 rpm |
Buckets
| Reference Bucket Capacity | 1.1 yd3 (0.8 m3) |
| Minimum Bucket Capacity | 0.6 yd3 (0.5 m3) |
| Maximum Bucket Capacity | 1.5 yd3 (1.1 m3) |
