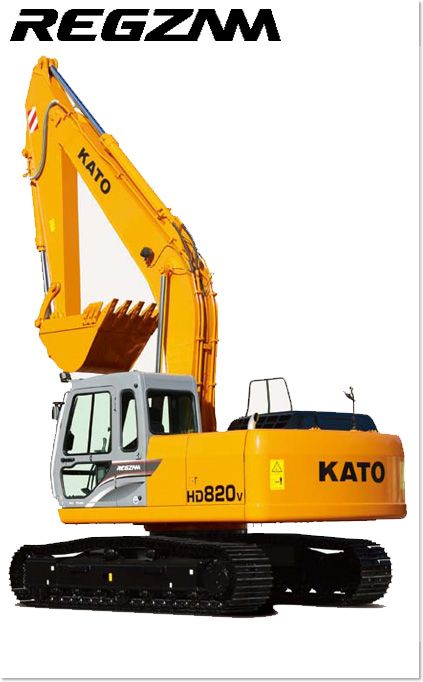

Kato HD820V
Browse All Kato or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 31.07 ft in (9470 mm) |
| Shipping Height Of Unit | 9.72 ft in (2960 mm) |
| Max Loading Height | 22.41 ft in (6830 mm) |
| Max Reach Along Ground | 32.52 ft in (9910 mm) |
| Max Vertical Wall Digging Depth | 19.26 ft in (5870 mm) |
| Max Digging Depth | 21.99 ft in (6700 mm) |
Dimensions
| Ground Clearance | 1.53 ft in (465 mm) |
| Width To Outside Of Tracks | 9.26 ft in (2820 mm) |
| Length Of Track On Ground | 11.06 ft in (3370 mm) |
| Tail Swing Radius | 9.03 ft in (2750 mm) |
Undercarriage
| Shoe Size | 23.63 in (600 mm) |
| Max Travel Speed | 3.42 mph (5.5 km/h) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2251 |
| Engine Model | 4M50-TLE3A |
| Gross Power | 150.9 hp (112.5 kw) |
| Power Measured @ | 2050 rpm |
| Displacement | 299.1 cu in (4.9 L) |
Operational
| Operating Weight | 43872 lb (19900 kg) |
| Hydraulic System Relief Valve Pressure | 5264.9 psi (36300 kPa) |
| Hydraulic Pump Flow Capacity | 124.2 gal/min (470 L/min) |
Buckets
| Reference Bucket Capacity | 1.1 yd3 (0.8 m3) |
