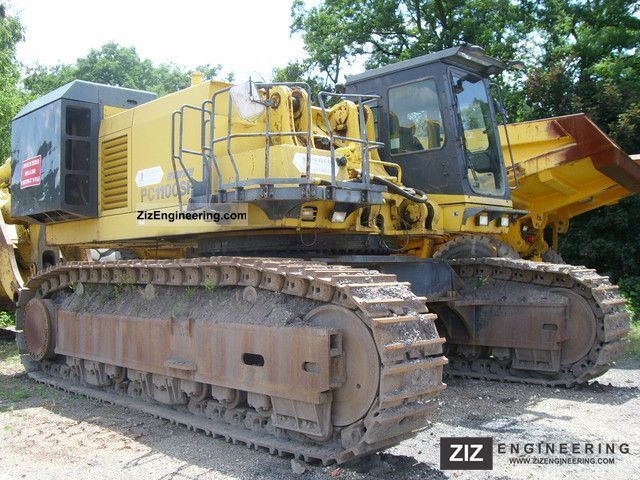

Komatsu PC1100SP-6
Browse All Komatsu or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 52.56 ft in (16020 mm) |
| Shipping Height Of Unit | 20.55 ft in (6265 mm) |
| Max Cutting Height | 42.66 ft in (13000 mm) |
| Max Loading Height | 27.73 ft in (8450 mm) |
| Max Reach Along Ground | 44.85 ft in (13670 mm) |
| Max Vertical Wall Digging Depth | 16.49 ft in (5025 mm) |
| Max Digging Depth | 25.92 ft in (7900 mm) |
| Boom/Stick Option (Hex) 1 | 7800mm Boom / 3400 mm Stick |
Dimensions
| Ground Clearance | 3.25 ft in (990 mm) |
| Height To Top Of Cab | 12.88 ft in (3925 mm) |
| Width To Outside Of Tracks | 15.1 ft in (4600 mm) |
| Length Of Track On Ground | 16.39 ft in (4995 mm) |
| Tail Swing Radius | 15.98 ft in (4870 mm) |
| Removal Counterweight Clearance | 5.88 ft in (1790 mm) |
Undercarriage
| Track Gauge | 12.8 ft in (3900 mm) |
| Shoe Size | 27.56 in (700 mm) |
| Drawbar Pull | 154324 lb (686.47 kN) |
| Number Of Carrier Rollers Per Side | 3 |
| Max Travel Speed | 1.99 mph (3.2 km/h) |
| Number Of Shoes Per Side | 48 |
| Number Of Track Rollers Per Side | 8 |
| Ground Pressure | 19 psi (131.01 kPa) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2238 |
| Engine Model | SAA6D170 |
| Gross Power | 611 hp (456 kw) |
| Power Measured @ | 1800 rpm |
| Displacement | 1412.7 cu in (23.2 L) |
| Aspiration | Turbocharged with aftercooler |
Operational
| Operating Weight | 229280.8 lb (104000 kg) |
| Fuel Capacity | 359.3 gal (1360 L) |
| Cooling System Fluid Capacity | 36.8 gal (139 L) |
| Hydraulic System Fluid Capacity | 177 gal (670 L) |
| Engine Oil Capacity | 12.7 gal (48 L) |
| Swing Drive Fluid Capacity | 5.7 gal (21.5 L) |
| Hydraulic System Relief Valve Pressure | 4978.2 psi (34323.3 kPa) |
| Hydraulic Pump Flow Capacity | 419.6 gal/min (1588 L/min) |
Swing Mechanism
| Swing Speed | 5.8 rpm |
Buckets
| Reference Bucket Capacity | 8.6 yd3 (6.5 m3) |
