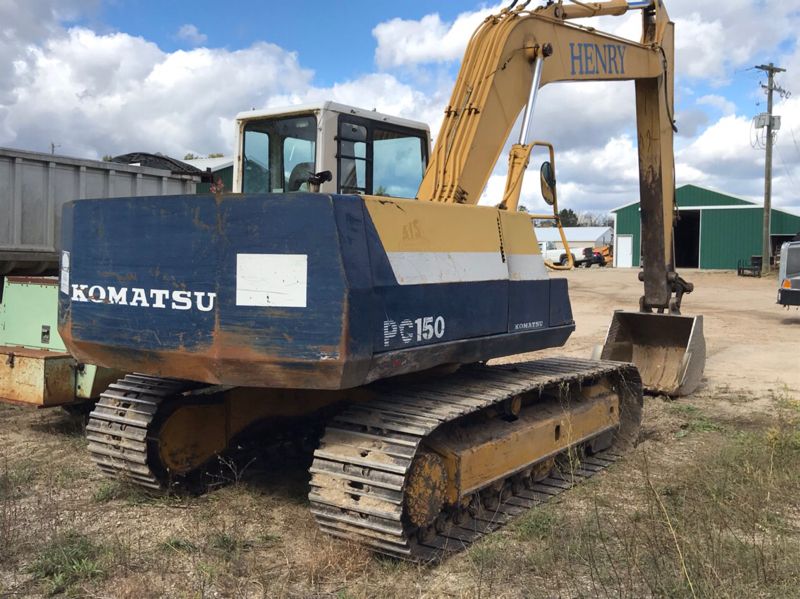

Komatsu PC150-5
Browse All Komatsu or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 27.96 ft in (8520 mm) |
| Shipping Height Of Unit | 9.42 ft in (2870 mm) |
| Max Cutting Height | 28.84 ft in (8790 mm) |
| Max Loading Height | 20.25 ft in (6170 mm) |
| Max Reach Along Ground | 27.96 ft in (8520 mm) |
| Max Vertical Wall Digging Depth | 16.05 ft in (4890 mm) |
| Max Digging Depth | 18.57 ft in (5660 mm) |
| Boom/Stick Option (Hex) 1 | Boom 16'11" (5150mm)/Stick 7'5" (2250mm) |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 27.89 ft in (8500 mm) |
| Max Cutting Height | 28.97 ft in (8830 mm) |
| Shipping Height Of Unit | 9.29 ft in (2830 mm) |
| Max Loading Height | 20.41 ft in (6220 mm) |
| Max Reach Along Ground | 28.86 ft in (8795 mm) |
| Max Vertical Wall Digging Depth | 16.9 ft in (5150 mm) |
| Max Digging Depth | 19.85 ft in (6050 mm) |
| Boom/Stick Option (Hex) 2 | Boom 16'11" (5150mm)/Stick 8'7" (2620mm) |
Boom/Stick Option (Hex) 3
| Shipping Length Of Unit | 27.89 ft in (8500 mm) |
| Max Cutting Height | 29.37 ft in (8950 mm) |
| Max Loading Height | 20.87 ft in (6360 mm) |
| Shipping Height Of Unit | 9.59 ft in (2920 mm) |
| Max Reach Along Ground | 29.79 ft in (9080 mm) |
| Max Vertical Wall Digging Depth | 17.67 ft in (5385 mm) |
| Max Digging Depth | 20.81 ft in (6340 mm) |
| Boom/Stick Option (Hex) 3 | Boom 16'11" (5150mm)/Stick 9'6" (2900mm) |
Dimensions
| Ground Clearance | 1.45 ft in (440 mm) |
| Height To Top Of Cab | 9.26 ft in (2820 mm) |
| Width To Outside Of Tracks | 8.17 ft in (2490 mm) |
| Length Of Track On Ground | 9.45 ft in (2880 mm) |
| Tail Swing Radius | 8.03 ft in (2445 mm) |
| Removal Counterweight Clearance | 3.22 ft in (980 mm) |
Undercarriage
| Track Gauge | 6.53 ft in (1990 mm) |
| Shoe Size | 19.69 in (500 mm) |
| Ground Pressure | 7 psi (48.27 kPa) |
| Max Travel Speed | 3.42 mph (5.5 km/h) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2238 |
| Engine Model | S6D95L |
| Gross Power | 99.3 hp (74 kw) |
| Power Measured @ | 2000 rpm |
| Displacement | 298.5 cu in (4.9 L) |
Operational
| Operating Weight | 33907.1 lb (15380 kg) |
| Fuel Capacity | 60.8 gal (230 L) |
| Hydraulic System Fluid Capacity | 35.7 gal (135 L) |
| Hydraulic System Relief Valve Pressure | 4620 psi (31853.8 kPa) |
| Hydraulic Pump Flow Capacity | 73 gal/min (276 L/min) |
Swing Mechanism
| Swing Speed | 12 rpm |
Buckets
| Reference Bucket Capacity | 0.9 yd3 (0.7 m3) |
| Minimum Bucket Capacity | 0.8 yd3 (0.6 m3) |
| Maximum Bucket Capacity | 1 yd3 (0.8 m3) |
