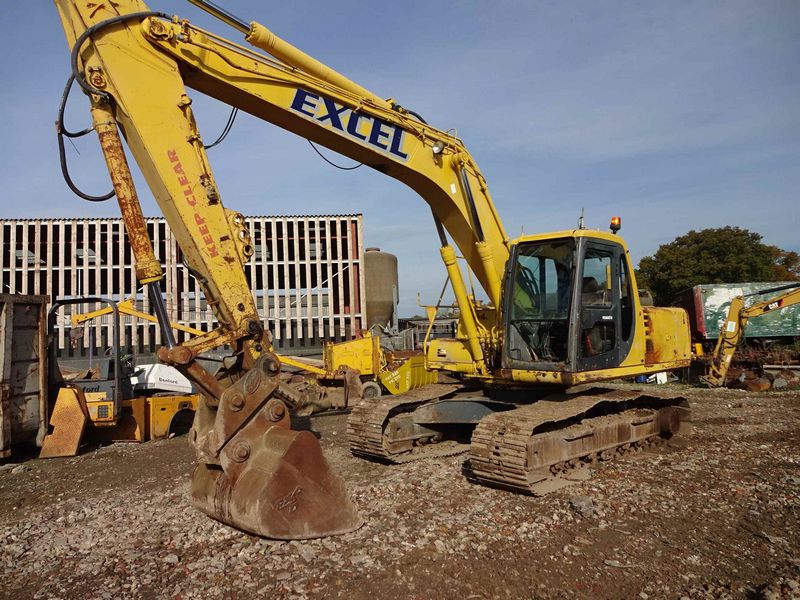

Komatsu PC210-6 MIGHTY
Browse All Komatsu or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 31.22 ft in (9515 mm) |
| Shipping Height Of Unit | 9.75 ft in (2970 mm) |
| Max Cutting Height | 30.53 ft in (9305 mm) |
| Max Loading Height | 21.25 ft in (6475 mm) |
| Max Reach Along Ground | 31.83 ft in (9700 mm) |
| Max Vertical Wall Digging Depth | 19.62 ft in (5980 mm) |
| Max Digging Depth | 21.72 ft in (6620 mm) |
| Boom/Stick Option (Hex) 1 | Boom 18'8" (5700mm)/Stick 9'7" (2925mm) |
Dimensions
| Ground Clearance | 1.45 ft in (440 mm) |
| Height To Top Of Cab | 9.54 ft in (2905 mm) |
| Width To Outside Of Tracks | 9.78 ft in (2980 mm) |
| Length Of Track On Ground | 10.73 ft in (3270 mm) |
| Tail Swing Radius | 9.39 ft in (2860 mm) |
| Removal Counterweight Clearance | 3.56 ft in (1085 mm) |
Undercarriage
| Track Gauge | 7.22 ft in (2200 mm) |
| Shoe Size | 23.63 in (600 mm) |
| Max Travel Speed | 3.42 mph (5.5 km/h) |
| Ground Pressure | 7.1 psi (48.96 kPa) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2238 |
| Engine Model | S6D102E |
| Gross Power | 132.8 hp (99 kw) |
| Power Measured @ | 2200 rpm |
| Displacement | 358.9 cu in (5.9 L) |
Operational
| Operating Weight | 47355.3 lb (21480 kg) |
| Fuel Capacity | 89.9 gal (340 L) |
| Hydraulic System Fluid Capacity | 43.9 gal (166 L) |
| Hydraulic System Relief Valve Pressure | 5050 psi (34818.5 kPa) |
| Hydraulic Pump Flow Capacity | 108.9 gal/min (412 L/min) |
Swing Mechanism
| Swing Speed | 12.4 rpm |
Buckets
| Reference Bucket Capacity | 1.1 yd3 (0.8 m3) |
