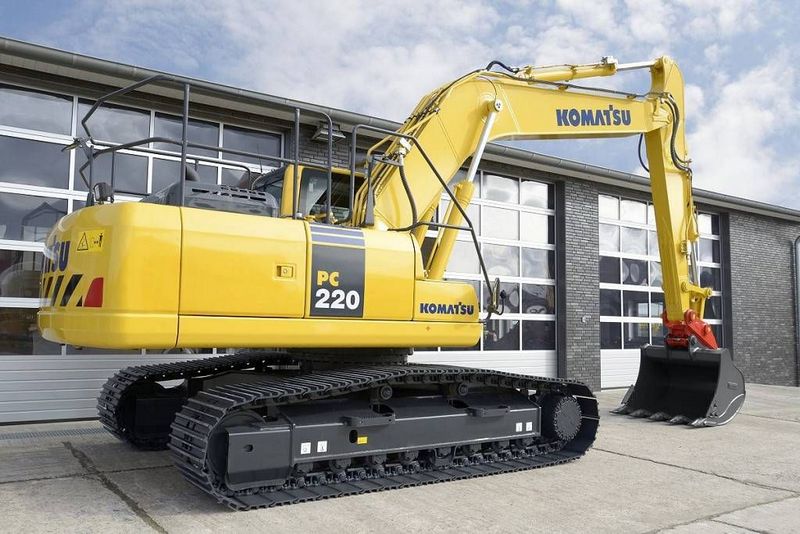

Komatsu PC220-2
Browse All Komatsu or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 32.4 ft in (9875 mm) |
| Shipping Height Of Unit | 10.04 ft in (3060 mm) |
| Max Cutting Height | 30.48 ft in (9290 mm) |
| Max Loading Height | 21.07 ft in (6420 mm) |
| Max Reach Along Ground | 32.81 ft in (10000 mm) |
| Max Vertical Wall Digging Depth | 18.69 ft in (5695 mm) |
| Max Digging Depth | 21.77 ft in (6635 mm) |
| Boom/Stick Option (Hex) 1 | Stick 9'3" (2810mm) |
Boom/Stick Option (Hex) 2
| Max Cutting Height | 30.17 ft in (9195 mm) |
| Max Loading Height | 21.17 ft in (6450 mm) |
| Max Reach Along Ground | 33.88 ft in (10325 mm) |
| Max Vertical Wall Digging Depth | 18.33 ft in (5585 mm) |
| Max Digging Depth | 23.02 ft in (7015 mm) |
| Boom/Stick Option (Hex) 2 | Stick 10'6" (3205mm) |
Boom/Stick Option (Hex) 3
| Max Cutting Height | 30.58 ft in (9320 mm) |
| Max Loading Height | 21.54 ft in (6565 mm) |
| Max Reach Along Ground | 34.95 ft in (10650 mm) |
| Max Vertical Wall Digging Depth | 19.79 ft in (6030 mm) |
| Max Digging Depth | 24.41 ft in (7440 mm) |
| Boom/Stick Option (Hex) 3 | Stick 11'10" (3610mm) |
Dimensions
| Ground Clearance | 1.5 ft in (455 mm) |
| Height To Top Of Cab | 9.63 ft in (2935 mm) |
| Width To Outside Of Tracks | 9.81 ft in (2990 mm) |
| Length Of Track On Ground | 11 ft in (3350 mm) |
| Tail Swing Radius | 9.52 ft in (2900 mm) |
| Removal Counterweight Clearance | 3.22 ft in (980 mm) |
Undercarriage
| Track Gauge | 7.81 ft in (2380 mm) |
| Shoe Size | 24.02 in (610 mm) |
| Ground Pressure | 7 psi (48.27 kPa) |
| Max Travel Speed | 1.31 mph (2.1 km/h) |
Engine
| Engine Make | 2238 |
| Engine Model | S6D105 |
| Gross Power | 136 hp (101.5 kw) |
| Aspiration | turbocharged |
| Displacement | 396 cu in (6.5 L) |
Operational
| Operating Weight | 48060.8 lb (21800 kg) |
| Fuel Capacity | 68.7 gal (260 L) |
| Hydraulic System Fluid Capacity | 47.6 gal (180 L) |
| Hydraulic System Relief Valve Pressure | 3980 psi (27441.2 kPa) |
| Hydraulic Pump Flow Capacity | 116.8 gal/min (442 L/min) |
Swing Mechanism
| Swing Speed | 11.5 rpm |
