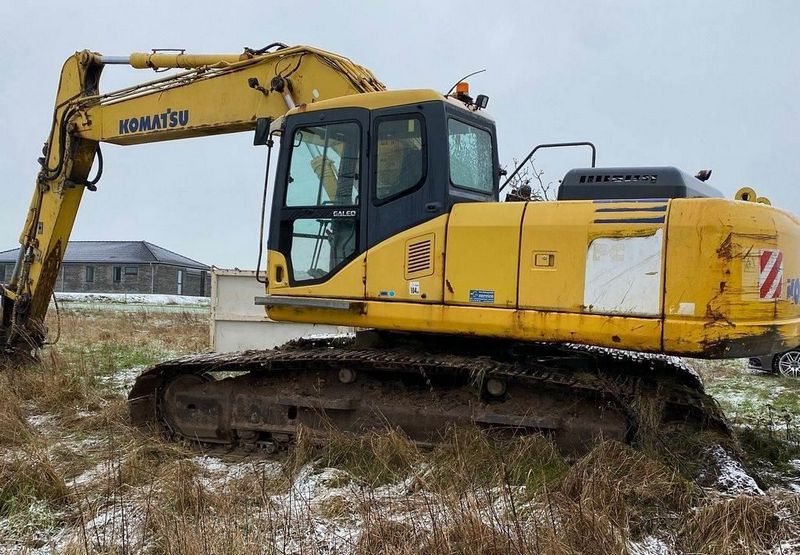

Komatsu PC240LC-7
Browse All Komatsu or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 32.36 ft in (9865 mm) |
| Shipping Height Of Unit | 10.56 ft in (3220 mm) |
| Max Cutting Height | 31.71 ft in (9665 mm) |
| Max Loading Height | 22.04 ft in (6715 mm) |
| Max Reach Along Ground | 29.76 ft in (9070 mm) |
| Max Vertical Wall Digging Depth | 15.59 ft in (4750 mm) |
| Max Digging Depth | 19.12 ft in (5825 mm) |
| Boom/Stick Option (Hex) 1 | boom w/ stick 2000mm |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 32.67 ft in (9960 mm) |
| Max Cutting Height | 32.12 ft in (9790 mm) |
| Shipping Height Of Unit | 10.81 ft in (3295 mm) |
| Max Loading Height | 22.51 ft in (6860 mm) |
| Max Reach Along Ground | 31.73 ft in (9670 mm) |
| Max Vertical Wall Digging Depth | 16.84 ft in (5130 mm) |
| Max Digging Depth | 20.74 ft in (6320 mm) |
| Boom/Stick Option (Hex) 2 | boom w/ stick 2500mm |
Boom/Stick Option (Hex) 3
| Shipping Length Of Unit | 32.43 ft in (9885 mm) |
| Max Cutting Height | 32.81 ft in (10000 mm) |
| Max Loading Height | 23.09 ft in (7035 mm) |
| Shipping Height Of Unit | 10.36 ft in (3160 mm) |
| Max Reach Along Ground | 32.88 ft in (10020 mm) |
| Max Vertical Wall Digging Depth | 19.72 ft in (6010 mm) |
| Max Digging Depth | 22.71 ft in (6920 mm) |
| Boom/Stick Option (Hex) 3 | boom w/ stick 3000mm |
Boom/Stick Option (Hex) 4
| Shipping Length Of Unit | 32.51 ft in (9910 mm) |
| Shipping Height Of Unit | 10.73 ft in (3270 mm) |
| Max Cutting Height | 33.8 ft in (10300 mm) |
| Max Loading Height | 24.15 ft in (7360 mm) |
| Max Reach Along Ground | 34.19 ft in (10420 mm) |
| Max Digging Depth | 24.02 ft in (7320 mm) |
| Boom/Stick Option (Hex) 4 | boom w/ stick 3500mm |
| Max Vertical Wall Dig Depth | 20.44 ft in (6230 mm) |
Dimensions
| Ground Clearance | 1.45 ft in (440 mm) |
| Height To Top Of Cab | 9.9 ft in (3015 mm) |
| Width To Outside Of Tracks | 10.44 ft in (3180 mm) |
| Length Of Track On Ground | 12.62 ft in (3845 mm) |
| Tail Swing Radius | 9.65 ft in (2940 mm) |
| Removal Counterweight Clearance | 3.61 ft in (1100 mm) |
Undercarriage
| Track Gauge | 8.47 ft in (2580 mm) |
| Shoe Size | 23.63 in (600 mm) |
| Number Of Carrier Rollers Per Side | 2 |
| Max Travel Speed | 3.42 mph (5.5 km/h) |
| Ground Pressure | 7.25 psi (49.99 kPa) |
| Number Of Track Rollers Per Side | 10 |
| Number Of Shoes Per Side | 51 |
| Drawbar Pull | 45349 lb (201.73 kN) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2238 |
| Engine Model | SAA6D102E-2 |
| Net Power | 168 hp (125 kw) |
| Power Measured @ | 2000 rpm |
| Displacement | 358.9 cu in (5.9 L) |
| Aspiration | Turbocharged, after-cooled |
Operational
| Operating Weight | 52558.3 lb (23840 kg) |
| Fuel Capacity | 105.7 gal (400 L) |
| Cooling System Fluid Capacity | 8.2 gal (30.9 L) |
| Hydraulic System Fluid Capacity | 37.8 gal (143 L) |
| Engine Oil Capacity | 6.4 gal (24 L) |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 1.8 gal (6.6 L) |
| Alternator Supplied Amperage | 60 amps |
| Hydraulic System Relief Valve Pressure | 5511.5 psi (38000 kPa) |
| Hydraulic Pump Flow Capacity | 116.3 gal/min (440 L/min) |
Swing Mechanism
| Swing Speed | 11.7 rpm |
Buckets
| Reference Bucket Capacity | 1.3 yd3 (1 m3) |
