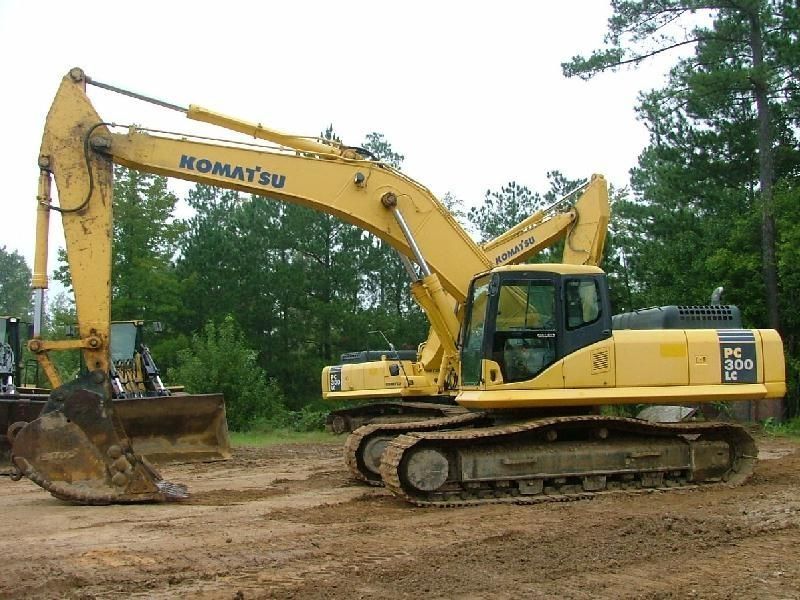

Komatsu PC300LC-7
Browse All Komatsu or Hydraulic Excavator Models
Contents:
Dimensions
| Ground Clearance | 1.65 ft in (500 mm) |
| Height To Top Of Cab | 10.27 ft in (3130 mm) |
| Length Of Track On Ground | 16.26 ft in (4955 mm) |
| Tail Swing Radius | 11.32 ft in (3450 mm) |
Undercarriage
| Number Of Track Rollers Per Side | 8 |
| Max Travel Speed | 3.4 mph (5.48 km/h) |
| Drawbar Pull | 59300 lb (263.78 kN) |
| Number Of Carrier Rollers Per Side | 2 |
| Number Of Shoes Per Side | 48 |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2238 |
| Engine Model | SAA6D114E |
| Net Power | 242 hp (180.5 kw) |
| Power Measured @ | 1900 rpm |
Operational
| Operating Weight | 71160 lb (32277.7 kg) |
| Fuel Capacity | 160 gal (605.7 L) |
| Cooling System Fluid Capacity | 8.5 gal (32.2 L) |
| Hydraulic System Fluid Capacity | 49.7 gal (188.2 L) |
| Engine Oil Capacity | 9.2 gal (34.9 L) |
| Swing Drive Fluid Capacity | 3.5 gal (13.3 L) |
Swing Mechanism
| Swing Speed | 9.5 rpm |
