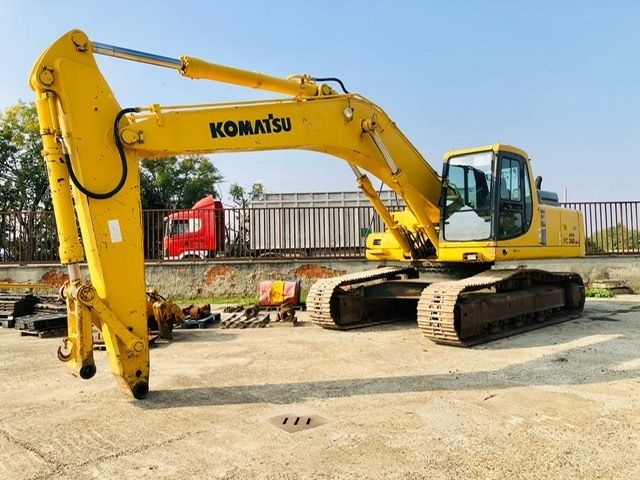

Komatsu PC340-6
Browse All Komatsu or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 36.41 ft in (11097 mm) |
| Shipping Height Of Unit | 11.57 ft in (3524 mm) |
| Max Cutting Height | 31.47 ft in (9590 mm) |
| Max Loading Height | 21.71 ft in (6615 mm) |
| Max Reach Along Ground | 32.62 ft in (9940 mm) |
| Max Vertical Wall Digging Depth | 16.75 ft in (5105 mm) |
| Max Digging Depth | 20.87 ft in (6360 mm) |
| Boom/Stick Option (Hex) 1 | Boom 21'3" (6470mm)/Stick 7'3" (2200mm) |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 36.05 ft in (10986 mm) |
| Max Cutting Height | 32.73 ft in (9975 mm) |
| Shipping Height Of Unit | 11.2 ft in (3411 mm) |
| Max Loading Height | 22.69 ft in (6915 mm) |
| Max Reach Along Ground | 33.95 ft in (10345 mm) |
| Max Vertical Wall Digging Depth | 19.17 ft in (5840 mm) |
| Max Digging Depth | 22.02 ft in (6710 mm) |
| Boom/Stick Option (Hex) 2 | Boom 21'3" (6470mm)/Stick 8'4" (2550mm) |
Boom/Stick Option (Hex) 3
| Shipping Length Of Unit | 35.88 ft in (10935 mm) |
| Max Cutting Height | 33.5 ft in (10210 mm) |
| Max Loading Height | 23.33 ft in (7110 mm) |
| Shipping Height Of Unit | 10.68 ft in (3255 mm) |
| Max Reach Along Ground | 35.83 ft in (10920 mm) |
| Max Vertical Wall Digging Depth | 21.26 ft in (6480 mm) |
| Max Digging Depth | 24.22 ft in (7380 mm) |
| Boom/Stick Option (Hex) 3 | Boom 21'3" (6470mm)/Stick 10'5" (3185mm) |
Boom/Stick Option (Hex) 4
| Shipping Length Of Unit | 36 ft in (10972 mm) |
| Shipping Height Of Unit | 11.92 ft in (3631 mm) |
| Max Cutting Height | 34.62 ft in (10550 mm) |
| Max Loading Height | 24.61 ft in (7500 mm) |
| Max Reach Along Ground | 38.46 ft in (11720 mm) |
| Max Digging Depth | 26.84 ft in (8180 mm) |
| Max Vertical Wall Dig Depth | 23.87 ft in (7275 mm) |
| Boom/Stick Option (Hex) 4 | Boom 21'3" (6470mm)/Stick 13'2" (4020mm) |
Dimensions
| Ground Clearance | 1.64 ft in (498 mm) |
| Height To Top Of Cab | 10.27 ft in (3130 mm) |
| Width To Outside Of Tracks | 10.47 ft in (3190 mm) |
| Length Of Track On Ground | 12.14 ft in (3700 mm) |
| Tail Swing Radius | 10.83 ft in (3300 mm) |
| Removal Counterweight Clearance | 3.9 ft in (1186 mm) |
Undercarriage
| Track Gauge | 8.5 ft in (2590 mm) |
| Shoe Size | 23.63 in (600 mm) |
| Ground Pressure | 9.5 psi (65.51 kPa) |
| Max Travel Speed | 3.42 mph (5.5 km/h) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2238 |
| Engine Model | SA6D114E |
| Gross Power | 232 hp (173 kw) |
| Power Measured @ | 1750 rpm |
| Displacement | 504.7 cu in (8.3 L) |
Operational
| Operating Weight | 71606.2 lb (32480 kg) |
| Fuel Capacity | 142.7 gal (540 L) |
| Hydraulic System Fluid Capacity | 54.2 gal (205 L) |
| Hydraulic System Relief Valve Pressure | 5050 psi (34818.5 kPa) |
| Hydraulic Pump Flow Capacity | 132.1 gal/min (500 L/min) |
Swing Mechanism
| Swing Speed | 10 rpm |
Buckets
| Reference Bucket Capacity | 1.8 yd3 (1.4 m3) |
| Minimum Bucket Capacity | 0.7 yd3 (0.6 m3) |
| Maximum Bucket Capacity | 2.4 yd3 (1.8 m3) |
