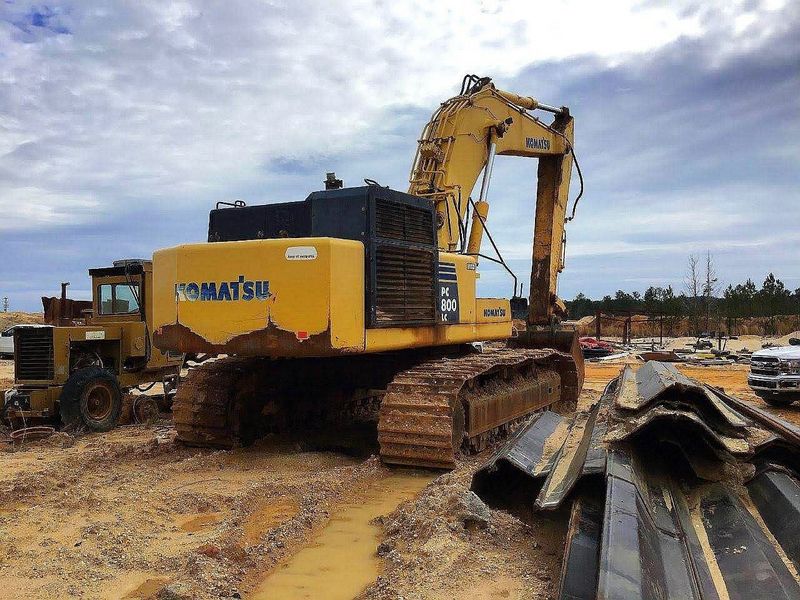

Komatsu PC800LC-8
Browse All Komatsu or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 47.27 ft in (14405 mm) |
| Shipping Height Of Unit | 15.39 ft in (4690 mm) |
| Max Cutting Height | 38.85 ft in (11840 mm) |
| Max Loading Height | 26.73 ft in (8145 mm) |
| Max Reach Along Ground | 44.17 ft in (13460 mm) |
| Max Vertical Wall Digging Depth | 18.3 ft in (5575 mm) |
| Max Digging Depth | 28.22 ft in (8600 mm) |
| Boom/Stick Option (Hex) 1 | Stick 3600 mm (11'10") |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 47.36 ft in (14435 mm) |
| Max Cutting Height | 39.34 ft in (11990 mm) |
| Shipping Height Of Unit | 18.48 ft in (5630 mm) |
| Max Loading Height | 27.22 ft in (8295 mm) |
| Max Reach Along Ground | 46.95 ft in (14310 mm) |
| Max Vertical Wall Digging Depth | 21.58 ft in (6575 mm) |
| Max Digging Depth | 31.47 ft in (9590 mm) |
| Boom/Stick Option (Hex) 2 | Stick 4600 mm (15'1") |
Boom/Stick Option (Hex) 3
| Shipping Length Of Unit | 46.31 ft in (14115 mm) |
| Max Cutting Height | 41.64 ft in (12690 mm) |
| Max Loading Height | 29.17 ft in (8890 mm) |
| Shipping Height Of Unit | 20.54 ft in (6260 mm) |
| Max Reach Along Ground | 50.48 ft in (15385 mm) |
| Max Vertical Wall Digging Depth | 25.99 ft in (7920 mm) |
| Max Digging Depth | 34.77 ft in (10595 mm) |
| Boom/Stick Option (Hex) 3 | Stick 5600 mm (18'4") |
Dimensions
| Ground Clearance | 2.75 ft in (840 mm) |
| Height To Top Of Cab | 11.67 ft in (3565 mm) |
| Width To Outside Of Tracks | 13.05 ft in (3975 mm) |
| Length Of Track On Ground | 16.5 ft in (5020 mm) |
| Tail Swing Radius | 14.42 ft in (4400 mm) |
| Removal Counterweight Clearance | 5.08 ft in (1560 mm) |
Undercarriage
| Track Gauge | 11.49 ft in (3500 mm) |
| Shoe Size | 39.77 in (1010 mm) |
| Max Travel Speed | 2.6 mph (4.2 km/h) |
| Number Of Carrier Rollers Per Side | 3 |
| Number Of Shoes Per Side | 51 |
| Drawbar Pull | 125668.19 lb (559 kN) |
| Number Of Track Rollers Per Side | 9 |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2238 |
| Engine Model | SAA6D140E-5 |
| Gross Power | 496 hp (370 kw) |
| Net Power | 487 hp (363 kw) |
| Power Measured @ | 1800 rpm |
| Aspiration | turbocharged, aftercooled, cooled EGR |
| Displacement | 930 cu in (15.3 L) |
Operational
| Operating Weight | 179900 lb (81600 kg) |
| Fuel Capacity | 258.9 gal (980 L) |
| Cooling System Fluid Capacity | 26.5 gal (100 L) |
| Hydraulic System Fluid Capacity | 116.2 gal (440 L) |
| Operating Voltage | 24 V |
| Engine Oil Capacity | 15.3 gal (58 L) |
| Swing Drive Fluid Capacity | 13 gal (49 L) |
| Alternator Supplied Amperage | 75 amps |
| Hydraulic System Relief Valve Pressure | 4980 psi (34335.9 kPa) |
| Hydraulic Pump Flow Capacity | 261 gal/min (988 L/min) |
Swing Mechanism
| Swing Speed | 6.8 rpm |
| Swing Torque | 209461 lb ft (283991 Nm) |
Buckets
| Reference Bucket Capacity | 4.1 yd3 (3.1 m3) |
