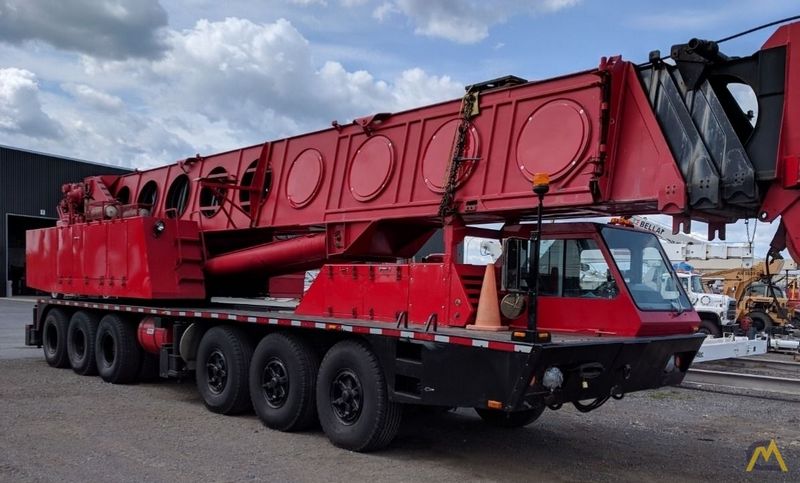

Grove TM1075
Browse All Grove or Hydraulic Truck Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 44 ft in (13.42 m) |
| Max Height @ Max Raise Angle - No Jib | 172 ft in (52.43 m) |
| Min Working Radius | 12 ft in (3.66 m) |
| Max Working Radius | 145 ft in (44.2 m) |
| Max Elevating Angle | 80 degrees |
| Max Lift Capacity | 200000 lb (90718.48 kg) |
| Swing Speed | 1.9 rpm |
| Number Of Sections | 5 |
Dimensions
| Transport Length | 51.75 ft in (15773 mm) |
| Transport Width | 9.84 ft in (2997 mm) |
| Transport Height | 12.93 ft in (3940 mm) |
| Ground Clearance | 1.2 ft in (365 mm) |
| Width W/ Outriggers Extended | 25.44 ft in (7753 mm) |
| Carrier Length | 43.48 ft in (13252 mm) |
| Upper Structure Tail Swing Radius | 16.11 ft in (4910 mm) |
Upper Structure Engine
| Make | Grove |
| Model | V555-C230 |
| Net Power | 212 hp (158.1 kw) |
| Power Measured @ | 3300 rpm |
| Max Torque | 394 lb ft (534.2 Nm) |
| Torque Measured @ | 1800 rpm |
| Displacement | 555 cu in (9.1 L) |
Carrier Engine
| Make | Grove |
| Model | NTC350 |
| Net Power | 315 hp (234.9 kw) |
| Power Measured @ | 2100 rpm |
| Max Torque | 903 lb ft (1224.4 Nm) |
| Torque Measured @ | 1500 rpm |
| Displacement | 855 cu in (14.1 L) |
Operational
| Operating Weight | 147367 lb (66844.6 kg) |
| Number Of Axels | 6 |
| Upper Structure Fuel Capacity | 60 gal (227.2 L) |
| Carrier Fuel Capacity | 100 gal (378.6 L) |
| Upper Structure Hydraulic System Fluid Capacity | 300 gal (1135.7 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 53 amps |
| Tire Size | 14.00x20,20ply |
Transmission
| Transmission Type | Fuller Roadranger RT009513 |
| Number Of Forward Gears | 13 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 45.9 mph (73.8 km/h) |
