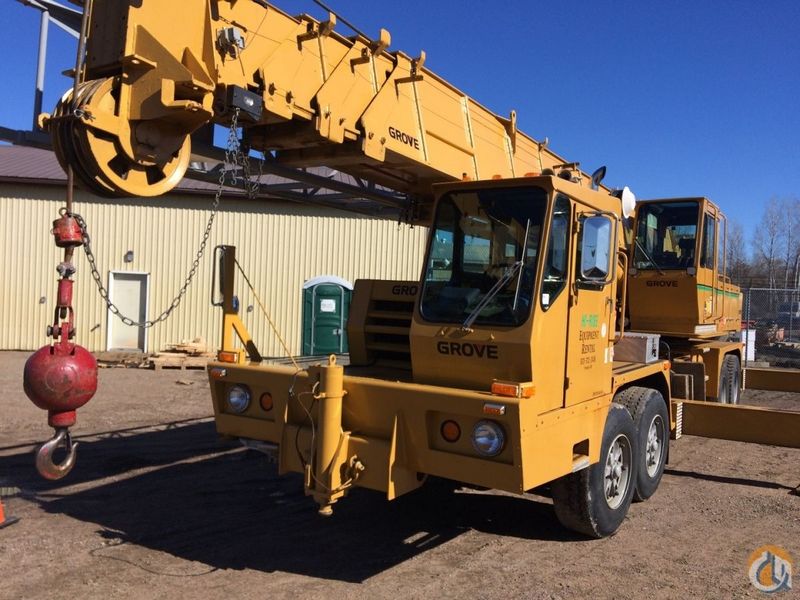

Grove TMS300B
Browse All Grove or Hydraulic Truck Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 34 ft in (10.37 m) |
| Max Height @ Max Raise Angle - No Jib | 104 ft in (31.7 m) |
| Min Working Radius | 10 ft in (3.05 m) |
| Max Working Radius | 100 ft in (30.48 m) |
| Max Elevating Angle | 76 degrees |
| Max Lift Capacity | 82673.35 lb (37500 kg) |
| Swing Speed | 2.6 rpm |
| Number Of Sections | 4 |
Dimensions
| Transport Length | 43.9 ft in (13380 mm) |
| Transport Width | 8 ft in (2438 mm) |
| Transport Height | 10.82 ft in (3296 mm) |
| Ground Clearance | 0.8 ft in (241 mm) |
| Width W/ Outriggers Extended | 20.5 ft in (6248 mm) |
| Carrier Length | 36.32 ft in (11070 mm) |
| Upper Structure Tail Swing Radius | 10.8 ft in (3289 mm) |
Upper Structure Engine
| Make | Grove |
Carrier Engine
| Make | Grove |
| Model | 6-71N |
| Gross Power | 230.7 hp (172 kw) |
| Power Measured @ | 2100 rpm |
| Max Torque | 611 lb ft (828.5 Nm) |
| Torque Measured @ | 1600 rpm |
| Displacement | 426 cu in (7 L) |
| Number Of Cylinders | 6 |
Operational
| Operating Weight | 72627 lb (32943.1 kg) |
| Number Of Axels | 4 |
| Carrier Fuel Capacity | 90 gal (340.7 L) |
| Upper Structure Hydraulic System Fluid Capacity | 127 gal (480.8 L) |
| Operating Voltage | 24 V |
| Tire Size | front 15.00x22.5-16PR rear 11.00x20-14PR |
Transmission
| Transmission Type | Manual |
| Number Of Forward Gears | 13 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 51.5 mph (82.9 km/h) |
