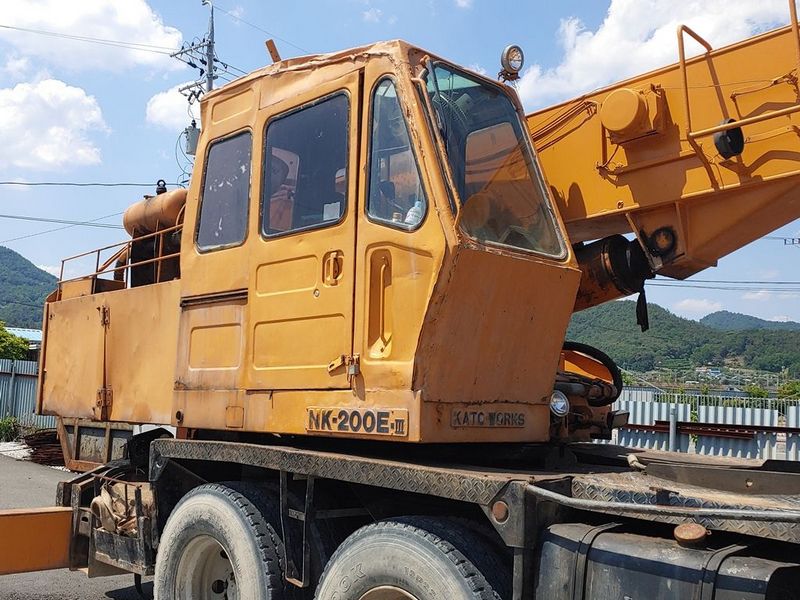

Kato NK200E-V
Browse All Kato or Hydraulic Truck Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 42.66 ft in (13 m) |
| Max Height @ Max Raise Angle - No Jib | 91.87 ft in (28 m) |
| Min Working Radius | 8.21 ft in (2.5 m) |
| Max Working Radius | 80.39 ft in (24.5 m) |
| Max Elevating Angle | 80 degrees |
| Number Of Sections | 3 |
| Max Lift Capacity | 44092.46 lb (20000 kg) |
| Swing Speed | 2.6 rpm |
Dimensions
| Transport Length | 40.79 ft in (12430 mm) |
| Transport Width | 8.21 ft in (2500 mm) |
| Transport Height | 10.83 ft in (3300 mm) |
| Width W/ Outriggers Extended | 18.38 ft in (5600 mm) |
| Upper Structure Tail Swing Radius | 10.57 ft in (3220 mm) |
Carrier Engine
| Make | Kato |
| Model | 6D22-1A |
| Gross Power | 221.3 hp (165 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 563.5 lb ft (764 Nm) |
| Torque Measured @ | 1400 rpm |
| Displacement | 680.4 cu in (11.2 L) |
Operational
| Operating Weight | 48942.7 lb (22200 kg) |
| Carrier Fuel Capacity | 52.9 gal (200 L) |
| Upper Structure Hydraulic System Fluid Capacity | 81.9 gal (310 L) |
| Operating Voltage | 24 V |
| Tire Size | 10.00-20-14PR |
Transmission
| Transmission Type | synchromesh and constantmesh gear |
| Number Of Forward Gears | 5 |
| Number Of Reverse Gears | 1 |
| Max Speed - Forward | 40.4 mph (65 km/h) |
