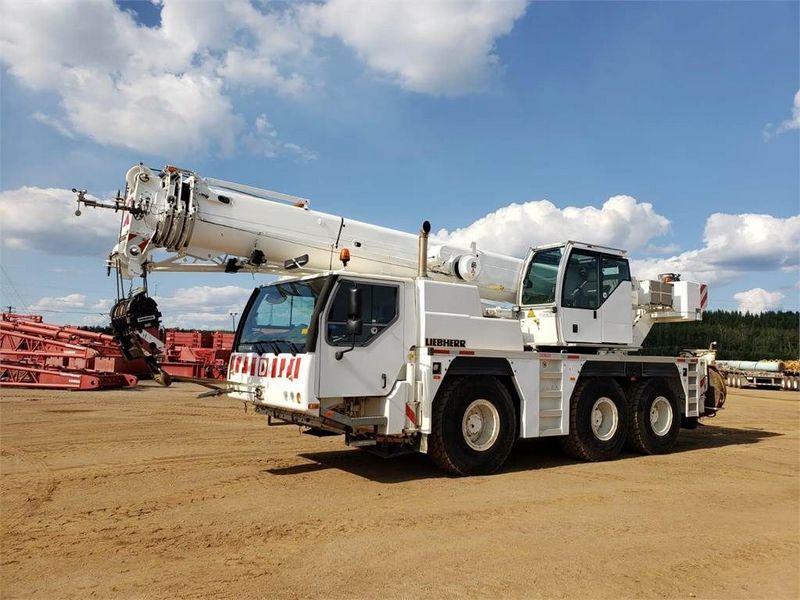

Liebherr LTM1045-3.1
Browse All Liebherr or Hydraulic Truck Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 33.8 ft in (10.3 m) |
| Max Height @ Max Raise Angle - No Jib | 111.55 ft in (34 m) |
| Min Working Radius | 9.85 ft in (3 m) |
| Max Working Radius | 98.43 ft in (30 m) |
| Max Elevating Angle | 81 degrees |
| Number Of Sections | 4 |
| Max Lift Capacity | 99208.03 lb (45000 kg) |
| Swing Speed | 2.4 rpm |
Dimensions
| Transport Length | 36.8 ft in (11216 mm) |
| Transport Width | 8.8 ft in (2680 mm) |
| Transport Height | 12.8 ft in (3900 mm) |
| Carrier Length | 29.89 ft in (9110 mm) |
| Upper Structure Tail Swing Radius | 11.35 ft in (3457 mm) |
Carrier Engine
| Make | Liebherr |
| Model | D926L A6 |
| Gross Power | 367 hp (273.7 kw) |
| Max Torque | 1720 lb ft (2332.1 Nm) |
Operational
| Carrier Fuel Capacity | 92.5 gal (350 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 170 amps |
| Tire Size | 14 R25 |
Transmission
| Transmission Type | ZF 12-speed gear box with automatic control system AS-TRONIC |
| Number Of Forward Gears | 12 |
