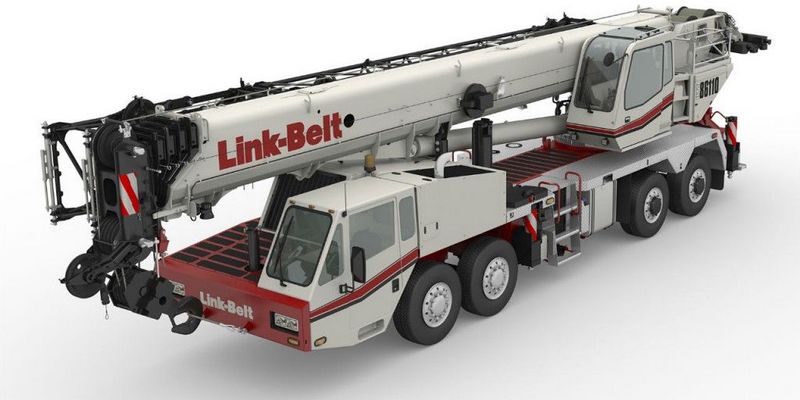

Link-Belt HTT-86110
Browse All Link-Belt or Hydraulic Truck Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 99 ft in (30.18 m) |
| Max Height @ Max Raise Angle - No Jib | 173 ft in (52.74 m) |
| Max Elevating Angle | 80 degrees |
| Number Of Sections | 6 |
Dimensions
| Transport Length | 45.11 ft in (13749.53 mm) |
| Transport Width | 9.11 ft in (2776.73 mm) |
| Transport Height | 11.5 ft in (3505.2 mm) |
| Wheelbase | 23.5 ft in (7162.8 mm) |
| Ground Clearance | 10.12 ft in (3084.58 mm) |
| Width W/ Outriggers Extended | 26.3 ft in (8016.24 mm) |
| Carrier Length | 39.7 ft in (12100 mm) |
| Upper Structure Tail Swing Radius | 14.01 ft in (4270 mm) |
Upper Structure Engine
| Make | Link-Belt |
| Model | ISX12 |
| Gross Power | 414 hp (308.8 kw) |
| Net Power | 450 hp (335.6 kw) |
| Power Measured @ | 1800 rpm |
| Max Torque | 1550.4 lb ft (2102 Nm) |
| Torque Measured @ | 1200 rpm |
| Displacement | 726.2 cu in (11.9 L) |
Carrier Engine
| Make | Link-Belt |
| Model | QSX15 |
| Gross Power | 450 hp (335.6 kw) |
| Net Power | 480 hp (358 kw) |
| Power Measured @ | 1800 rpm |
| Max Torque | 1550.4 lb ft (2102 Nm) |
| Torque Measured @ | 1400 rpm |
| Displacement | 915.4 cu in (15 L) |
Operational
| Def Tank Capacity | 10 gal (37.8 L) |
| Fuel Capacity | 95 gal (359.6 L) |
| Upper Structure Hydraulic System Fluid Capacity | 144.1 gal (545.1 L) |
| Tires | Front 445/65R22.5 / Rear 445/65R22.5 |
| Ground Pressure | 40 psi (275.8 kPa) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 145 amps |
Transmission
| Number Of Forward Gears | 12 |
| Number Of Reverse Gears | 2 |
