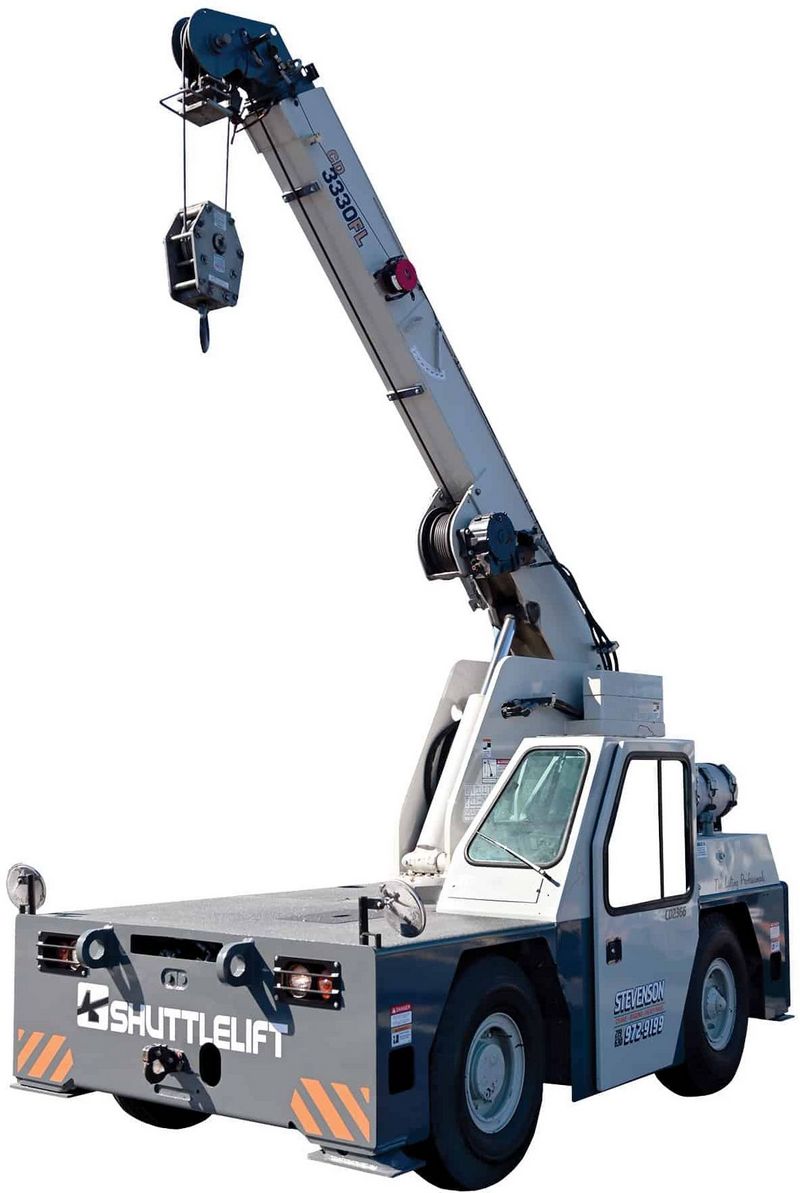

Shuttlelift 3330F
Browse All Shuttlelift or Hydraulic Truck Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 9.52 ft in (2.9 m) |
| Max Height @ Max Raise Angle - No Jib | 21.33 ft in (6.5 m) |
| Min Working Radius | 5 ft in (1.53 m) |
| Max Working Radius | 24.5 ft in (7.47 m) |
| Max Elevating Angle | 60 degrees |
| Max Lift Capacity | 17000 lb (7711.08 kg) |
| Swing Speed | 2.05 rpm |
| Number Of Sections | 3 |
Dimensions
| Transport Length | 12.6 ft in (3840 mm) |
| Transport Width | 6.53 ft in (1990 mm) |
| Transport Height | 7.85 ft in (2390 mm) |
| Ground Clearance | 0.83 ft in (250 mm) |
| Width W/ Outriggers Extended | 10.18 ft in (3100 mm) |
| Carrier Length | 11.98 ft in (3650 mm) |
| Upper Structure Tail Swing Radius | 3.65 ft in (1110 mm) |
Carrier Engine
| Make | Shuttlelift |
| Model | QSB 3.3L |
| Gross Power | 99 hp (73.8 kw) |
| Power Measured @ | 2600 rpm |
| Displacement | 201.4 cu in (3.3 L) |
Operational
| Operating Weight | 13399.7 lb (6078 kg) |
| Number Of Axels | 2 |
| Carrier Fuel Capacity | 18.5 gal (70 L) |
| Upper Structure Hydraulic System Fluid Capacity | 23.6 gal (89 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 63 amps |
| Tire Size | 10.00x15 14PR |
Transmission
| Transmission Type | Clark synchromesh |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 22.2 mph (35.6 km/h) |
