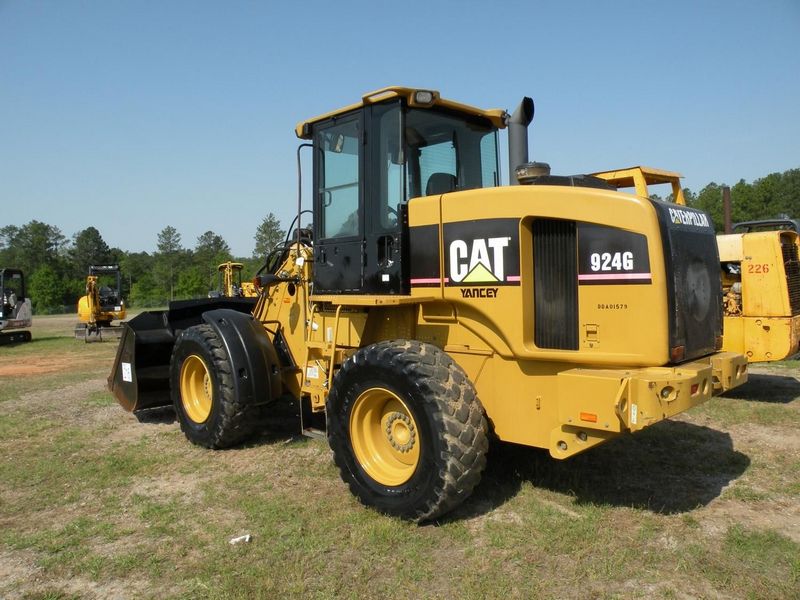

Caterpillar 924G Hook On
Browse All Caterpillar or Integrated Tool Carrier Models
Contents:
Dimensions
| Length W/ Bucket On Ground | 23.56 ft in (7179 mm) |
| Height To Top Of Cab | 10.37 ft in (3159 mm) |
| Wheelbase | 9.19 ft in (2800 m) |
| Ground Clearance | 1.21 ft in (368 mm) |
| Hinge Pin Max Height | 11.45 ft in (3488 mm) |
| Dump Clearance At Max Lift | 9.06 ft in (2760 mm) |
| Max Lift Height | 11.71 ft in (3569 mm) |
| Hook Height At Max Lift - Standard | 17.62 ft in (5370 mm) |
| Hook Height At Max Lift - Extended | 23.39 ft in (7129 mm) |
| Length With Out Forks On Ground | 25 ft in (7618 mm) |
| Reach At Max Height And Dump | 3.51 ft in (1067 mm) |
Engine
| Engine Model | 3056T |
| Gross Power | 110 hp (82.1 kw) |
| Displacement | 366.2 cu in (6 L) |
Operational
| Operating Weight | 22839.9 lb (10360 kg) |
| Fuel Capacity | 52.4 gal (198 L) |
| Hydraulic System Fluid Capacity | 39.7 gal (150 L) |
| Static Tipping Load - Bucket | 16468.6 lb (7470 kg) |
| Static Tipping Load - Forks | 11614 lb (5268 kg) |
| Static Tipping Load - Material Handler | 6572 lb (2981 kg) |
| Tire Size | 17.5-25 12PR (L-2) |
Transmission
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed Forward | 24 mph (38.5 km/h) |
| Max Speed Reverse | 13.5 mph (21.6 km/h) |
Hydraulic System
| Raise Time | 5.1 sec |
| Dump Time | 1.4 sec |
| Lower Time | 2.4 sec |
Bucket
| Breakout Force | 21900 lb (97.5 kN) |
Blade
| Width | 8.4 ft in (2550 mm) |
Bucket
| Bucket Capacity - Heaped | 2.4 yd3 (1.8 m3) |
| Bucket Capacity - Struck | 2 yd3 (1.5 m3) |
