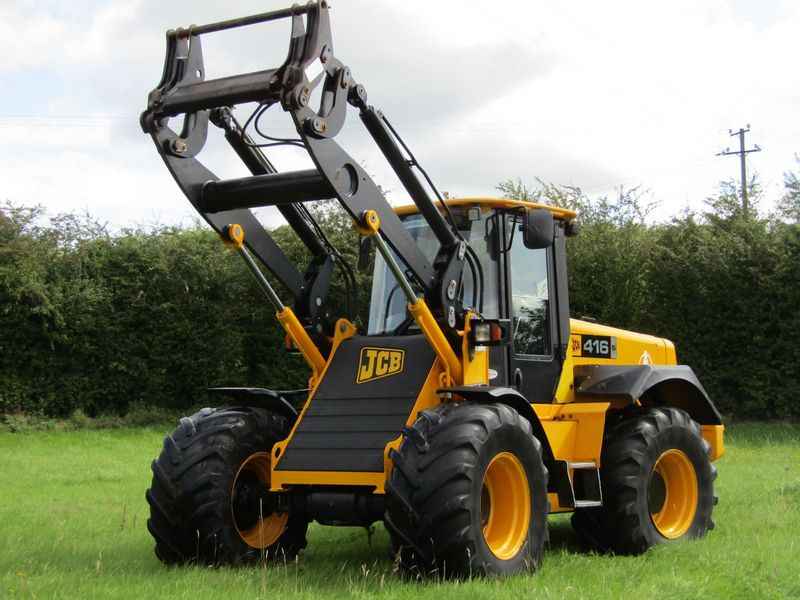

JCB 416S High Lift
Browse All JCB or Integrated Tool Carrier Models
Contents:
Dimensions
| Length W/ Bucket On Ground | 24 ft in (7314 mm) |
| Width Over Tires | 8.04 ft in (2450 mm) |
| Height To Top Of Cab | 9.75 ft in (2971 mm) |
| Wheelbase | 9.19 ft in (2800 m) |
| Ground Clearance | 1.19 ft in (360 mm) |
| Hinge Pin Max Height | 18.49 ft in (5634 mm) |
| Dump Clearance At Max Lift | 11.28 ft in (3436 mm) |
| Max Lift Height | 14.1 ft in (4297 mm) |
| Fork Tine Length | 4.01 ft in (1220 mm) |
| Reach At Max Height And Dump | 3.93 ft in (1195 mm) |
Engine
| Engine Make | 2347 |
| Engine Model | BTAA5.9C |
| Gross Power | 152 hp (113.4 kw) |
| Net Power | 142 hp (105.9 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 455.1 lb ft (617 Nm) |
| Torque Measured @ | 1600 rpm |
| Displacement | 360.1 cu in (5.9 L) |
| Aspiration | turbo charged |
Operational
| Operating Weight | 22266.7 lb (10100 kg) |
| Fuel Capacity | 37 gal (140 L) |
| Cooling System Fluid Capacity | 5.7 gal (21.5 L) |
| Engine Oil Capacity | 3.7 gal (14 L) |
| Transmission Fluid Capacity | 7.3 gal (27.5 L) |
| Front Diff Fluid Capacity | 6.1 gal (23 L) |
| Rear Diff Fluid Capacity | 6.1 gal (23 L) |
| Hydraulic System Fluid Capacity | 34.4 gal (130 L) |
| Turning Radius | 17.8 ft in (5410 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 70 amps |
| Static Tipping Load - Bucket | 9918.6 lb (4499 kg) |
| Static Tipping Load - Forks | 7806.6 lb (3541 kg) |
| Tire Size | 19.5LR24 XM27 |
Transmission
| Transmission Type | smooth shift powershift |
| Number Of Forward Gears | 6 |
| Number Of Reverse Gears | 3 |
| Max Speed Forward | 23.7 mph (38 km/h) |
| Max Speed Reverse | 16.7 mph (26.8 km/h) |
Hydraulic System
| Pump Type | variable displacement piston pump |
| Relief Valve Setting | 3335 psi (22994 kPa) |
| Pump Flow Capacity | 586.5 gal/min (2220 L/min) |
| Raise Time | 4.6 sec |
| Dump Time | 1.4 sec |
| Lower Time | 3 sec |
Bucket
| Breakout Force | 22795.7 lb (101.4 kN) |
| Bucket Capacity - Heaped | 1.9 yd3 (1.4 m3) |
| Bucket Capacity - Struck | 1.6 yd3 (1.2 m3) |
