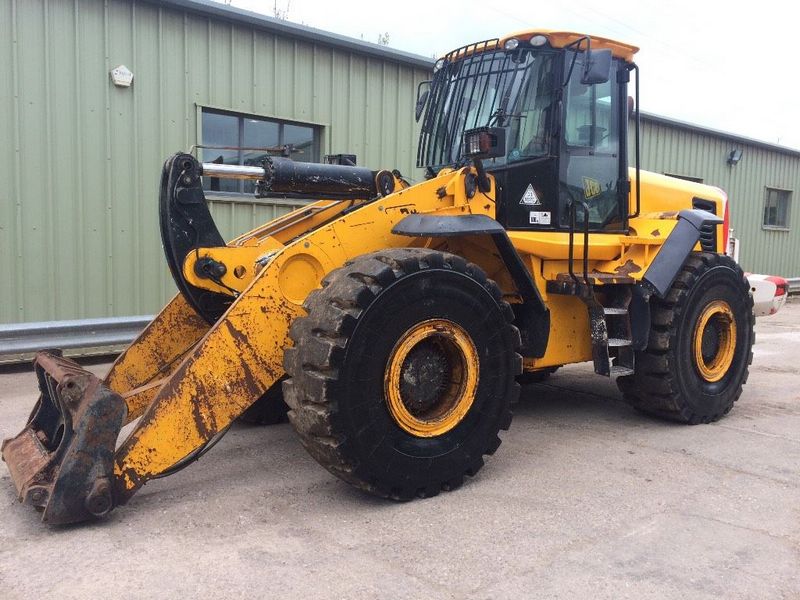

JCB 456 Wastemaster
Browse All JCB or Integrated Tool Carrier Models
Contents:
Dimensions
| Length W/ Bucket On Ground | 31.07 ft in (9470 mm) |
| Width Over Tires | 8.87 ft in (2702 mm) |
| Height To Top Of Cab | 11.19 ft in (3410 mm) |
| Wheelbase | 10.83 ft in (3300 m) |
| Ground Clearance | 1.55 ft in (470 mm) |
| Hinge Pin Max Height | 17.43 ft in (5310 mm) |
| Dump Clearance At Max Lift | 13.23 ft in (4030 mm) |
| Reach At Max Height And Dump | 4.34 ft in (1320 mm) |
| Bucket | GP |
Engine
| Engine Make | 2347 |
| Engine Model | 6CT 8.3C |
| Gross Power | 216 hp (161.1 kw) |
| Net Power | 197 hp (147 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 665.3 lb ft (902 Nm) |
| Torque Measured @ | 1400 rpm |
| Displacement | 506.5 cu in (8.3 L) |
| Aspiration | turbocharged |
Operational
| Operating Weight | 47679.4 lb (21627 kg) |
| Fuel Capacity | 97.8 gal (370 L) |
| Cooling System Fluid Capacity | 10.6 gal (40 L) |
| Engine Oil Capacity | 5 gal (18.9 L) |
| Transmission Fluid Capacity | 9 gal (34 L) |
| Front Diff Fluid Capacity | 18.3 gal (69 L) |
| Rear Diff Fluid Capacity | 13.5 gal (51 L) |
| Hydraulic System Fluid Capacity | 56.8 gal (215 L) |
| Turning Radius | 21.8 ft in (6630 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 70 amps |
| Rear Axle Oscillation | 25 degrees |
| Static Tipping Load - Bucket | 21358.4 lb (9688 kg) |
| Tire Size | Michelin 23.5R25 XHA L3 |
Transmission
| Transmission Type | smooth shift powershift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed Forward | 23.3 mph (37.4 km/h) |
| Max Speed Reverse | 15.2 mph (24.4 km/h) |
Hydraulic System
| Pump Type | twin variable displacement piston pump |
| Relief Valve Setting | 3625 psi (24993.5 kPa) |
| Pump Flow Capacity | 108.4 gal/min (410 L/min) |
| Raise Time | 5.8 sec |
| Dump Time | 1.2 sec |
| Lower Time | 4.1 sec |
Bucket
| Breakout Force | 32597.3 lb (145 kN) |
| Bucket Capacity - Heaped | 4.6 yd3 (3.5 m3) |
| Bucket Capacity - Struck | 3.8 yd3 (2.9 m3) |
