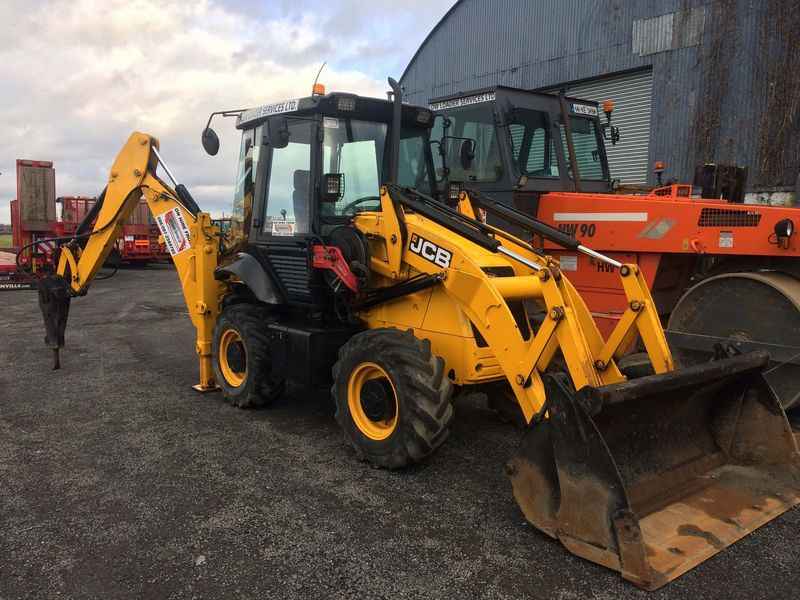

JCB 2CX Streetmaster
Browse All JCB or Loader Backhoe Models
Contents:
Backhoe
| Load Height - Std | 9.22 ft in (2809 mm) |
| Reach From Swivel - Std | 13.06 ft in (3980 mm) |
| Dig Depth - Std | 10.02 ft in (3053 mm) |
| Reach At Load Height - Std | 4.62 ft in (1406 mm) |
| Load Height - Ext | 10.62 ft in (3235 mm) |
| Bucket Dig Force - Ext | 9259 lb (4199.82 kg) |
| Bucket Dig Force - Std | 9259 lb (4199.82 kg) |
| Dig Depth - Ext | 12.15 ft in (3701 mm) |
| Reach At Load Height - Ext | 6.23 ft in (1897 mm) |
| Load At Max Lift - Ext | 1607.17 lb (729 kg) |
| Load At Max Lift - Std | 1810 lb (821 kg) |
| Reach From Swivel - Ext | 15.1 ft in (4600 mm) |
Dimensions
| Transport Length | 17.72 ft in (5400 mm) |
| Transport Width | 6.07 ft in (1850 mm) |
| Transport Height | 8.93 ft in (2720 mm) |
| Wheelbase | 6.53 ft in (1990 mm) |
| Ground Clearance | 1.02 ft in (310 mm) |
| Height To Top Of Suspended Cab | 8.7 ft in (2650 mm) |
Loader
| Clearance At Max Dump Height | 6.57 ft in (2000 mm) |
| Reach At Max Dump Height | 2.73 ft in (830 mm) |
| Dig Depth | 3.94 in (100 mm) |
| Bucket Breakout Force | 11162 lb (49.66 kN) |
| Bucket Width | 72.84 in (1850 mm) |
| Bucket Capacity | 0.79 yd3 (0.6 m3) |
| Lift Capacity At Full Height | 4624 lb (2097.42 kg) |
Engine
| Gross Power | 74.2 hp (55.4 kw) |
| Net Power | 69.1 hp (51.6 kw) |
| Power Measured @ | 2000 rpm |
| Torque Measured @ | 1200 rpm |
| Net Max Torque | 300 lb ft (406.8 Nm) |
| Displacement | 268.6 cu in (4.4 L) |
Operational
| Fuel Capacity | 22 gal (83 L) |
| Hydraulic System Fluid Capacity | 22 gal (83 L) |
| Oil System Fluid Capacity | 4 gal (15 L) |
| Cooling System Fluid Capacity | 4.8 gal (18 L) |
| Transmission Fluid Capacity | 4.5 gal (17 L) |
| Front Axle Fluid Capacity | 2.4 gal (9 L) |
| Rear Axle Fluid Capacity | 2.4 gal (9 L) |
| Tire Size Front - 2wd / 4wd | 12.5x18x10 |
| Rear Tires Size 2wd/4wd | 12.5x18x10 |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 95 amps |
Transmission
| Transmission Type | Syncroshuttle |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 21.3 mph (34.2 km/h) |
| Max Speed Reverse | 21.3 mph (34.2 km/h) |
Hydraulic
| Pump Type | open centre system |
| Pump Flow Capacity | 20.9 gal/min (79 L/min) |
| Relief Valve Pressure | 3335 psi (22994 kPa) |
