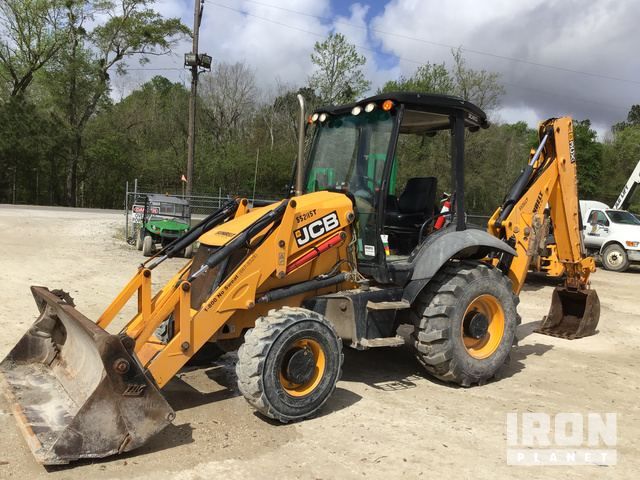

JCB 4CX 17FT (217S)
Browse All JCB or Loader Backhoe Models
Contents:
Backhoe
| Load Height - Std | 13 ft in (3960 mm) |
| Reach From Swivel - Std | 20.94 ft in (6380 mm) |
| Dig Depth - Std | 17.59 ft in (5360 mm) |
| Reach At Load Height - Std | 7.16 ft in (2180 mm) |
| Load Height - Ext | 14.67 ft in (4470 mm) |
| Bucket Dig Force - Ext | 12200 lb (5533.83 kg) |
| Bucket Dig Force - Std | 12200 lb (5533.83 kg) |
| Dig Depth - Ext | 21.49 ft in (6550 mm) |
| Reach At Load Height - Ext | 10.83 ft in (3300 mm) |
| Load At Max Lift - Ext | 3240 lb (1469.64 kg) |
| Load At Max Lift - Std | 5120 lb (2322.4 kg) |
| Reach From Swivel - Ext | 24.68 ft in (7520 mm) |
Dimensions
| Transport Length | 24.51 ft in (7470 mm) |
| Transport Width | 8.01 ft in (2440 mm) |
| Transport Height | 13.59 ft in (4140 mm) |
| Wheelbase | 7.58 ft in (2310 mm) |
| Ground Clearance | 1.12 ft in (340 mm) |
| Height To Top Of Suspended Cab | 9.42 ft in (2870 mm) |
Loader
| Clearance At Max Dump Height | 8.83 ft in (2690 mm) |
| Reach At Max Dump Height | 2.83 ft in (860 mm) |
| Dig Depth | 7.88 in (200 mm) |
| Bucket Breakout Force | 14567 lb (64.8 kN) |
| Bucket Width | 96 in (2438.4 mm) |
| Bucket Capacity | 1.6 yd3 (1.23 m3) |
| Lift Capacity At Full Height | 9046 lb (4103.2 kg) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2257 |
| Engine Model | 444 |
| Gross Power | 100 hp (74.6 kw) |
| Net Power | 97.6 hp (72.8 kw) |
| Power Measured @ | 2200 rpm |
| Torque Measured @ | 1300 rpm |
| Net Max Torque | 307.6 lb ft (417.1 Nm) |
| Aspiration | Turbo |
| Displacement | 268.6 cu in (4.4 L) |
Operational
| Operating Weight 2wd | 17782 lb (8065.8 kg) |
| Fuel Capacity | 42.3 gal (160 L) |
| Max Weight | 18968 lb (8603.8 kg) |
| Hydraulic System Fluid Capacity | 33.6 gal (127 L) |
| Oil System Fluid Capacity | 4 gal (15 L) |
| Cooling System Fluid Capacity | 6.1 gal (23 L) |
| Transmission Fluid Capacity | 4.3 gal (16 L) |
| Front Axle Fluid Capacity | 4.3 gal (16 L) |
| Rear Axle Fluid Capacity | 4.3 gal (16 L) |
| Turning Radius | 17.3 ft in (5250 mm) |
| Tire Size Front - 2wd / 4wd | 16.9-24 R4 12 ply |
| Rear Tires Size 2wd/4wd | 16.9-24 R4 12 ply |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 95 amps |
Transmission
| Transmission Type | JCB powershift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 22.5 mph (36.3 km/h) |
| Max Speed Reverse | 22.5 mph (36.3 km/h) |
Hydraulic
| Pump Type | dual gear pump |
| Pump Flow Capacity | 41 gal/min (155 L/min) |
| Relief Valve Pressure | 3300 psi (22752.7 kPa) |
