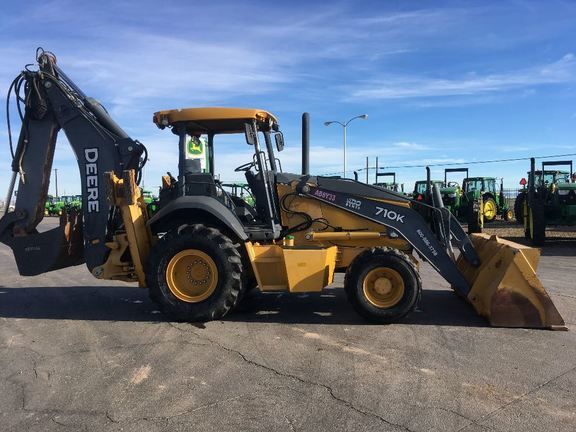

John Deere 710K
Browse All John Deere or Loader Backhoe Models
Contents:
Backhoe
| Load Height - Std | 14.3 ft in (4358.65 mm) |
| Reach From Swivel - Std | 22.6 ft in (6888.48 mm) |
| Dig Depth - Std | 17.11 ft in (5212.08 mm) |
| Load Height - Ext | 17 ft in (5181.61 mm) |
| Reach From Swivel - Ext | 26.1 ft in (7955.28 mm) |
| Dig Depth - Ext | 22.4 ft in (6827.52 mm) |
| Bucket Dig Force - Std | 17000 lb (7711.08 kg) |
Dimensions
| Transport Length | 27 ft in (8229.6 mm) |
| Transport Width | 7.6 ft in (2316.48 mm) |
| Transport Height | 13.83 ft in (4210 mm) |
| Wheelbase | 8.6 ft in (2621.29 mm) |
| Ground Clearance | 1.17 ft in (356 mm) |
| Height To Top Of Suspended Cab | 9.9 ft in (3017.52 mm) |
Loader
| Clearance At Max Dump Height | 9.7 ft in (2956.56 mm) |
| Reach At Max Dump Height | 27.2 ft in (8290.56 mm) |
| Dig Depth | 4.1 in (104.14 mm) |
| Lift Capacity At Full Height | 9285.87 lb (4212 kg) |
| Bucket Capacity | 1.63 yd3 (1.24 m3) |
| Bucket Width | 97.01 in (2464 mm) |
| Bucket Breakout Force | 15540 lb (69.13 kN) |
Engine
| Engine Make | John Deere PowerTech |
| Engine Model | E 6068HT079 |
| Net Power | 130.1 hp (97 kw) |
| Power Measured @ | 2000 rpm |
| Net Torque Rise | 32 % |
| Net Max Torque | 405 lb ft (549.2 Nm) |
| Aspiration | Turbocharged |
| Displacement | 415 cu in (6.8 L) |
Operational
| Operating Weight 2wd | 23796.7 lb (10794 kg) |
| Fuel Capacity | 69 gal (261.2 L) |
| Max Weight | 26742.1 lb (12130 kg) |
| Hydraulic System Fluid Capacity | 39.6 gal (150 L) |
| Oil System Fluid Capacity | 5.2 gal (19.5 L) |
| Cooling System Fluid Capacity | 9 gal (33.9 L) |
| Transmission Fluid Capacity | 4 gal (15.1 L) |
| Front Axle Fluid Capacity | 2.4 gal (9 L) |
| Rear Axle Fluid Capacity | 4.3 gal (16.1 L) |
| Turning Radius | 14.4 ft in (4370 mm) |
| Tire Size Front - 2wd / 4wd | 14.5/75-16.1,10PR F3 |
| Rear Tires Size 2wd/4wd | 21L-24,16PR R4 |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 120 amps |
Transmission
| Transmission Type | Powershift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 21.8 mph (35.1 km/h) |
| Max Speed Reverse | 16.5 mph (26.6 km/h) |
Hydraulic
| Pump Type | Axial-piston pump |
| Pump Flow Capacity | 52 gal/min (196.9 L/min) |
| Relief Valve Pressure | 3625 psi (24993.5 kPa) |
