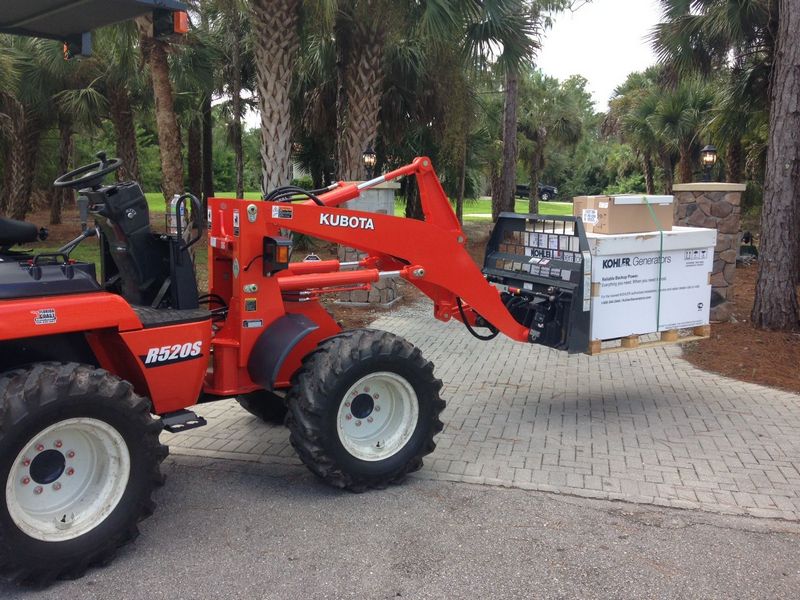

Kubota R520S
Browse All Kubota or Loader Backhoe Models
Contents:
Backhoe
| Load Height - Std | 6.7 ft in (2040 mm) |
| Reach From Swivel - Std | 12.14 ft in (3700 mm) |
| Dig Depth - Std | 9.03 ft in (2750 mm) |
Dimensions
| Transport Length | 16.9 ft in (5150 mm) |
| Transport Width | 5.78 ft in (1760 mm) |
| Transport Height | 8.47 ft in (2580 mm) |
Loader
| Clearance At Max Dump Height | 8.67 ft in (2640 mm) |
| Bucket Width | 69.3 in (1760 mm) |
| Bucket Capacity | 0.75 yd3 (0.57 m3) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2334 |
| Engine Model | V2203-RP |
| Gross Power | 44.4 hp (33.1 kw) |
| Power Measured @ | 2600 rpm |
| Displacement | 134.3 cu in (2.2 L) |
Operational
| Operating Weight 4wd | 8024.9 lb (3640 kg) |
| Turning Radius | 11.2 ft in (3385 mm) |
Transmission
| Transmission Type | LST |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 12.5 mph (20 km/h) |
Hydraulic
| Pump Type | Gear |
| Pump Flow Capacity | 11.1 gal/min (42 L/min) |
| Relief Valve Pressure | 2958 psi (20394.7 kPa) |
