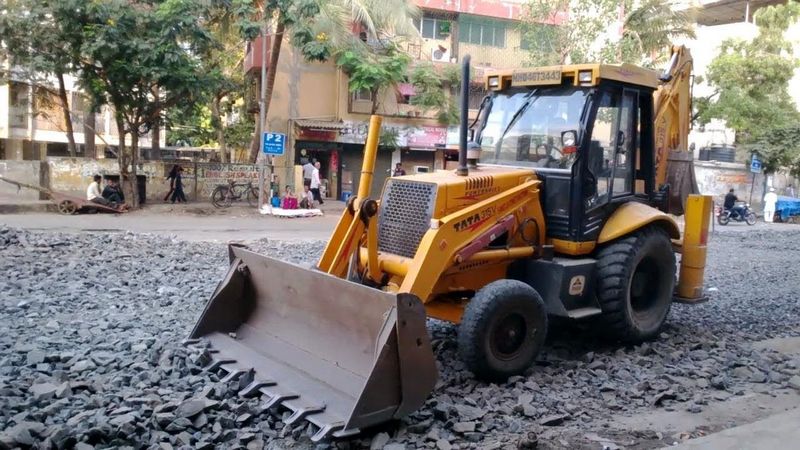

Tata Hitachi JD315V
Browse All Tata Hitachi or Loader Backhoe Models
Contents:
Backhoe
| Load Height - Std | 11.68 ft in (3560 mm) |
| Reach From Swivel - Std | 18.25 ft in (5560 mm) |
| Dig Depth - Std | 14.08 ft in (4290 mm) |
| Dig Depth - Ext | 18.02 ft in (5490 mm) |
| Reach From Swivel - Ext | 21.76 ft in (6630 mm) |
| Load Height - Ext | 14.24 ft in (4340 mm) |
Dimensions
| Transport Length | 17.26 ft in (5260 mm) |
| Transport Width | 7.67 ft in (2335 mm) |
| Transport Height | 17.26 ft in (5260 mm) |
| Wheelbase | 7.12 ft in (2168 mm) |
| Ground Clearance | 1.15 ft in (350 mm) |
Loader
| Clearance At Max Dump Height | 11.16 ft in (3400 mm) |
| Reach At Max Dump Height | 2.51 ft in (765 mm) |
| Dig Depth | 8.12 in (206 mm) |
| Lift Capacity At Full Height | 9127.14 lb (4140 kg) |
| Bucket Capacity | 1.31 yd3 (1 m3) |
Engine
| Engine Model | Tata 497TC |
| Aspiration | Turbocharged |
Operational
| Fuel Capacity | 36 gal (136 L) |
| Hydraulic System Fluid Capacity | 24.1 gal (91 L) |
| Oil System Fluid Capacity | 2.5 gal (9.4 L) |
| Cooling System Fluid Capacity | 5.8 gal (21.9 L) |
| Transmission Fluid Capacity | 3.7 gal (14 L) |
| Front Axle Fluid Capacity | 2.3 gal (8.5 L) |
| Rear Axle Fluid Capacity | 3.7 gal (14 L) |
| Turning Radius | 13.7 ft in (4170 mm) |
| Tire Size Front - 2wd / 4wd | 9-16, 16 PR |
Transmission
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 25.8 mph (41.5 km/h) |
| Max Speed Reverse | 28.8 mph (46.3 km/h) |
Hydraulic
| Pump Type | Efficient hydraulic systemm with gear type tandem pump |
| Pump Flow Capacity | 36 gal/min (136 L/min) |
