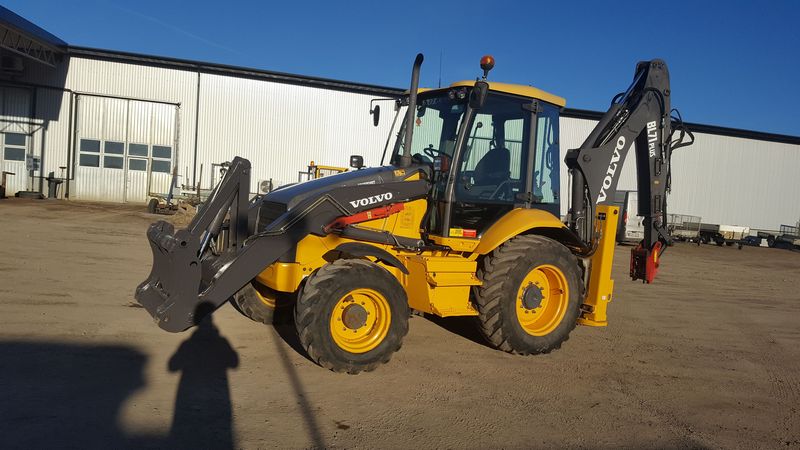

Volvo BL71
Browse All Volvo or Loader Backhoe Models
Contents:
Backhoe
| Load Height - Ext | 14.8 ft in (4509 mm) |
| Reach From Swivel - Ext | 22.26 ft in (6782 mm) |
| Dig Depth - Ext | 17.53 ft in (5343 mm) |
Dimensions
| Transport Length | 19.12 ft in (5825 mm) |
| Transport Width | 7.55 ft in (2300 mm) |
| Transport Height | 12.16 ft in (3706 mm) |
Loader
| Clearance At Max Dump Height | 8.92 ft in (2716 mm) |
| Bucket Width | 92.52 in (2350 mm) |
| Bucket Capacity | 1.31 yd3 (1 m3) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2244 |
| Engine Model | D4D |
| Gross Power | 93.9 hp (70 kw) |
| Power Measured @ | 2200 rpm |
| Displacement | 244.1 cu in (4 L) |
Operational
| Operating Weight 4wd | 18946.6 lb (8594 kg) |
| Turning Radius | 27.6 ft in (8400 mm) |
Transmission
| Transmission Type | Power Shift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 23.5 mph (37.8 km/h) |
Hydraulic
| Pump Type | VAR |
| Pump Flow Capacity | 42.3 gal/min (160 L/min) |
| Relief Valve Pressure | 3626 psi (25000 kPa) |
