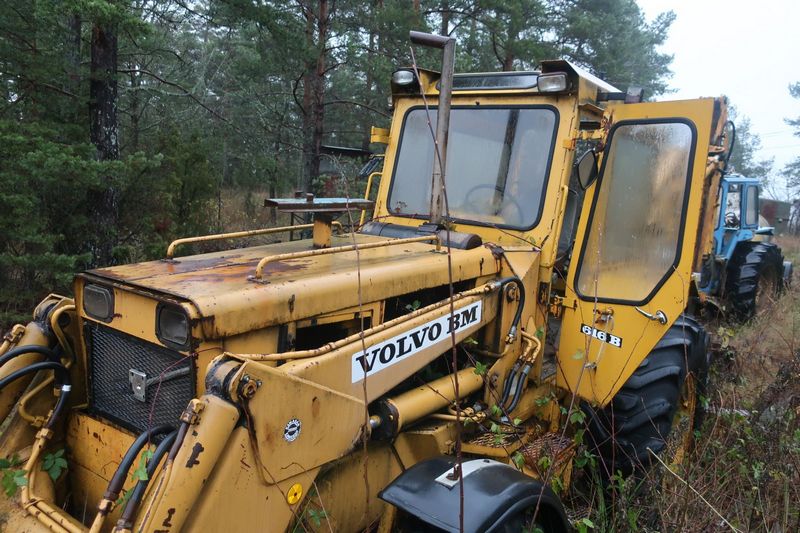

Volvo BM 616B
Browse All Volvo BM or Loader Backhoe Models
Contents:
Backhoe
| Load Height - Std | 12.37 ft in (3770 mm) |
| Reach From Swivel - Std | 19.23 ft in (5860 mm) |
| Dig Depth - Std | 13.85 ft in (4220 mm) |
| Reach At Load Height - Std | 7.94 ft in (2420 mm) |
| Bucket Dig Force - Std | 7517.77 lb (3410 kg) |
Dimensions
| Transport Length | 26.45 ft in (8060 mm) |
| Transport Height | 13.29 ft in (4050 mm) |
| Wheelbase | 7.71 ft in (2350 mm) |
| Ground Clearance | 1.34 ft in (406.39 mm) |
| Height To Top Of Suspended Cab | 9.39 ft in (2860 mm) |
Loader
| Clearance At Max Dump Height | 9.22 ft in (2810 mm) |
| Reach At Max Dump Height | 1.91 ft in (580 mm) |
| Lift Capacity At Full Height | 5730 lb (2599.09 kg) |
| Bucket Breakout Force | 9217.17 lb (41 kN) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2244 |
| Engine Model | BM D42 |
| Gross Power | 79.2 hp (59 kw) |
| Net Max Torque | 195.5 lb ft (265 Nm) |
| Displacement | 256.3 cu in (4.2 L) |
Operational
| Fuel Capacity | 25.4 gal (96 L) |
| Max Weight | 19731.4 lb (8950 kg) |
| Hydraulic System Fluid Capacity | 50.2 gal (190 L) |
| Oil System Fluid Capacity | 2.8 gal (10.5 L) |
| Cooling System Fluid Capacity | 4.3 gal (16 L) |
| Transmission Fluid Capacity | 5.9 gal (22 L) |
| Tire Size Front - 2wd / 4wd | 12.5-20/10 |
| Rear Tires Size 2wd/4wd | 18.4-34/14 |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 43 amps |
Transmission
| Transmission Type | Volvo BM hydromechanical gearbox with powershift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 19 mph (30.6 km/h) |
| Max Speed Reverse | 19 mph (30.6 km/h) |
Hydraulic
| Pump Type | gear pump |
| Pump Flow Capacity | 29.9 gal/min (113 L/min) |
| Relief Valve Pressure | 2465 psi (16995.6 kPa) |
