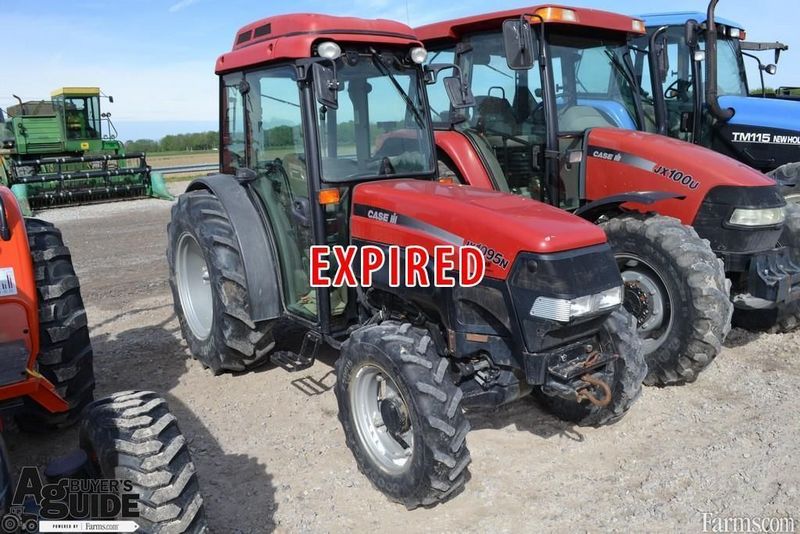

Case IH JX1095N
Browse All Case IH or MFWD Tractor Models
Contents:
Dimensions
| Overall Length | 13.18 in (4015 mm) |
| Wheelbase | 7.14 ft in (2175 mm) |
| Overall Width | 4.46 ft in (1357 mm) |
| Ground Clearance | 10.48 in (266 mm) |
| Height With Out Rops | 4.28 ft in (1302 mm) |
| Height With Rops | 7.64 ft in (2326 mm) |
Engine
| Number Of Cylinders | 4 |
| Gross Power | 91 hp (67.9 kw) |
| Pto Power | 80 hp (59.7 kw) |
| Power Measured @ | 2300 rpm |
| Max Torque | 264.1 lb ft (358 Nm) |
| Torque Measured @ | 1400 rpm |
| Displacement | 238 cu in (3.9 L) |
| Aspiration | Turbocharged |
Operational
| Operating Weight | 6106.9 lb (2770 kg) |
| Fuel Capacity | 15 gal (56.7 L) |
| 3 Point Hitch Lift Capacity @ 24 Inches | 3962 lb (1797.2 kg) |
| Rear Tires Size 2wd/4wd | 380/70R24 |
| Alternator Supplied Amperage | 65 amps |
Transmission
| Transmission Type | 16 x 16 w/ mechanical shuttle |
| Number Of Forward Gears | 16 |
| Number Of Reverse Gears | 16 |
| Max Speed | 18.4 mph (29.5 km/h) |
Hydraulic System
| Relief Valve Setting | 2610 psi (17995.4 kPa) |
| Pump Flow Capacity | 23.4 gal/min (88.6 L/min) |
| Number Of Remote Control Valves | 2 |
