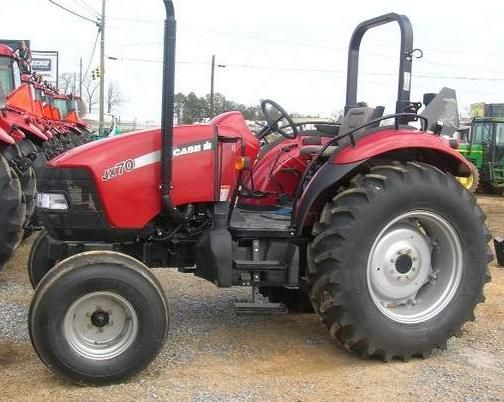

Case IH JX70
Browse All Case IH or MFWD Tractor Models
Contents:
Dimensions
| Wheelbase | 7 ft in (2133 mm) |
| Height With Rops | 8.09 ft in (2464 mm) |
Engine
| Number Of Cylinders | 3 |
| Gross Power | 62 hp (46.3 kw) |
| Pto Power | 52 hp (38.8 kw) |
| Power Measured @ | 2500 rpm |
| Displacement | 177 cu in (2.9 L) |
| Aspiration | Turbocharged |
Operational
| Operating Weight | 6365 lb (2887.2 kg) |
| Fuel Capacity | 23.8 gal (90 L) |
| 3 Point Hitch Lift Capacity @ 24 Inches | 4010 lb (1819 kg) |
| Rear Tires Size 2wd/4wd | 14.9 x 28 |
| Alternator Supplied Amperage | 85 amps |
Transmission
| Transmission Type | 12 x 12 w/mechanical shuttle |
| Number Of Forward Gears | 12 |
| Number Of Reverse Gears | 12 |
Hydraulic System
| Relief Valve Setting | 2755 psi (18995.1 kPa) |
| Pump Flow Capacity | 21.7 gal/min (82.2 L/min) |
